DESCRIPTION
UMA-1500 is an Industrial-Robot from Graal Tech. It is built for Material-Handling, Inspection. Key figures: 28 kg, 10 kg payload.

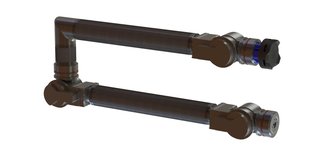

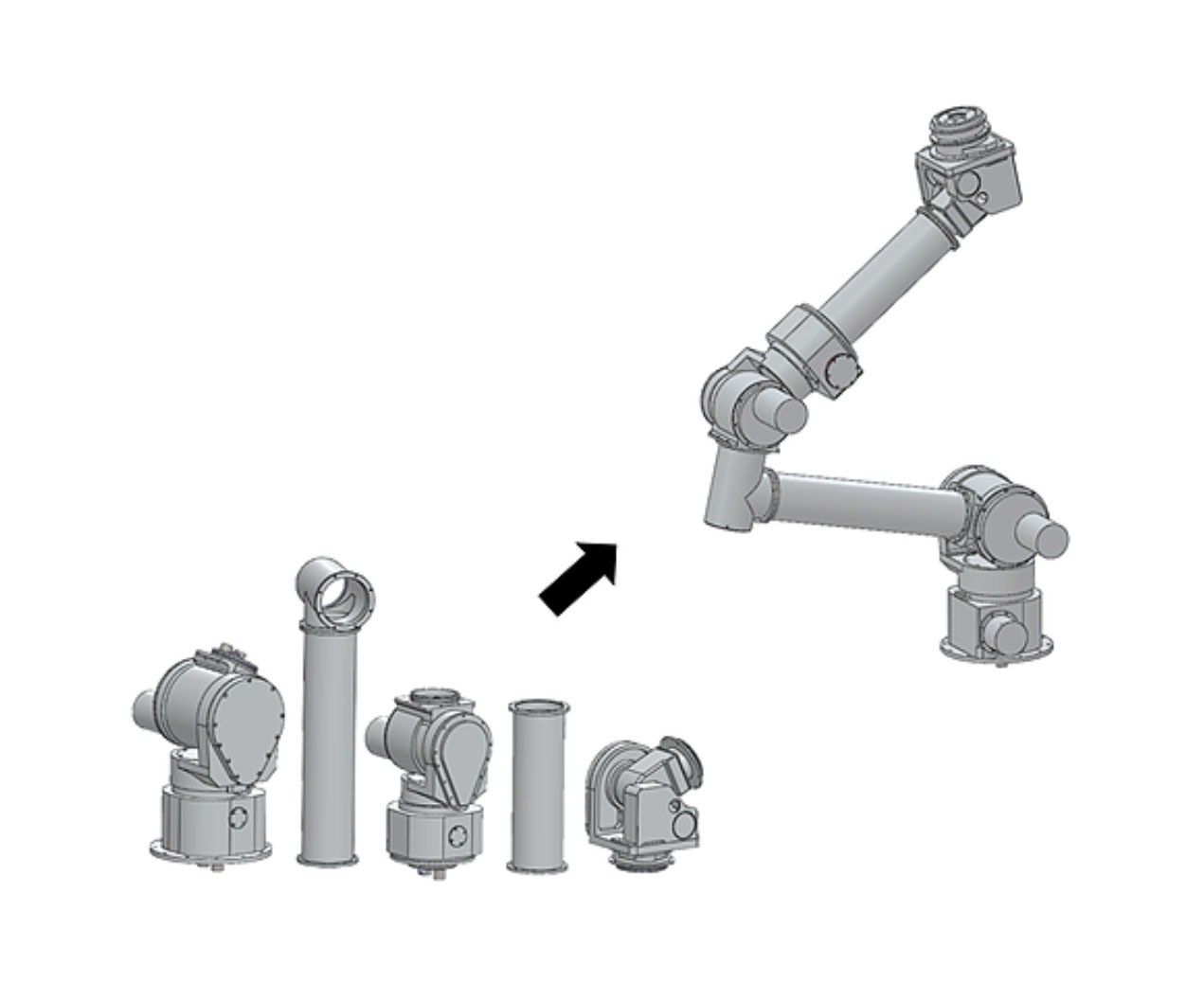

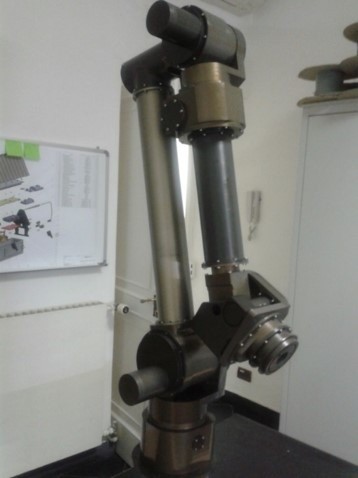

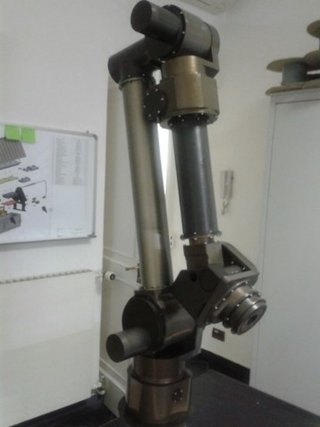

UMA-1500 is Graal Tech's modular underwater robotic manipulator for oil and gas, defence and security, oceanography and environmental monitoring. It is assembled from two kinds of basic modules made of Ergal aluminium alloy - joints, which provide motion, and links, the rigid bodies between them - all sharing the same mechatronic interface, so arms of different reach, number of axes and shape can be built and modules inserted, removed or replaced easily. Every joint contains one or two brushless motors driven by servo boards inside the structure, available in several sizes and gear ratios for the speed and torque required. The example configuration has six axes, is 2 m long, weighs 28 kg in air and 14 kg in water, lifts 10 kg in air and is rated to 1,500 m. Embedded servo boards run joint-level control at 200 Hz, high-resolution joint position sensors are standard and a wrist 6-axis force/torque sensor and wrist camera are optional, and it draws 200 to 500 W at 24 V. UMA-1500 is designed to be integrated on supporting vehicles such as ROVs, crawlers and Graal Tech's R-300.
FEATURES
- Modular underwater manipulator built from joint and link modules
- Ergal aluminium alloy construction
- Brushless motors with embedded servo boards in each joint
- Example: 6 axes, 2 m long, 28 kg in air / 14 kg in water
- Lifts 10 kg in air
- Depth rating 1,500 m
- Joint-level control at 200 Hz
- Optional wrist force/torque sensor and camera
- 24 V, 200-500 W

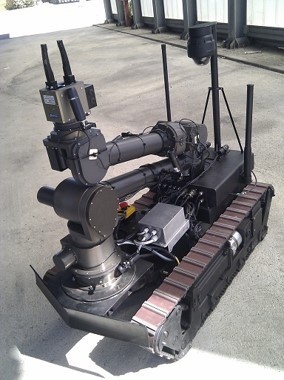

- Mounts on ROVs, crawlers and the R-300
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 28 kg |
|---|---|
| Dimensions | L 2 m |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Stationary |
| Environment | Underwater to 1,500 m, mounted on subsea vehicles |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 28 kg |
|---|---|
| Dimensions | L 2 m |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Stationary |
| Environment | Underwater to 1,500 m, mounted on subsea vehicles |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the UMA-1500?
UMA-1500 is Graal Tech's modular underwater robotic manipulator for oil and gas, defence and security, oceanography and environmental monitoring.
Who makes the UMA-1500?
The UMA-1500 is made by Graal Tech, a robotics company based in Italy.
How much does the UMA-1500 cost?
Graal Tech has not publicly announced pricing for the UMA-1500. You can enquire through RobotAIGeek for current pricing.
What is the UMA-1500 used for?
The UMA-1500 is designed for material-handling and inspection. It is used in defence, energy, and research settings.
What is the payload capacity of the UMA-1500?
The UMA-1500 has a payload capacity of 10 kg.
How much does the UMA-1500 weigh?
The UMA-1500 weighs 28 kg.
