proliner navi3

Mariner 3S

Cleaning-Robots

SwitzerlandReleased

★Not rated yet

Compare

Sources:

mariner-3s.com

Industries:

Others Cleaning & Facilities Hotels

Uses:

Cleaning

Price:

Not announced

Model:

Mariner 3S proliner navi3 pool cleaning robot with rotating brushes (Olympic pools)

Released:

2018

DESCRIPTION

proliner navi3 is a Cleaning-Robots from Mariner 3S. It is built for Cleaning. Key figures: 43 kg, released 2018.

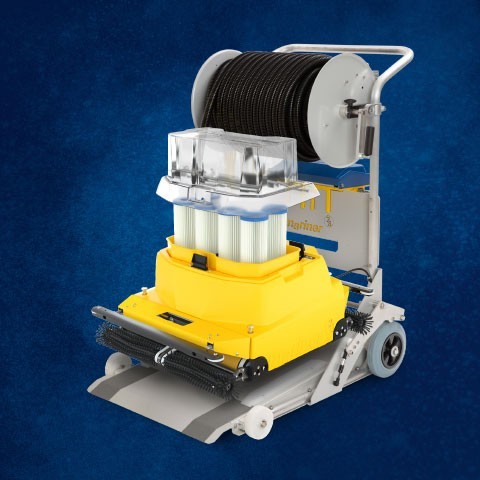

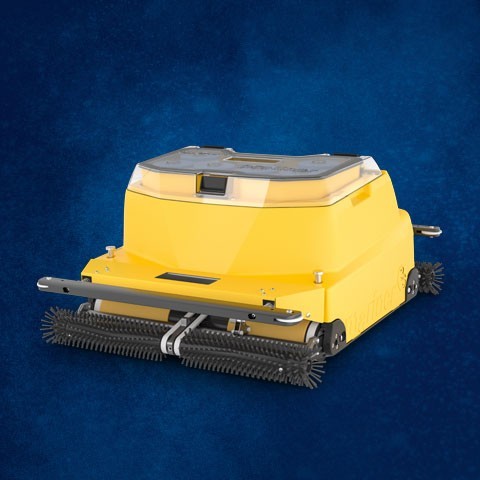

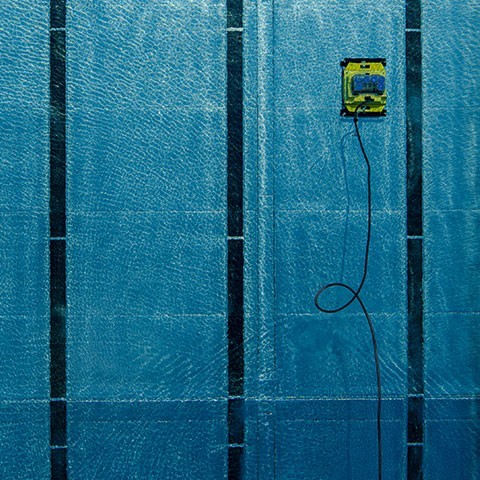

The proliner navi3 is Mariner 3S's top pool-cleaning robot for Olympic pools, adventure parks and pools from 400 m2, built for hard daily use. Rotating brushes at the front and rear, with bristles of different lengths that reach into joints, plus four corner brushes for edges and corners, work together with over 20 kg of suction from an 850 l/min pump; it cleans an Olympic pool in about 2.5 hours. A high-tech sensor and patented drive programme let it clean lane by lane in H, N and X patterns or a defined sector, bypass obstacles such as water mushrooms without winding its cable, switch before diving pits and shut itself off when done. Six lamella cartridges give up to 6 m2 of filter area, and with large filters it rises to the surface on its own after cleaning. The 43 kg robot travels at 7.5-18 m/min on up to 50 m of floating cable and replaced the earlier navigator II and topliner models.

FEATURES

Olympic pools, water parks and pools from 400 m2
cleans an Olympic pool in about 2.5 h

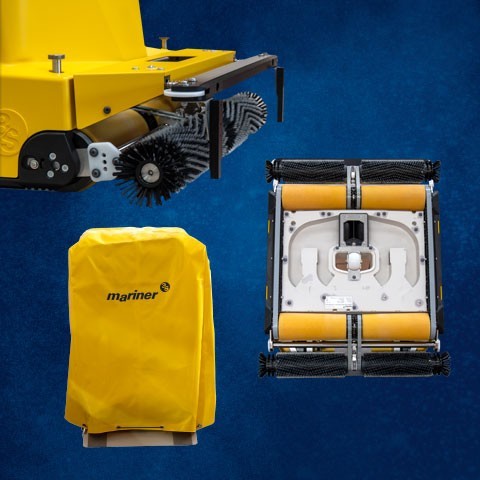

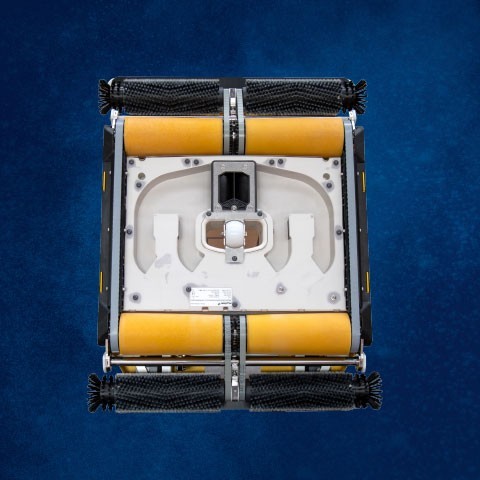

Rotating front and rear brushes plus 4 corner brushes
Robot 83 x 61 x 52 cm (W x L x H), 43 kg
trolley with cable drum 62 kg
Cleaning width up to 700 mm
pump 850 l/min
suction over 20 kg
6 lamella filter cartridges, up to 6 m2 filter area
automatic re-surfacing (small-filter option without)
High-tech sensor: H, N, X patterns, sector cleaning, obstacle bypass, auto shut-off
Travelling speed 7.5-18 m/min
climbs 28 deg
24 V DC robot, 0.5 kW supply
floating cable 30/40/50 m
Manual control by radio remote or Mariner 3S app: forward, back, turn, spin on the spot, 3 speeds
keypad emergency operation
Automatic switch-over on wall contact, after a set distance and on inclines
start-delay timer
up to 4 stored programmes
Works in fresh, sea, thermal and brine water
water temperature 10-40 deg C
IP68

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	43 kg
Dimensions	L 610 mm × W 830 mm × H 520 mm
Mobility
Movement Type	Aquatic
Speed	1.08 km/h
Environment	Public and private swimming pools: indoor, outdoor, thermal and natural pools
Sensing & Compute
Sensors	drive-pattern / obstacle sensor (basic or high-tech, model dependent), incline detection
Connectivity	Radio remote control (869/433 MHz); Bluetooth app on plus / sensor models
