DESCRIPTION
proliner tube is a Cleaning-Robots from Mariner 3S. It is built for Cleaning. Key figures: 37 kg, released 2019.
The proliner tube is Mariner 3S's answer for very heavily soiled pools, where onboard filters would clog almost at once. Instead of a filter box it has a special 230 V pump that sends the dirty water out of the pool through a hose with a Storz coupling, to be filtered outside the pool or discharged to waste. Fitted as standard with the basic sensor, it cleans lane by lane in H, N and X patterns, switches before diving pits and in beach pools, bypasses obstacles and can clean sections, working in water from 20-30 cm to 7 m deep. The 37 kg robot pumps 200-400 l/min depending on the hose, cleans a track up to 700 mm wide and travels at 7.5-18 m/min on a floating cable of 30 or 40 m.
FEATURES
- No onboard filter box: dirty water pumped out via hose (1.5 in Storz K66 coupling)

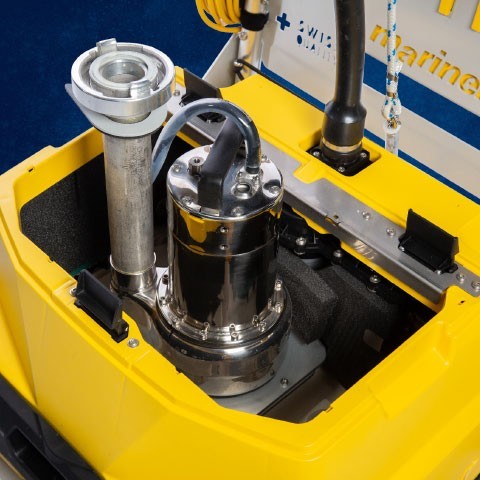

- Special 230 V pump
- 200-400 l/min depending on hose length, diameter and lift
- Robot 37 kg
- trolley with cable 45 kg
- Cleaning width up to 700 mm
- travelling speed 7.5-18 m/min
- Basic sensor: H, N, X patterns, obstacle bypass, section cleaning
- Water depth 20-30 cm to 7 m
- supply 230 V AC, 8 A
- floating cable 30/40 m
- Manual control by radio remote or Mariner 3S app: forward, back, turn, spin on the spot, 3 speeds
- keypad emergency operation
- Automatic switch-over on wall contact, after a set distance and on inclines
- start-delay timer
- up to 4 stored programmes
- Works in fresh, sea, thermal and brine water
- water temperature 10-40 deg C
- IP68
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 37 kg |
|---|---|
| Dimensions | L 600 mm × W 550 mm × H 500 mm |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 1.08 km/h |
| Environment | Public and private swimming pools: indoor, outdoor, thermal and natural pools |
| Sensing & Compute | |
| Sensors | drive-pattern / obstacle sensor (basic or high-tech, model dependent), incline detection |
| Connectivity | Radio remote control (869/433 MHz); Bluetooth app on plus / sensor models |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 37 kg |
|---|---|
| Dimensions | L 600 mm × W 550 mm × H 500 mm |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 1.08 km/h |
| Environment | Public and private swimming pools: indoor, outdoor, thermal and natural pools |
| Sensing & Compute | |
| Sensors | drive-pattern / obstacle sensor (basic or high-tech, model dependent), incline detection |
| Connectivity | Radio remote control (869/433 MHz); Bluetooth app on plus / sensor models |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the proliner tube?
The proliner tube is Mariner 3S's answer for very heavily soiled pools, where onboard filters would clog almost at once. Instead of a filter box it has a special 230 V pump that sends the dirty water out of the pool through a hose with a Storz coupling, to be filtered outside the pool or discharged to waste.
Who makes the proliner tube?
The proliner tube is made by Mariner 3S, a robotics company based in Switzerland.
How much does the proliner tube cost?
Mariner 3S has not publicly announced pricing for the proliner tube. You can enquire through RobotAIGeek for current pricing.
What is the proliner tube used for?
The proliner tube is designed for cleaning. It is used in others, cleaning & facilities, and hotels settings.
How much does the proliner tube weigh?
The proliner tube weighs 37 kg.
How fast is the proliner tube?
The proliner tube can move at speeds of up to 1.08 km/h.
When was the proliner tube released?
The proliner tube was released in 2019.
