DESCRIPTION
NANO E is an Industrial-Robot from IMS Robotics. It is built for Cleaning, Inspection, Remote. Key figures: 210 min runtime.

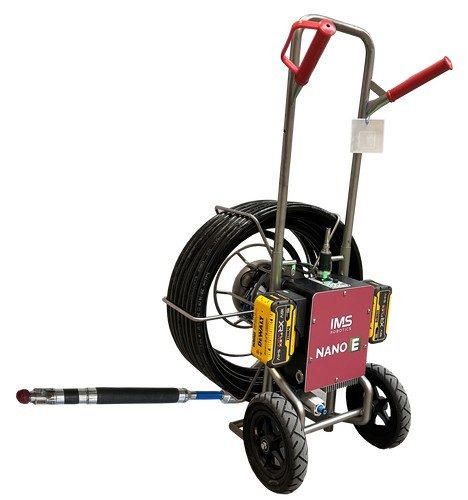

The NANO E is a compact, electrically powered milling robot developed for in-house pipes of small nominal width, from DN 70 to DN 100 inside diameter. IMS Robotics presents it as an entry point for users moving up from smaller systems to more powerful machines, and it can mill even in difficult 90-degree bends from DN 75, including in lined pipe. Light and mobile enough for one person to carry and fit in a car boot, it runs either on two exchangeable 270 Wh batteries, giving an average 3.5 to 4 hours of operation, or on mains power. The air-cooled milling drive comes with rotary drive and axial feed or a tensioning bladder, an integrated colour camera with LED lighting and air or water cleaning, a 30 m or 50 m hose package and an ergonomic control unit.
FEATURES
- Usable in pipes DN 70 to DN 100 inside diameter
- 90-degree bendability in DN 75 (also in liner)
- Battery 2 x 270 Wh exchangeable
- average 3.5-4 h runtime
- mains operation possible
- Air-cooled milling motor with rotary drive and axial feed or tensioning bladder
- Integrated colour camera with LED
- camera cleaning with air and water
- 30 m or 50 m hose package

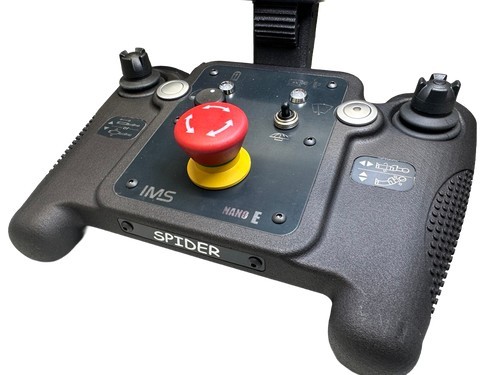

- ergonomic control unit
- Portable by one person (fits a car boot)
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Snake-like |
|---|---|
| Environment | Inside house-connection (lateral) sewer pipes, including 90-degree bends |
| Power | |
| Battery Life | 210 min |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting |
| Connectivity | Wired (umbilical supply hose / cable) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Snake-like |
|---|---|
| Environment | Inside house-connection (lateral) sewer pipes, including 90-degree bends |
| Power | |
| Battery Life | 210 min |
| Sensing & Compute | |
| Sensors | colour camera with LED lighting |
| Connectivity | Wired (umbilical supply hose / cable) |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the NANO E?
The NANO E is a compact, electrically powered milling robot developed for in-house pipes of small nominal width, from DN 70 to DN 100 inside diameter.
Who makes the NANO E?
The NANO E is made by IMS Robotics, a robotics company based in Germany.
How much does the NANO E cost?
IMS Robotics has not publicly announced pricing for the NANO E. You can enquire through RobotAIGeek for current pricing.
What is the NANO E used for?
The NANO E is designed for cleaning, inspection, and remote. It is used in cleaning & facilities and construction settings.
What is the battery life of the NANO E?
The NANO E runs for about 210 minutes on a charge.
