DESCRIPTION

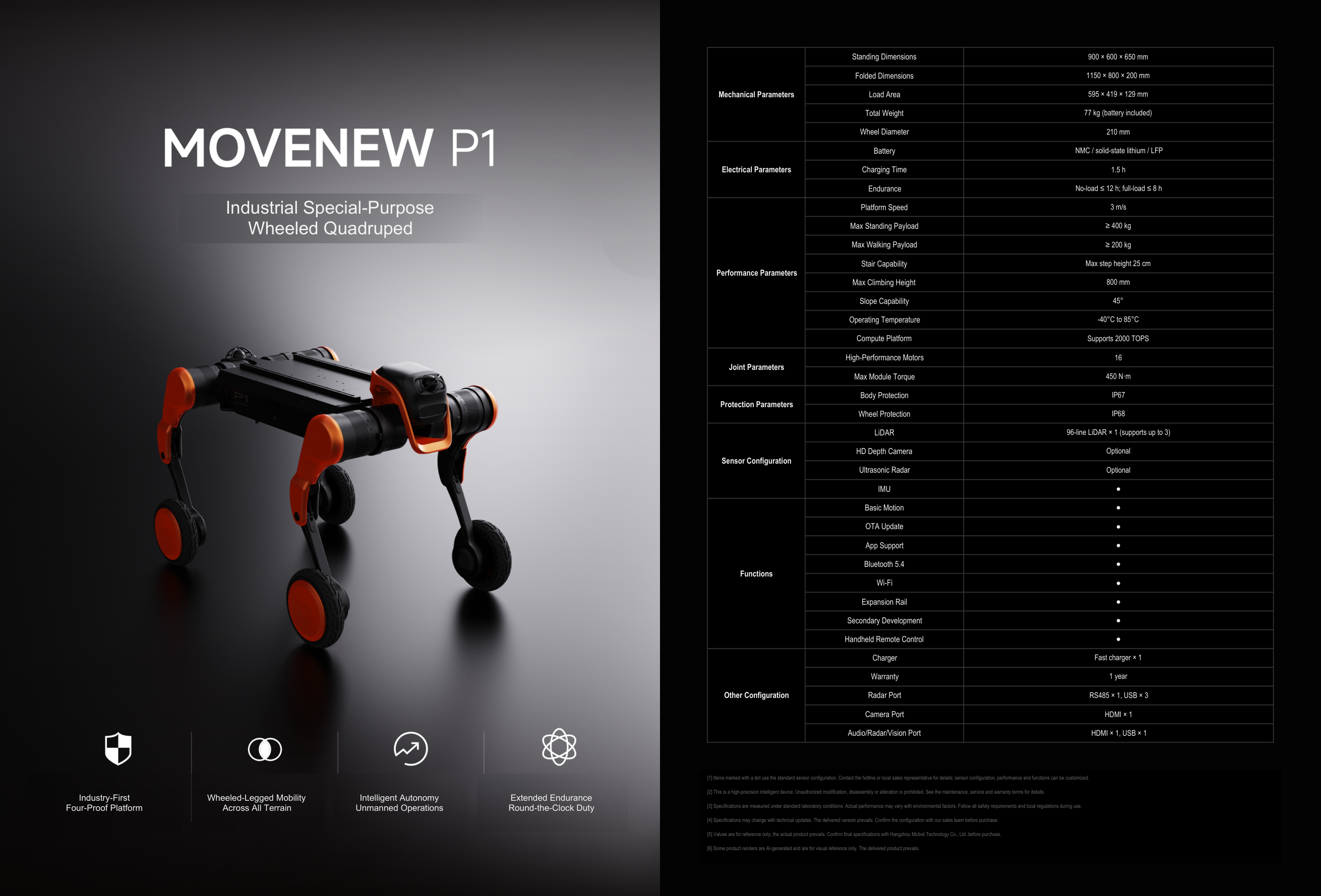

The MOVENEW P1 is Micbot's industrial special-purpose wheeled quadruped, and its headline is payload: 400 kg standing and 200 kg walking on a 77 kg body, which comes from a deliberately wide-body, short-leg architecture and sixteen joint modules peaking at 450 N·m. Wheels on articulated legs let it roll at 3 m/s where the ground allows and walk where it does not, clearing 25 cm steps, 800 mm obstacles and slopes beyond 45 degrees. Protection is the other half of the pitch — IP67 body with IP68 wheels, built for petrochemical plants, mines and aluminium facilities. A hot-swappable 3.2 kWh nickel-cobalt-manganese pack on 72 V runs 12 hours unloaded or 8 under full load and recharges in 90 minutes, so a swap keeps it working around the clock. Perception centres on an automotive-grade 96-line LiDAR, expandable to three units, with optional depth cameras and ultrasonic radar and an onboard IMU, and the compute platform supports up to 2,000 TOPS. An expansion rail, three USB and an RS485 radar port, plus HDMI for camera and audio-vision, leave room for mission payloads on top.
FEATURES
- 400 kg maximum standing payload and 200 kg walking payload on a 77 kg body
- 16 high-performance joint modules at up to 450 N·m
- 3 m/s platform speed with 25 cm stair climbing, 800 mm maximum climbing height and slopes beyond 45 degrees
- hot-swappable 3.2 kWh NMC battery at 72 V, 12 hours no-load and 8 hours full-load endurance, 1.5-hour charge
- folds from 900 x 600 x 650 mm standing to 1150 x 800 x 200 mm with a 595 x 419 x 129 mm load area
- IP67 body with IP68 wheel protection
- compute platform supporting up to 2,000 TOPS
- automotive-grade 96-line LiDAR expandable to three units, with optional HD depth camera and ultrasonic radar plus IMU
- Bluetooth 5.4, Wi-Fi, OTA update, app support and handheld remote control
- expansion rail and secondary development
- RS485 and triple USB radar port, HDMI camera port, HDMI and USB audio-vision port
- one-year warranty with fast charger.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 77 kg |
|---|---|
| Dimensions | L 900 mm × W 600 mm × H 650 mm |
| Payload | 200 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Speed | 10.8 km/h |
| Manipulation | Low |
| Environment | Hazardous industrial sites; IP67 body and IP68 wheels; 25 cm stair height, 800 mm maximum climbing height, slope beyond 45°, IP67 body, IP68 wheels, -40°C to 55°C |
| Actuators | 16 high-performance joint modules, maximum module torque 450 N·m; wheel-legged quadruped on 210 mm wheels; wide-body short-leg architecture |
| Power | |
| Battery Life | <=12 h no-load, <=8 h full-load |
| Charging Type | Fast charger; hot-swappable battery |
| Charging Time | 1.5 h |
| Sensing & Compute | |
| Sensors | automotive-grade 96-line LiDAR x1, expandable to 3, optional HD depth camera, optional ultrasonic radar, IMU |
| Connectivity | Bluetooth 5.4 and Wi-Fi; RS485 x1 and USB x3 radar port; HDMI x1 camera port; HDMI x1 and USB x1 audio-vision port |
| Software / AI | Integrated sensing, planning, control and drive platform; OTA update; app support; secondary development |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 77 kg |
|---|---|
| Dimensions | L 900 mm × W 600 mm × H 650 mm |
| Payload | 200 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Speed | 10.8 km/h |
| Manipulation | Low |
| Environment | Hazardous industrial sites; IP67 body and IP68 wheels; 25 cm stair height, 800 mm maximum climbing height, slope beyond 45°, IP67 body, IP68 wheels, -40°C to 55°C |
| Actuators | 16 high-performance joint modules, maximum module torque 450 N·m; wheel-legged quadruped on 210 mm wheels; wide-body short-leg architecture |
| Power | |
| Battery Life | <=12 h no-load, <=8 h full-load |
| Charging Type | Fast charger; hot-swappable battery |
| Charging Time | 1.5 h |
| Sensing & Compute | |
| Sensors | automotive-grade 96-line LiDAR x1, expandable to 3, optional HD depth camera, optional ultrasonic radar, IMU |
| Connectivity | Bluetooth 5.4 and Wi-Fi; RS485 x1 and USB x3 radar port; HDMI x1 camera port; HDMI x1 and USB x1 audio-vision port |
| Software / AI | Integrated sensing, planning, control and drive platform; OTA update; app support; secondary development |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOVENEW P1?
The MOVENEW P1 is Micbot's industrial special-purpose wheeled quadruped, and its headline is payload: 400 kg standing and 200 kg walking on a 77 kg body, which comes from a deliberately wide-body, short-leg architecture and sixteen joint modules peaking at 450 N·m.
Who makes the MOVENEW P1?
The MOVENEW P1 is made by MICBOT, a robotics company based in China.
How much does the MOVENEW P1 cost?
MICBOT has not publicly announced pricing for the MOVENEW P1. You can enquire through RobotAIGeek for current pricing.
What is the MOVENEW P1 used for?
The MOVENEW P1 is designed for inspection, patrol, petrochemical plant inspection, and mining operations. It is used in energy, mining, manufacturing, and security & patrol settings.
What is the payload capacity of the MOVENEW P1?
The MOVENEW P1 has a payload capacity of 200 kg.
How much does the MOVENEW P1 weigh?
The MOVENEW P1 weighs 77 kg.
How fast is the MOVENEW P1?
The MOVENEW P1 can move at speeds of up to 10.8 km/h.
What is the battery life of the MOVENEW P1?
The MOVENEW P1 runs for <=12 h no-load, <=8 h full-load on a charge. It takes 1.5 h to charge.
