DESCRIPTION
MOBOT TRANSPORTER T5 is an Industrial-Robot from WObit. It is built for Intralogistics, Material-Handling, Transport. Key figures: 130 kg, 480 min runtime, 500 kg payload.

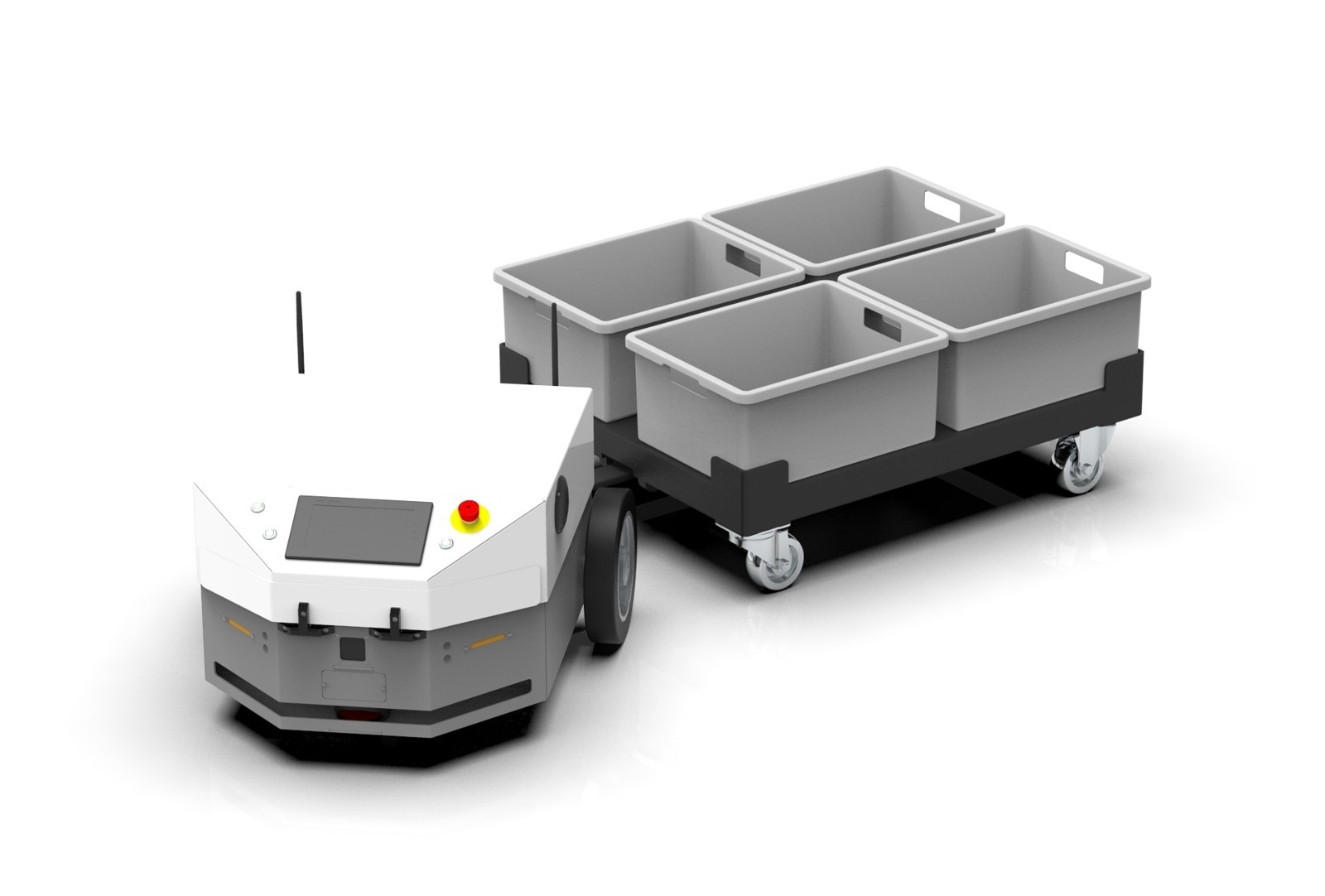

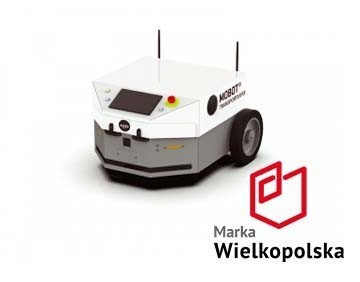

The MOBOT TRANSPORTER T5 is WObit's compact tugger robot: it pulls carts with a replaceable rear hitch, with a permissible total load of 500 kg, at up to 5.65 km/h, and turns on the spot on two brushless servo motors with 250 mm wheels. A standard 20 Ah/48 V lithium-ion pack (optionally 30 or 40 Ah) gives about 8 hours at full load and recharges in about 1 hour on the optional 20 A charger or 4 hours on the standard 5 A charger, with an optional contact module for automatic charging. It navigates with LMS laser navigation plus a camera that recognises tags for precise positioning, can be driven manually from a PC or Android device, and is rated IP65 for 5-45 C. The robot measures 685 x 674 x 418 mm (732 mm wide with the alternative drive wheels) and weighs about 130 kg.
FEATURES
- Tows carts: permissible total load 500 kg
- Max speed 5.65 km/h
- 1.5 kW
- turns on the spot
- Li-ion 20 Ah/48 V (optional 30/40 Ah)
- about 8 h at full load
- Charging about 1 h (20 A) / 4 h (5 A)
- optional automatic contact charging
- LMS laser navigation + tag-recognition camera
- manual PC/Android control
- IP65
- 5-45 C
- Size 685 x 674/732 x 418 mm
- about 130 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 130 kg |
|---|---|
| Dimensions | L 685 mm × W 674 mm × H 418 mm |
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.65 km/h |
| Environment | Indoor plants and warehouses; 5-45 C; IP65, 5°C to 45°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2D navigation laser scanner with safety function, camera for tag recognition |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 130 kg |
|---|---|
| Dimensions | L 685 mm × W 674 mm × H 418 mm |
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.65 km/h |
| Environment | Indoor plants and warehouses; 5-45 C; IP65, 5°C to 45°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2D navigation laser scanner with safety function, camera for tag recognition |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOBOT TRANSPORTER T5?
The MOBOT TRANSPORTER T5 is WObit's compact tugger robot: it pulls carts with a replaceable rear hitch, with a permissible total load of 500 kg, at up to 5.65 km/h, and turns on the spot on two brushless servo motors with 250 mm wheels.
Who makes the MOBOT TRANSPORTER T5?
The MOBOT TRANSPORTER T5 is made by WObit, a robotics company based in Poland.
How much does the MOBOT TRANSPORTER T5 cost?
WObit has not publicly announced pricing for the MOBOT TRANSPORTER T5. You can enquire through RobotAIGeek for current pricing.
What is the MOBOT TRANSPORTER T5 used for?
The MOBOT TRANSPORTER T5 is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MOBOT TRANSPORTER T5?
The MOBOT TRANSPORTER T5 has a payload capacity of 500 kg.
How much does the MOBOT TRANSPORTER T5 weigh?
The MOBOT TRANSPORTER T5 weighs 130 kg.
How fast is the MOBOT TRANSPORTER T5?
The MOBOT TRANSPORTER T5 can move at speeds of up to 5.65 km/h.
What is the battery life of the MOBOT TRANSPORTER T5?
The MOBOT TRANSPORTER T5 runs for about 480 minutes on a charge.
