MOBOT AGV FlatRunner HT

DESCRIPTION

MOBOT AGV FlatRunner HT is an Industrial-Robot from WObit. It is built for Intralogistics, Material-Handling, Transport. Key figures: 220 kg, 480 min runtime, 500 kg payload.

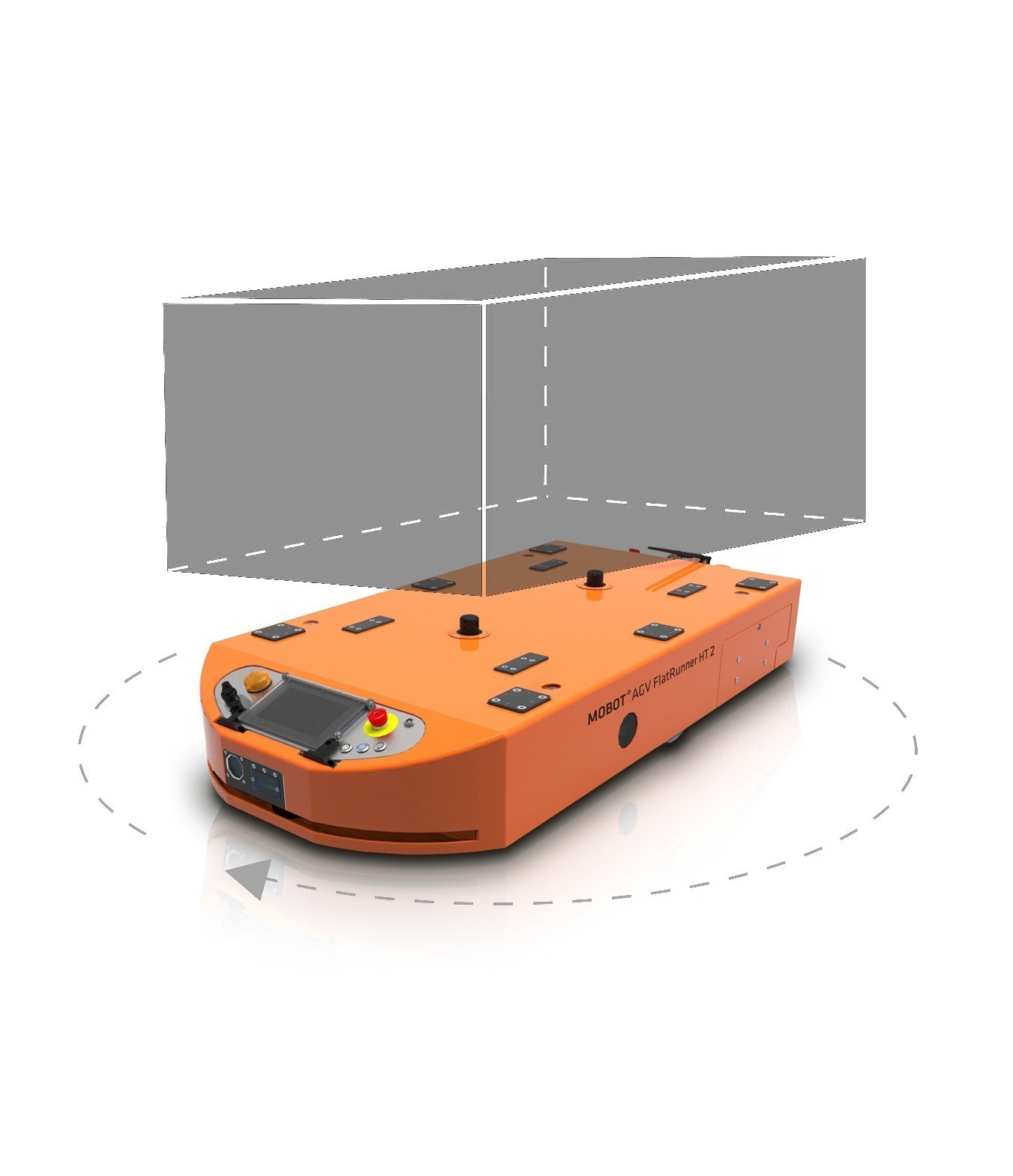

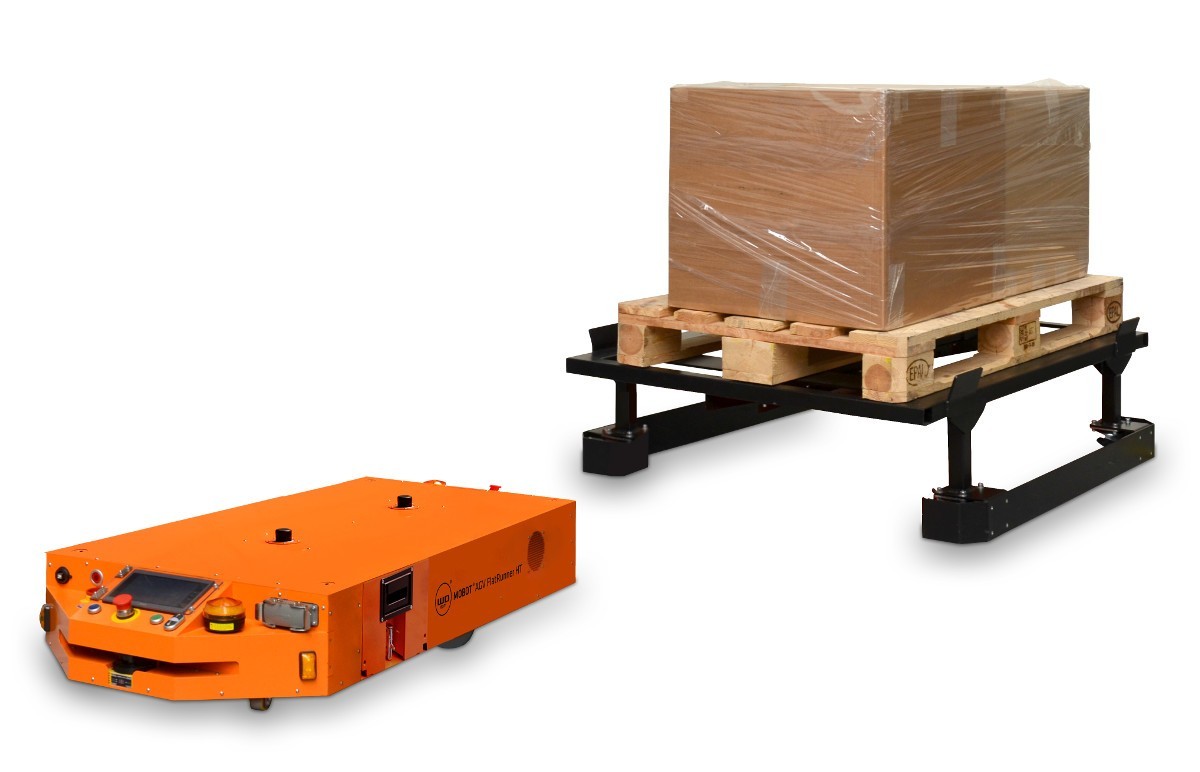

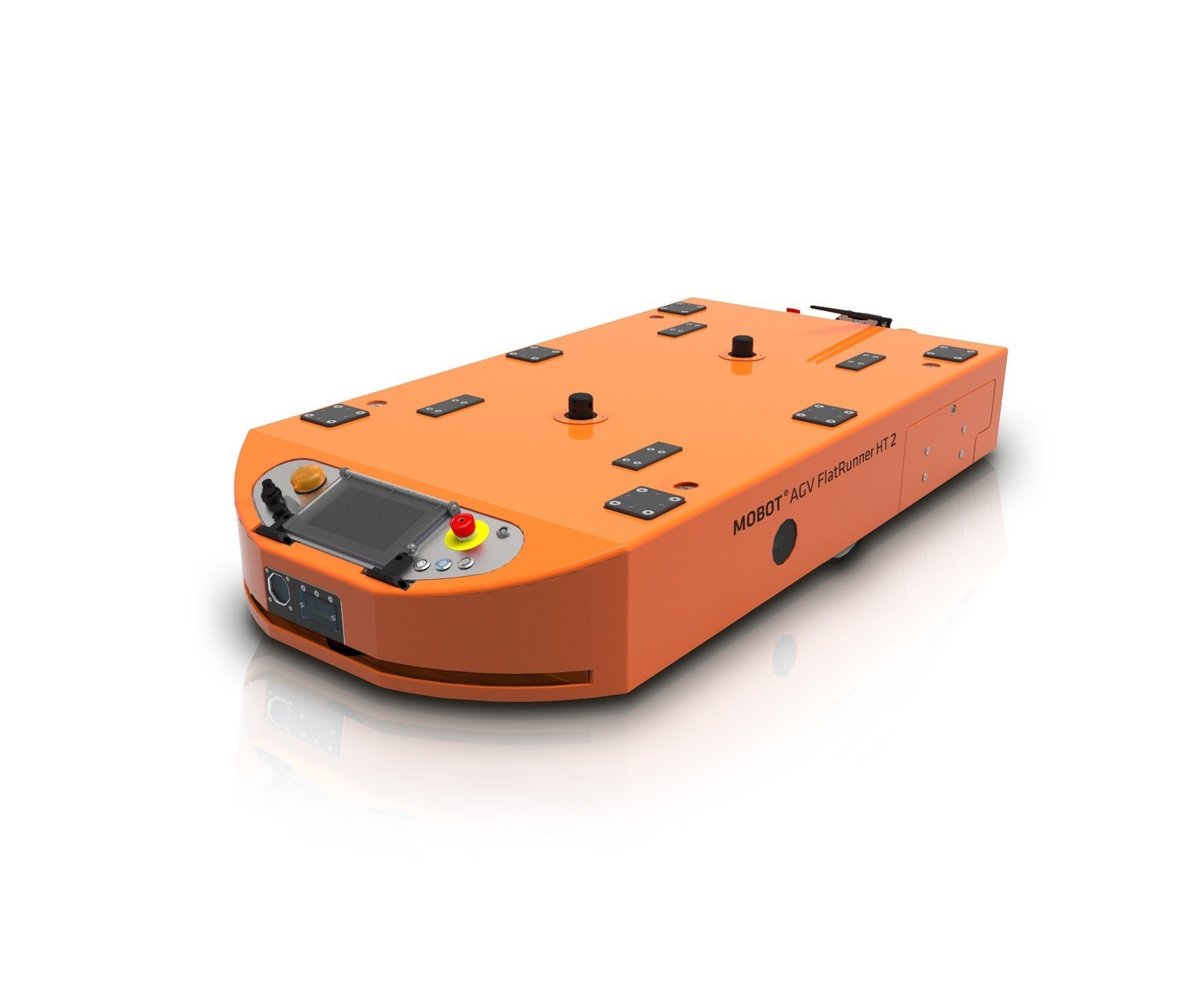

The MOBOT AGV FlatRunner HT is WObit's low-profile robot for moving pallets and heavy loads: only 239 mm high, it drives under a cart and attaches with two automatic pins, moving up to 500 kg in total. Two 85 Ah/12 V traction batteries in a quick-change cassette give about 8 hours at full load and recharge in about 3 hours, with optional charging station and automatic contact charging. It navigates with WObit's LMS laser mapping system - building a map of its surroundings and locating itself on characteristic points such as walls, without reflectors or floor markings - combined with a vision system that can follow a line and position the robot precisely; missions are configured in the MOBOT RoutePlanner software and dispatched from a control terminal over 2.4 GHz Wi-Fi, with Ethernet/Modbus TCP and other I/O for integration. Safety laser scanners make it slow down or stop for obstacles, and a touch operator panel, emergency stops and light and sound signals support work alongside people. It drives at up to 3 km/h on two BLDC motors with 215 mm wheels, uses two line-tracking vision systems and two safety laser scanners, is rated IP30 for 5-45 C, measures 1,600 x 750 x 239 mm and weighs about 220 kg.
