DESCRIPTION

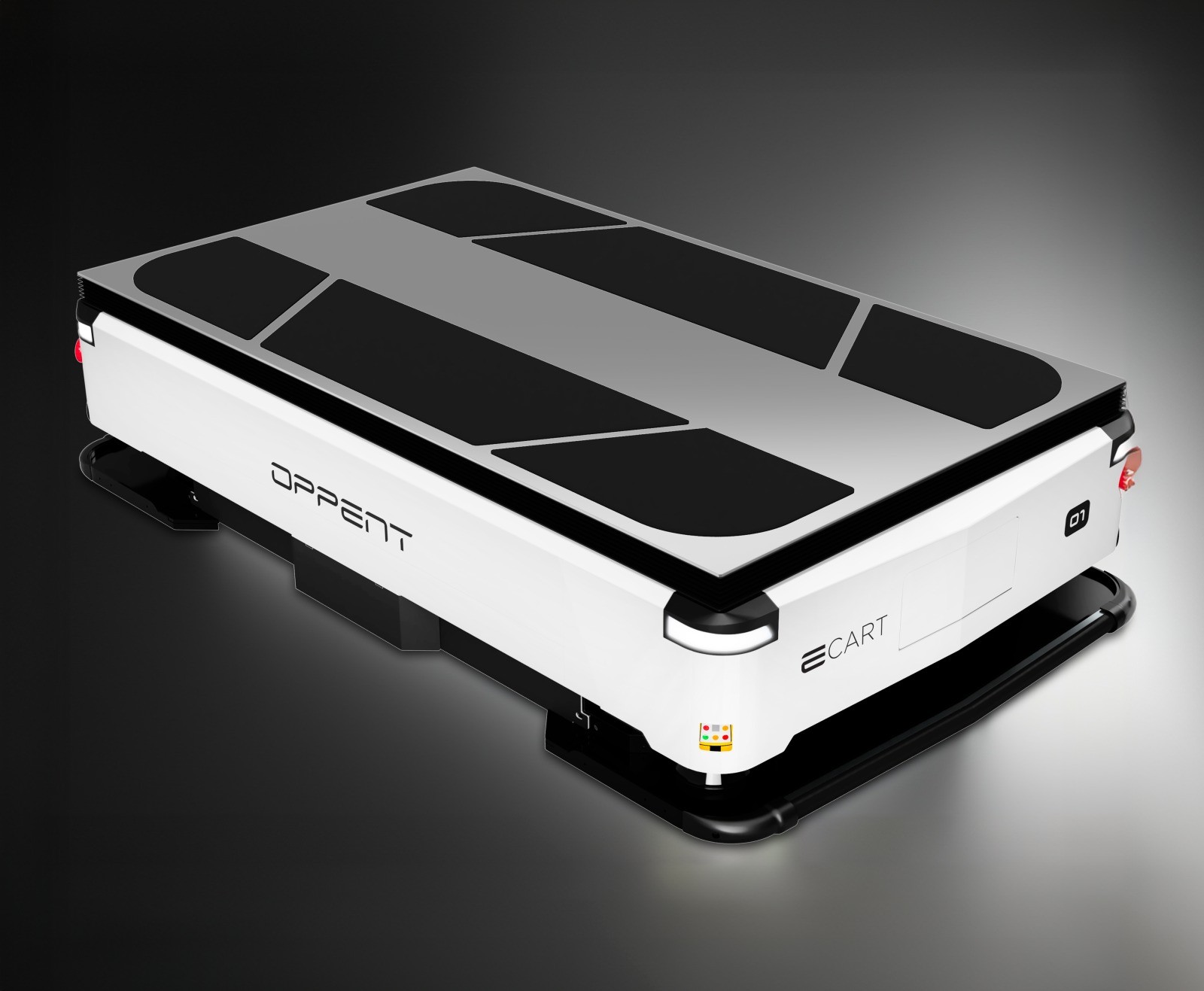

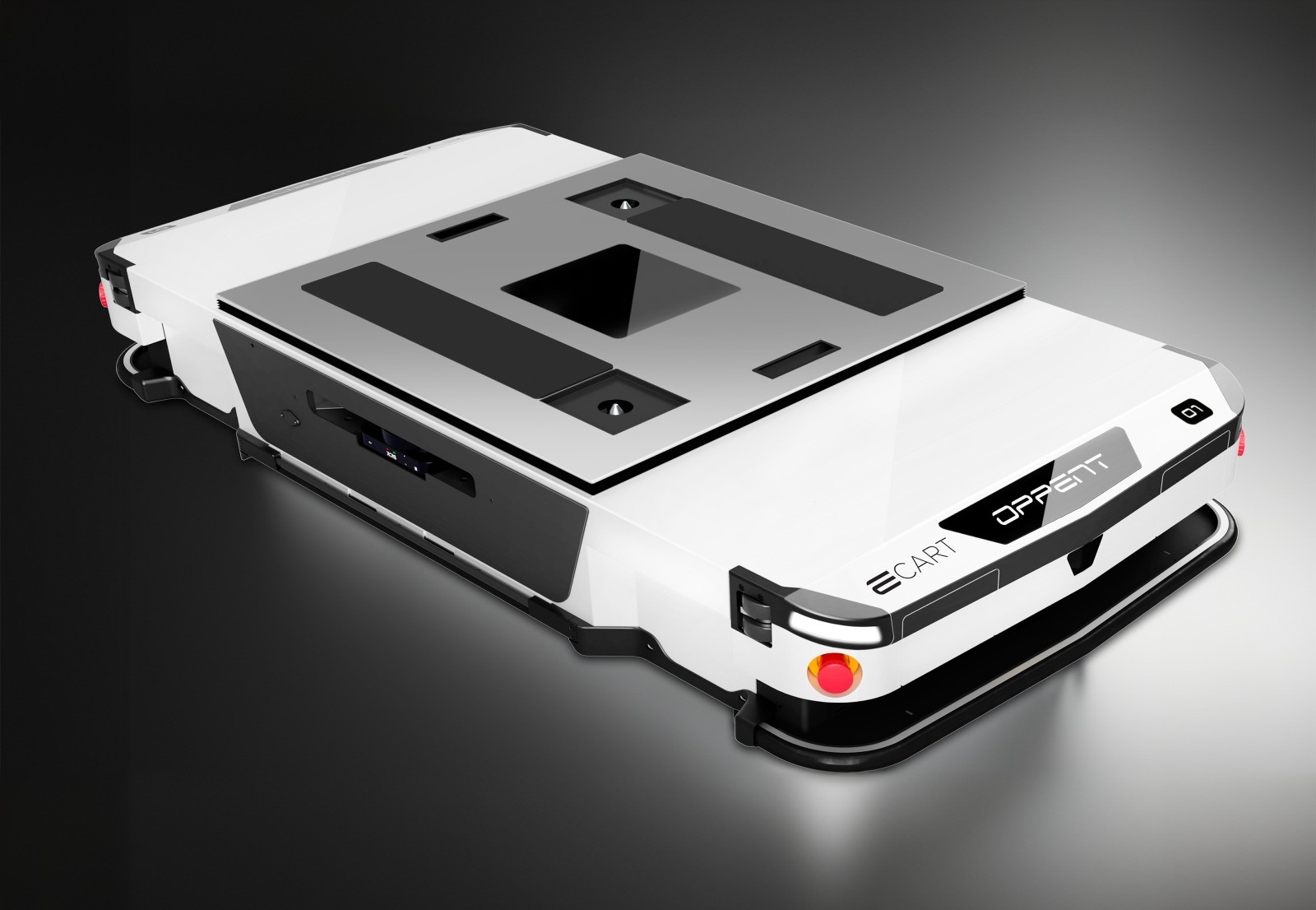

ECART 7 / ECART 10 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 280 kg, 600 min runtime, 500 kg payload.
ECART 7 / ECART 10 is a model in Oppent's ECART family of autonomous mobile robots, built in Italy. Four driven wheels make it omnidirectional, and besides lifting 500 kg (700 kg maximum) it can tow up to 1,200 kg. Oppent lists ECART 7 and ECART 10 as two models with the same datasheet values; ECART 10 is shown in industrial use.\nPer its datasheet it measures 1,656 x 910 x 275 mm, weighs 280 kg without batteries and carries 500 kg nominal (700 kg maximum) on lift platform 1,100 x 750 mm, 100 mm stroke. It uses QUOD omnidirectional drive (4 x 600 W), travels at up to 1.2 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 10 hours on a Lithium NMC 2 x 24 V 64 Ah battery with 2.5 h recharge. Safety comes from 2 Sick S300 (PLd) and 2 Sick Scangrid2 (PLc) laser scanners, 2 e-stops, Sick Flexi safety controller, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.
FEATURES
- Nominal payload 500 kg
- maximum 700 kg
- Equipment: lift platform 1,100 x 750 mm, 100 mm stroke
- Size 1,656 x 910 x 275 mm
- 280 kg without batteries
- Drive: QUOD omnidirectional drive (4 x 600 W)
- max speed 1.2 m/s
- slopes up to 3%
- Battery: Lithium NMC 2 x 24 V 64 Ah
- about 10 h autonomy, 2.5 h recharge
- Safety: 2 Sick S300 (PLd) and 2 Sick Scangrid2 (PLc) laser scanners, 2 e-stops, Sick Flexi safety controller
- Can tow up to 1,200 kg
- Natural navigation by laser scanner (odometric closed loop)
- map acquired automatically by the robot
- Positioning accuracy +/-10 mm and +/-1 deg
- turns on its own axis
- Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
- Indoor use +5 to 35 C, 30-80% RH
- IP degree 13 (datasheet)
- Stainless steel (AISI 304) chassis
- complies with Machinery Directive and ISO 3691-4:2020
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 280 kg |
|---|---|
| Dimensions | L 1.66 m × W 910 mm × H 275 mm |
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses (+5 to 35 C) |
| Power | |
| Battery Life | 600 min |
| Sensing & Compute | |
| Sensors | Sick laser scanners (navigation and safety), sensitive safety edges |
| Connectivity | Wi-Fi 802.11a/b/g/n (2.4/5 GHz) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 280 kg |
|---|---|
| Dimensions | L 1.66 m × W 910 mm × H 275 mm |
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses (+5 to 35 C) |
| Power | |
| Battery Life | 600 min |
| Sensing & Compute | |
| Sensors | Sick laser scanners (navigation and safety), sensitive safety edges |
| Connectivity | Wi-Fi 802.11a/b/g/n (2.4/5 GHz) |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the ECART 7 / ECART 10?
ECART 7 / ECART 10 is a model in Oppent's ECART family of autonomous mobile robots, built in Italy. Four driven wheels make it omnidirectional, and besides lifting 500 kg (700 kg maximum) it can tow up to 1,200 kg.
Who makes the ECART 7 / ECART 10?
The ECART 7 / ECART 10 is made by Oppent, a robotics company based in Italy.
How much does the ECART 7 / ECART 10 cost?
Oppent has not publicly announced pricing for the ECART 7 / ECART 10. You can enquire through RobotAIGeek for current pricing.
What is the ECART 7 / ECART 10 used for?
The ECART 7 / ECART 10 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the ECART 7 / ECART 10?
The ECART 7 / ECART 10 has a payload capacity of 500 kg.
How much does the ECART 7 / ECART 10 weigh?
The ECART 7 / ECART 10 weighs 280 kg.
How fast is the ECART 7 / ECART 10?
The ECART 7 / ECART 10 can move at speeds of up to 4.32 km/h.
What is the battery life of the ECART 7 / ECART 10?
The ECART 7 / ECART 10 runs for about 600 minutes on a charge.
