DESCRIPTION
MOBOT AGV eRunner is an Industrial-Robot from WObit. It is built for Intralogistics, Material-Handling, Transport. Key figures: 60 kg, 480 min runtime, 100 kg payload.

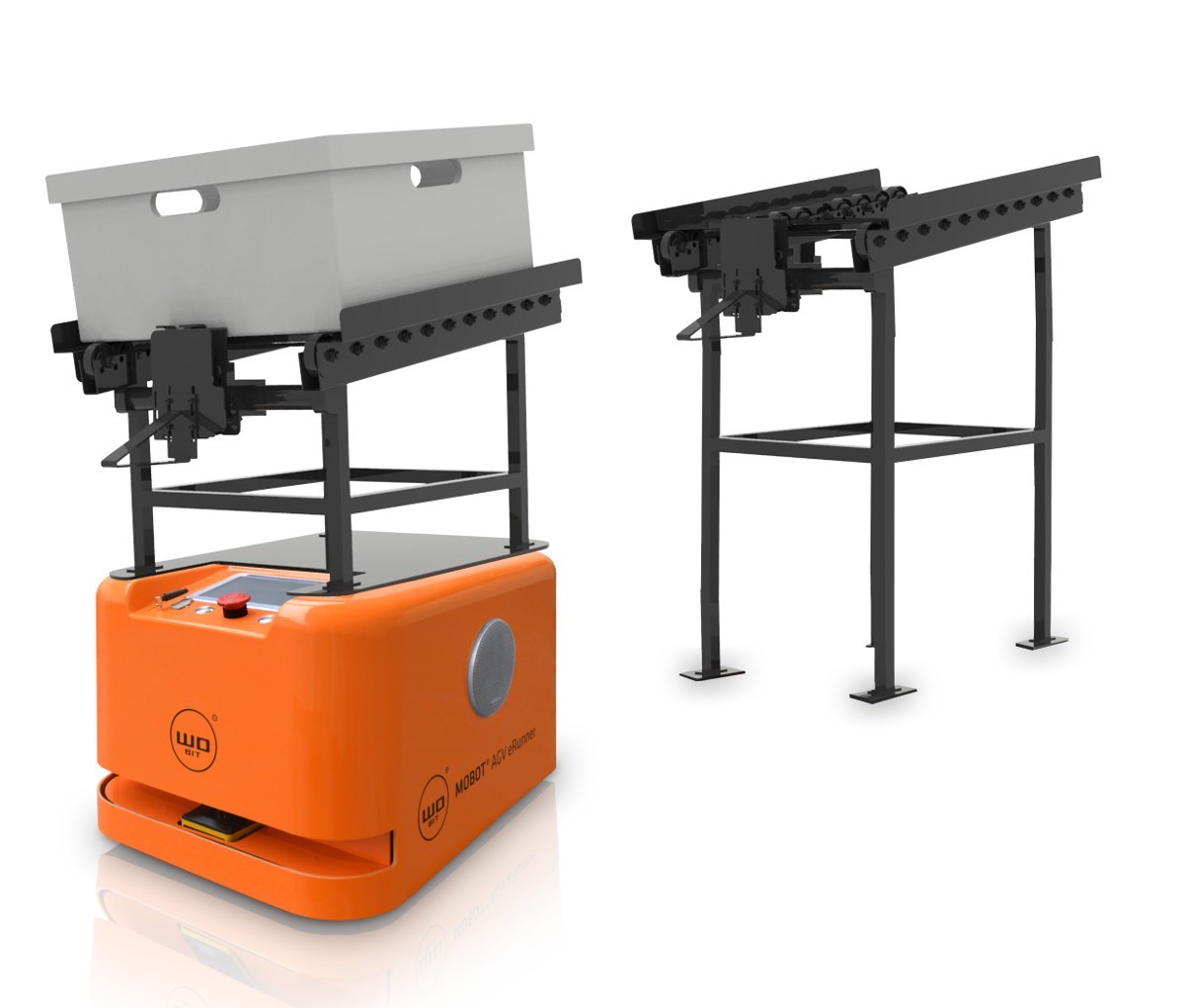

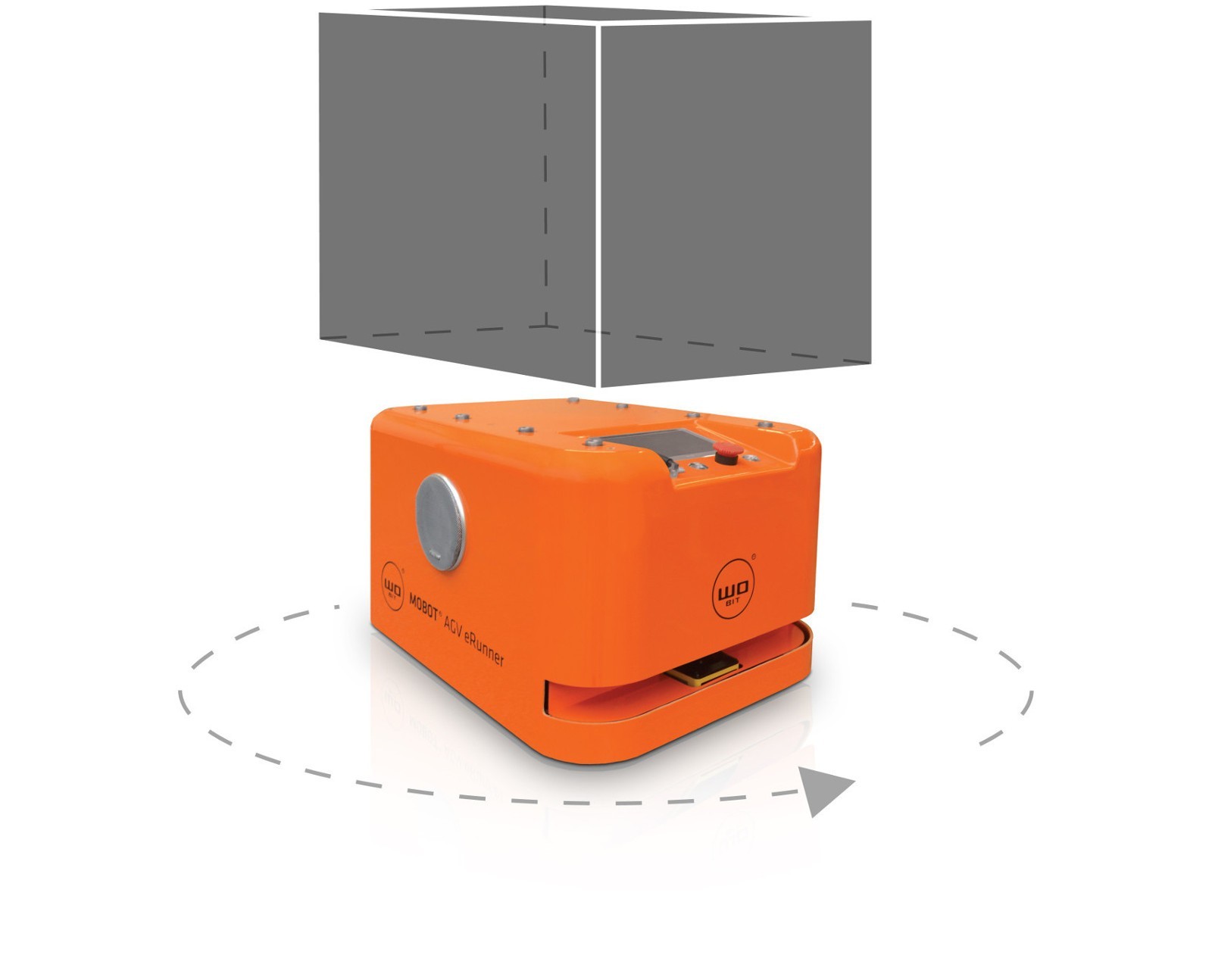

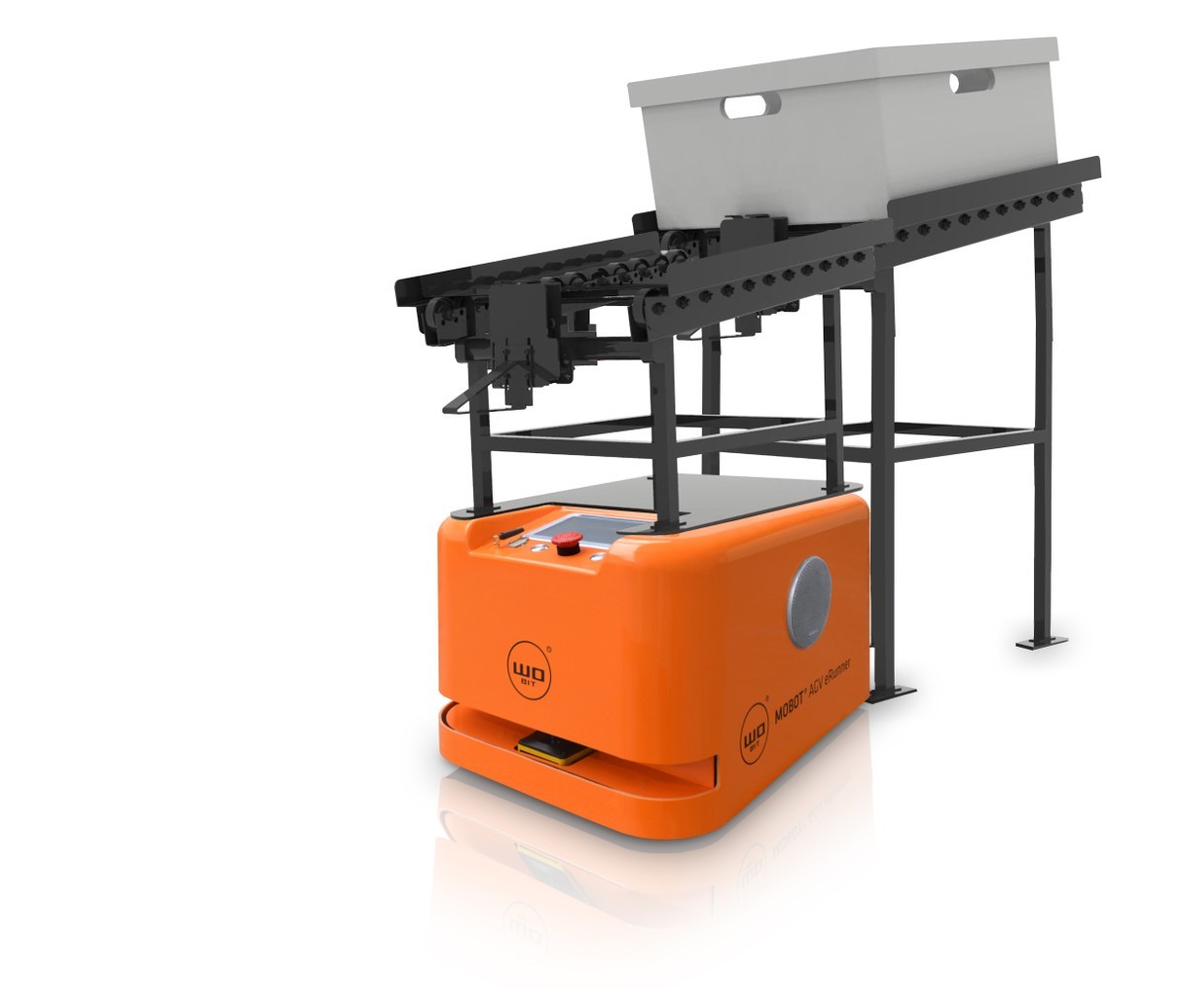

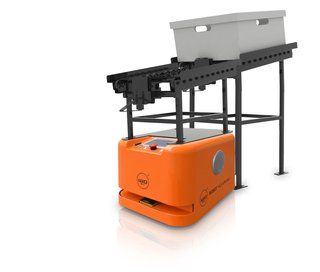

The MOBOT AGV eRunner is WObit's compact transport robot: loads or top modules are fastened to its upper surface with eight M10 screws, for a permissible load of 100 kg. Two 36 Ah/24 V traction batteries give about 8 hours at full load (about 40 hours on standby) and recharge in about 2.5 hours, manually or through a contact connector underneath for automatic charging during operation. It navigates with WObit's LMS laser mapping system - building a map of its surroundings and locating itself on characteristic points such as walls, without reflectors or floor markings - combined with a vision system that can follow a line and position the robot precisely; missions are configured in the MOBOT RoutePlanner software and dispatched from a control terminal over 2.4 GHz Wi-Fi, with Ethernet/Modbus TCP and other I/O for integration. Safety laser scanners make it slow down or stop for obstacles, and a touch operator panel, emergency stops and light and sound signals support work alongside people. The eRunner drives at up to 3 km/h on two BLDC motors with 140 mm wheels, turns on the spot, is rated IP30 for 5-45 C, measures 623 x 492 x 375 mm and weighs about 60 kg.
FEATURES
- Load 100 kg bolted to top (8x M10)
- Max speed 3 km/h
- 500 W
- turns on the spot
- 2x 36 Ah/24 V batteries
- about 8 h
- charge about 2.5 h
- automatic contact charging
- LMS laser navigation + vision line tracking
- 2D safety laser scanner
- IP30
- 5-45 C
- Size 623 x 492 x 375 mm
- about 60 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 60 kg |
|---|---|
| Dimensions | L 623 mm × W 492 mm × H 375 mm |
| Payload | 100 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.99 km/h |
| Environment | Indoor plants; 5-45 C, 5°C to 45°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2D safety laser scanner, vision line-tracking system |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 60 kg |
|---|---|
| Dimensions | L 623 mm × W 492 mm × H 375 mm |
| Payload | 100 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.99 km/h |
| Environment | Indoor plants; 5-45 C, 5°C to 45°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2D safety laser scanner, vision line-tracking system |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOBOT AGV eRunner?
The MOBOT AGV eRunner is WObit's compact transport robot: loads or top modules are fastened to its upper surface with eight M10 screws, for a permissible load of 100 kg.
Who makes the MOBOT AGV eRunner?
The MOBOT AGV eRunner is made by WObit, a robotics company based in Poland.
How much does the MOBOT AGV eRunner cost?
WObit has not publicly announced pricing for the MOBOT AGV eRunner. You can enquire through RobotAIGeek for current pricing.
What is the MOBOT AGV eRunner used for?
The MOBOT AGV eRunner is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MOBOT AGV eRunner?
The MOBOT AGV eRunner has a payload capacity of 100 kg.
How much does the MOBOT AGV eRunner weigh?
The MOBOT AGV eRunner weighs 60 kg.
How fast is the MOBOT AGV eRunner?
The MOBOT AGV eRunner can move at speeds of up to 2.99 km/h.
What is the battery life of the MOBOT AGV eRunner?
The MOBOT AGV eRunner runs for about 480 minutes on a charge.
