DESCRIPTION
MGB-300 is an Industrial-Robot from Graal Tech. It is built for Surveying, Monitoring. Key figures: 28 kg, 720 min runtime.

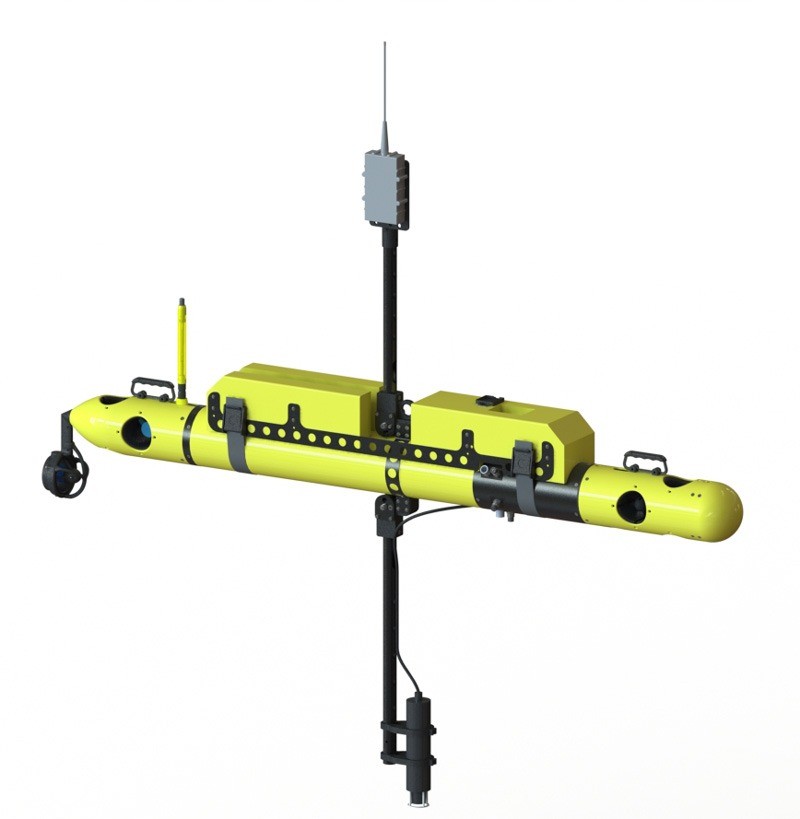

MGB-300 is the newest autonomous vehicle in Graal Tech's X-300 family, an unmanned surface vehicle (USV) that acts as a mobile gateway buoy. Working with one or more X-300 AUVs, it relays data between the underwater vehicles and the control station: two retractable rods, folded for transport, open vertically in operation, one carrying a UHF radio modem above the surface for the long-range link and the other carrying an underwater acoustic modem for submerged assets. The 2,044 mm long, 2,017 mm high vehicle weighs 28 kg, is positively buoyant by 2 to 4 kg, travels at 2 knots (up to 4 if required) and runs 12 hours at maximum speed on a 14.4 V, 1,200 Wh Li-ion battery. A bi-directional rear thruster with a drive leg and bow and stern steering thrusters make it manoeuvrable; payload modules and equipment on the underwater rod can be added, and an open control system with a ROS-based interface exposes all sensors and actuators. It communicates by Wi-Fi up to 1 km and UHF radio modem up to 10 km.
FEATURES
- Unmanned surface vehicle and mobile data gateway for X-300 AUVs
- Retractable rods: UHF radio above water, acoustic modem below
- 2,044 mm long, 2,017 mm high, 28 kg
- Speed 2 knots (up to 4)
- 12 h at max speed
- Li-ion 14.4 V, 1,200 Wh
- Rear thruster plus bow and stern steering thrusters
- Modular payloads
- ROS-based open control interface
- Wi-Fi 1 km, UHF radio modem 10 km
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 28 kg |
|---|---|
| Dimensions | L 2.04 m × H 2.02 m |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 3.71 km/h |
| Environment | Sea surface above AUV operations |
| Power | |
| Battery Life | 720 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 28 kg |
|---|---|
| Dimensions | L 2.04 m × H 2.02 m |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 3.71 km/h |
| Environment | Sea surface above AUV operations |
| Power | |
| Battery Life | 720 min |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MGB-300?
MGB-300 is the newest autonomous vehicle in Graal Tech's X-300 family, an unmanned surface vehicle (USV) that acts as a mobile gateway buoy.
Who makes the MGB-300?
The MGB-300 is made by Graal Tech, a robotics company based in Italy.
How much does the MGB-300 cost?
Graal Tech has not publicly announced pricing for the MGB-300. You can enquire through RobotAIGeek for current pricing.
What is the MGB-300 used for?
The MGB-300 is designed for surveying and monitoring. It is used in defence, energy, and research settings.
How much does the MGB-300 weigh?
The MGB-300 weighs 28 kg.
How fast is the MGB-300?
The MGB-300 can move at speeds of up to 3.71 km/h.
What is the battery life of the MGB-300?
The MGB-300 runs for about 720 minutes on a charge.
