DESCRIPTION
Jaguar V4 with Manipulator Arm is a Mobile-Robots from Dr Robot. It is built for Material-Handling, Others, Security. Key figures: 41 kg, 180 min runtime, 10 kg payload, price $32,750.

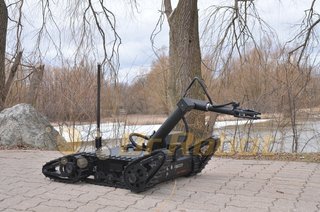

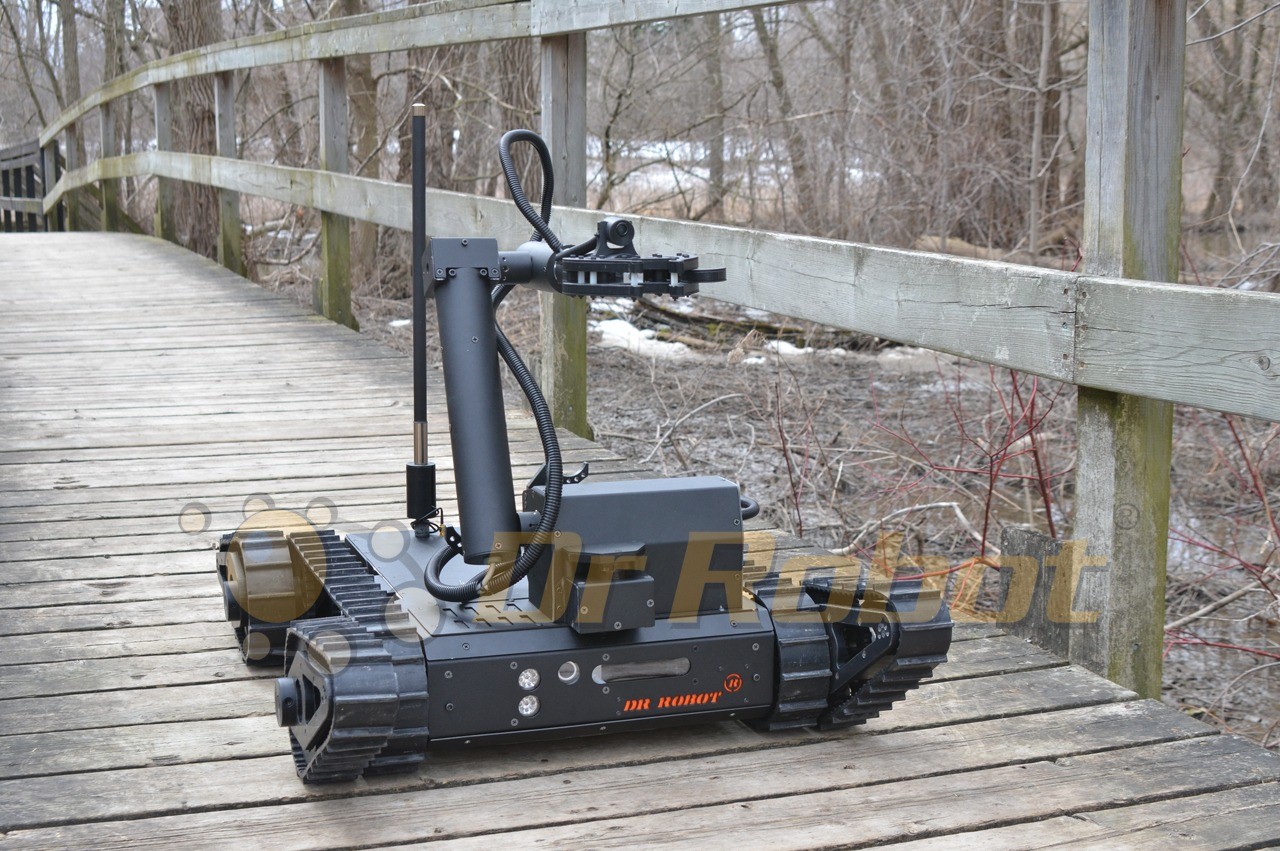

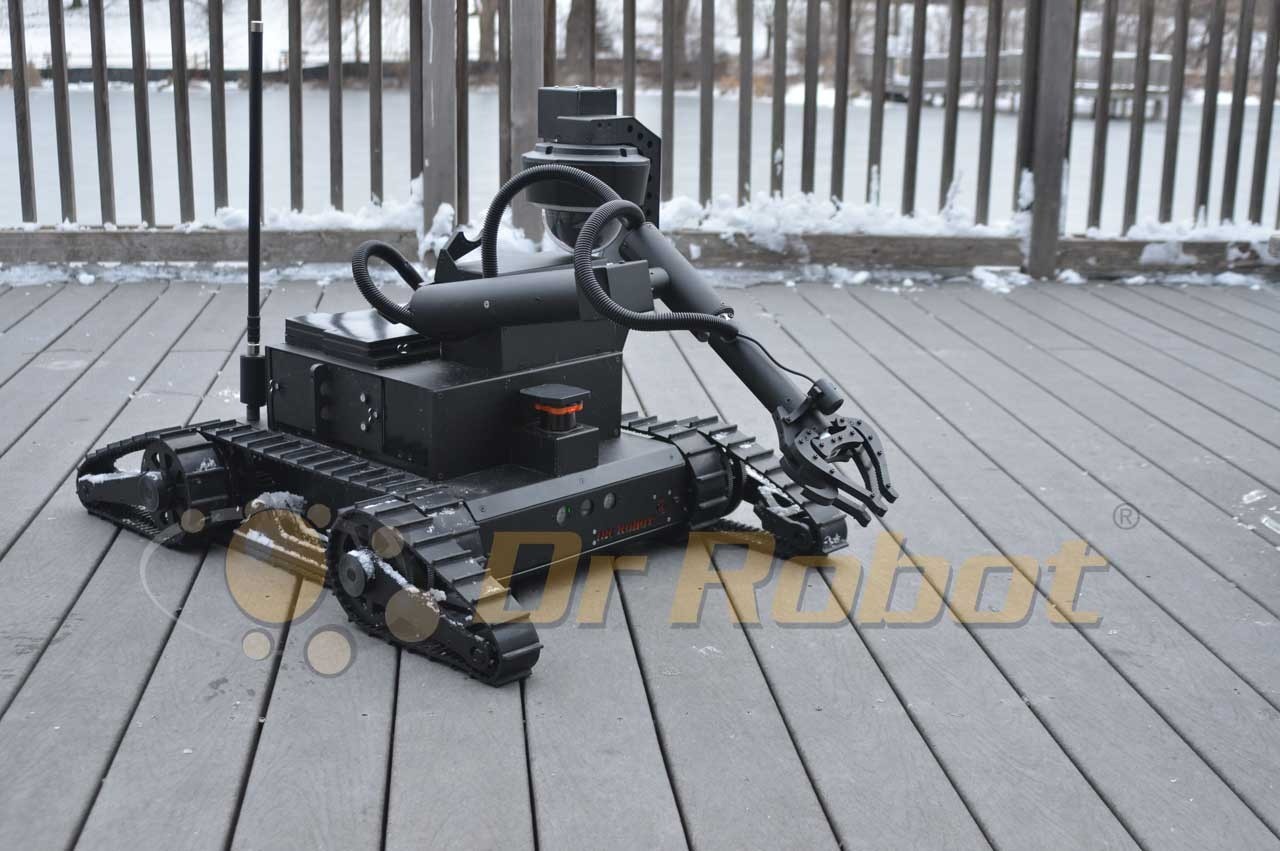

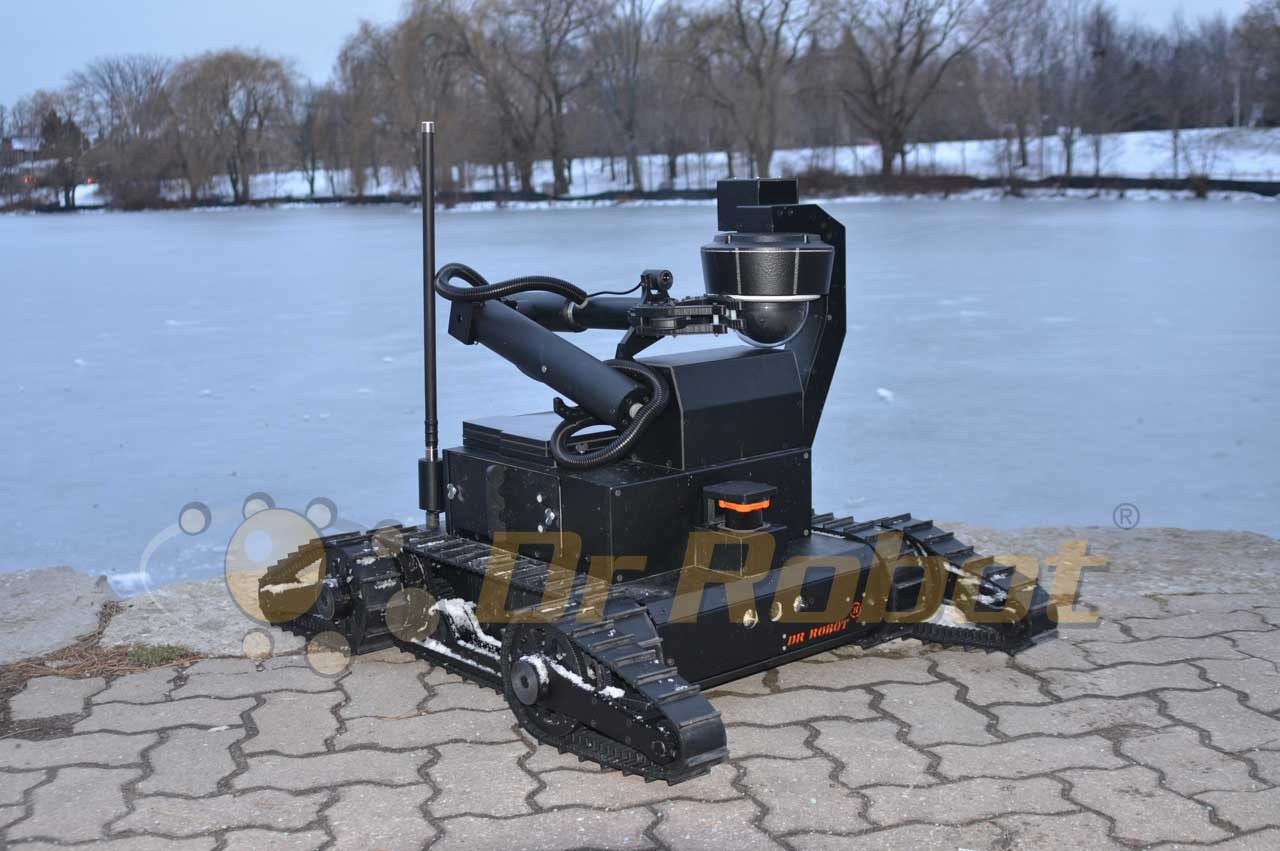

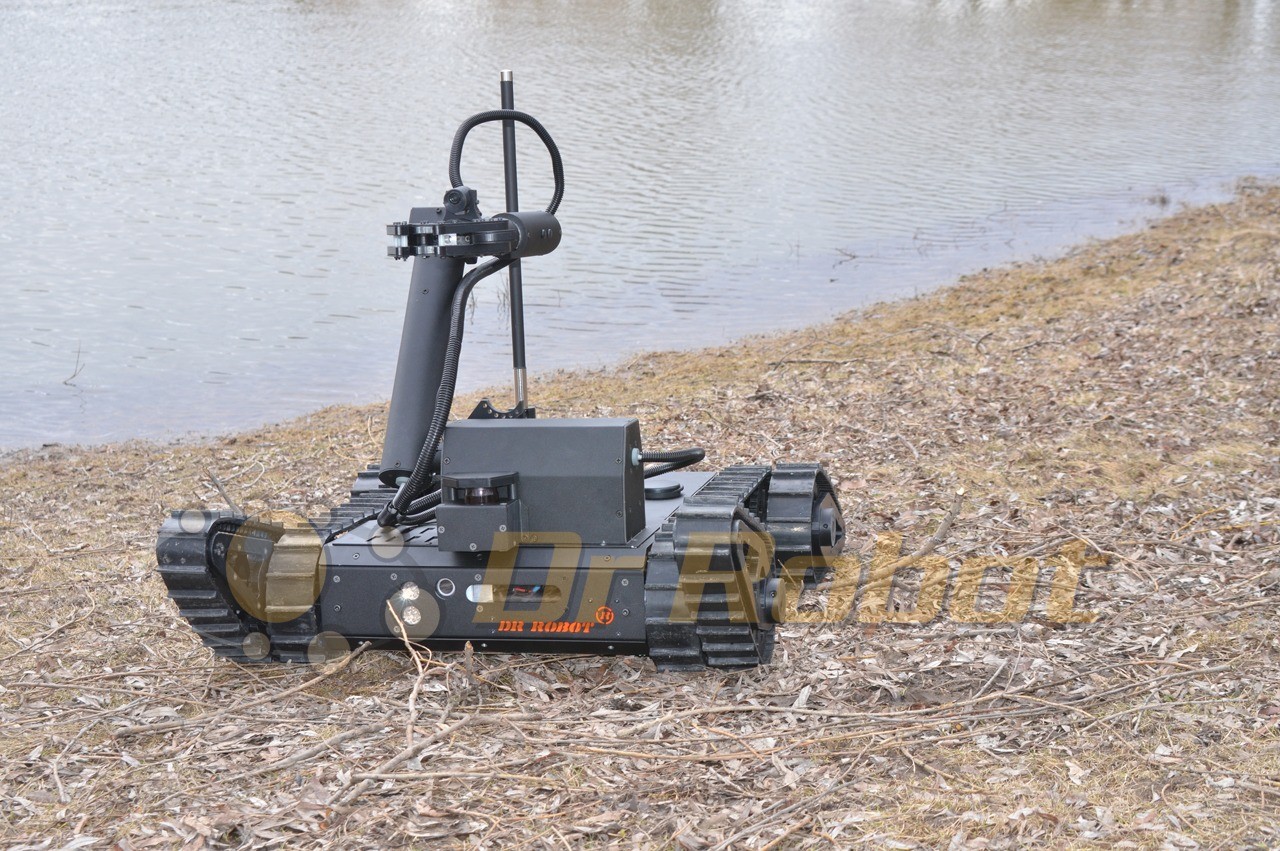

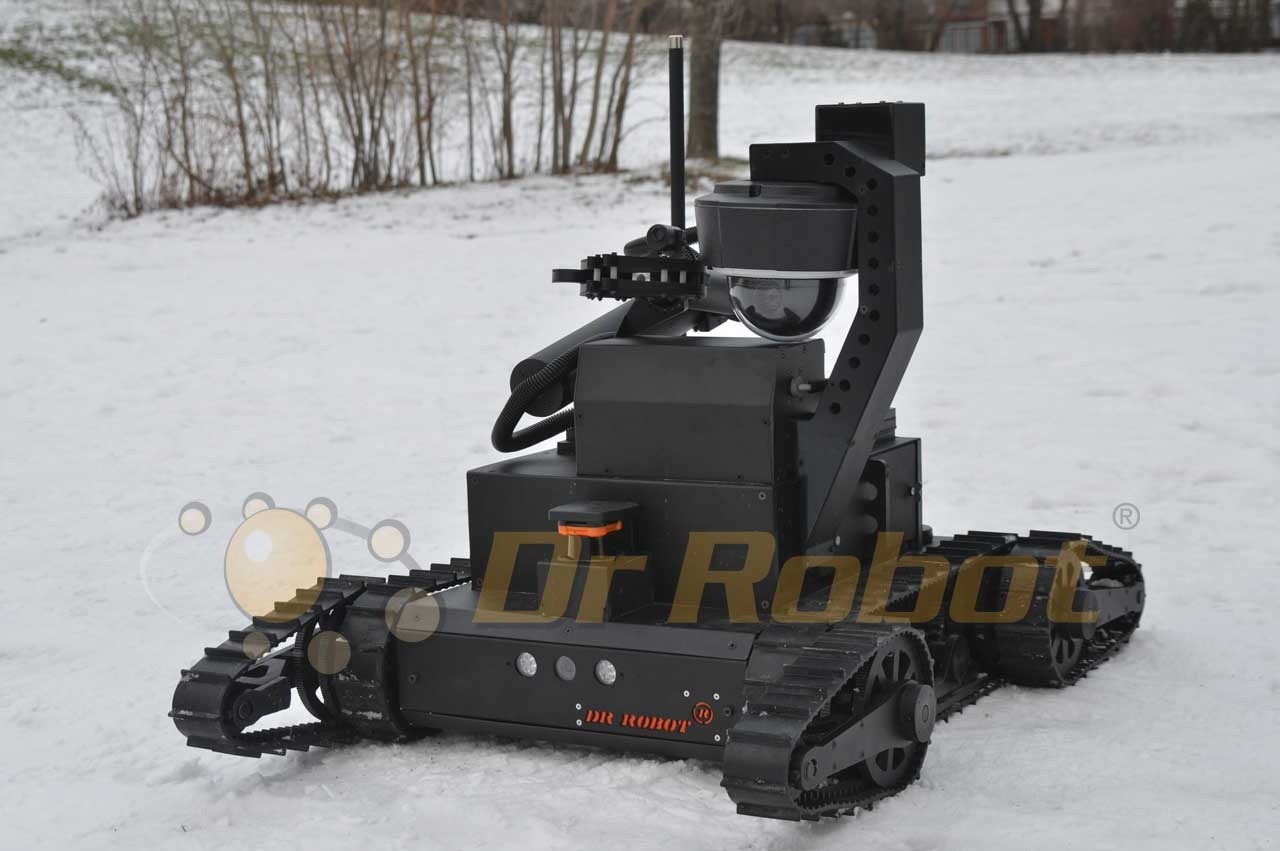

The Jaguar V4 with Manipulator Arm combines Dr Robot's four-flipper Jaguar V4 tracked platform with the rugged Jaguar Arm for terrain mobility plus object manipulation. The 3-DOF arm with a 1-DOF gripper reaches over 707 mm, lifts 4 kg at full reach, opens 150 mm and carries a 720 x 480 wrist camera; working with the robot's own motion it can reach virtually any position and orientation in its workspace, under joint-space or Cartesian gripper control. The platform climbs slopes over 55 degrees, stairs and 300 mm steps, raises ground clearance from 38 to 150 mm on its flippers and drives at up to 4.5 km/h in a weather-resistant chassis rated -30 to +40 C, with GPS/9-DOF IMU navigation, a camera with audio and an optional laser scanner over 802.11n. A ready-to-use control and navigation application, gamepad control with an optional head-mounted display or NVIDIA Shield controller, and a full SDK with sample code for Microsoft Robotics Studio, Visual Studio, ROS, NI LabVIEW, MATLAB and Java are supplied. It runs 3 hours nominal and carries 10 kg on flat ground.
FEATURES
- Jaguar V4 four-flipper tracked base
- Jaguar Arm: 3+1 DOF, 707 mm reach, 4 kg payload, 150 mm gripper
- 720 x 480 wrist camera
- Slopes > 55 degrees
- 300 mm steps
- GPS + 9-DOF IMU
- optional laser scanner
- 3 h nominal runtime
- carries 10 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 41 kg |
|---|---|
| Dimensions | L 980 mm × W 700 mm × H 400 mm |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Other |
| Speed | 4.5 km/h |
| Environment | Indoor and outdoor extreme terrain; -30 to 40 C |
| Power | |
| Battery Life | 180 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 41 kg |
|---|---|
| Dimensions | L 980 mm × W 700 mm × H 400 mm |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Other |
| Speed | 4.5 km/h |
| Environment | Indoor and outdoor extreme terrain; -30 to 40 C |
| Power | |
| Battery Life | 180 min |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Jaguar V4 with Manipulator Arm?
The Jaguar V4 with Manipulator Arm combines Dr Robot's four-flipper Jaguar V4 tracked platform with the rugged Jaguar Arm for terrain mobility plus object manipulation.
Who makes the Jaguar V4 with Manipulator Arm?
The Jaguar V4 with Manipulator Arm is made by Dr Robot, a robotics company based in Canada.
How much does the Jaguar V4 with Manipulator Arm cost?
The Jaguar V4 with Manipulator Arm is priced at around $32,750.
What is the Jaguar V4 with Manipulator Arm used for?
The Jaguar V4 with Manipulator Arm is designed for material-handling, others, security, and inspection. It is used in defence, research, and security & patrol settings.
What is the payload capacity of the Jaguar V4 with Manipulator Arm?
The Jaguar V4 with Manipulator Arm has a payload capacity of 10 kg.
How much does the Jaguar V4 with Manipulator Arm weigh?
The Jaguar V4 with Manipulator Arm weighs 41 kg.
How fast is the Jaguar V4 with Manipulator Arm?
The Jaguar V4 with Manipulator Arm can move at speeds of up to 4.5 km/h.
What is the battery life of the Jaguar V4 with Manipulator Arm?
The Jaguar V4 with Manipulator Arm runs for about 180 minutes on a charge.
