INSPECTOR Ultrasonic Inspection Robot

Inspector Systems

Mobile-Robots Germany

GermanyReleased

★Not rated yet

Compare

Sources:

inspector-systems.com

Industries:

Energy Manufacturing

Uses:

Data Collection Inspection

Price:

Not announced

Model:

Inspector Systems INSPECTOR ultrasonic pipe inspection robot

DESCRIPTION

INSPECTOR Ultrasonic Inspection Robot is a Mobile-Robots from Inspector Systems. It is built for Data Collection, Inspection.

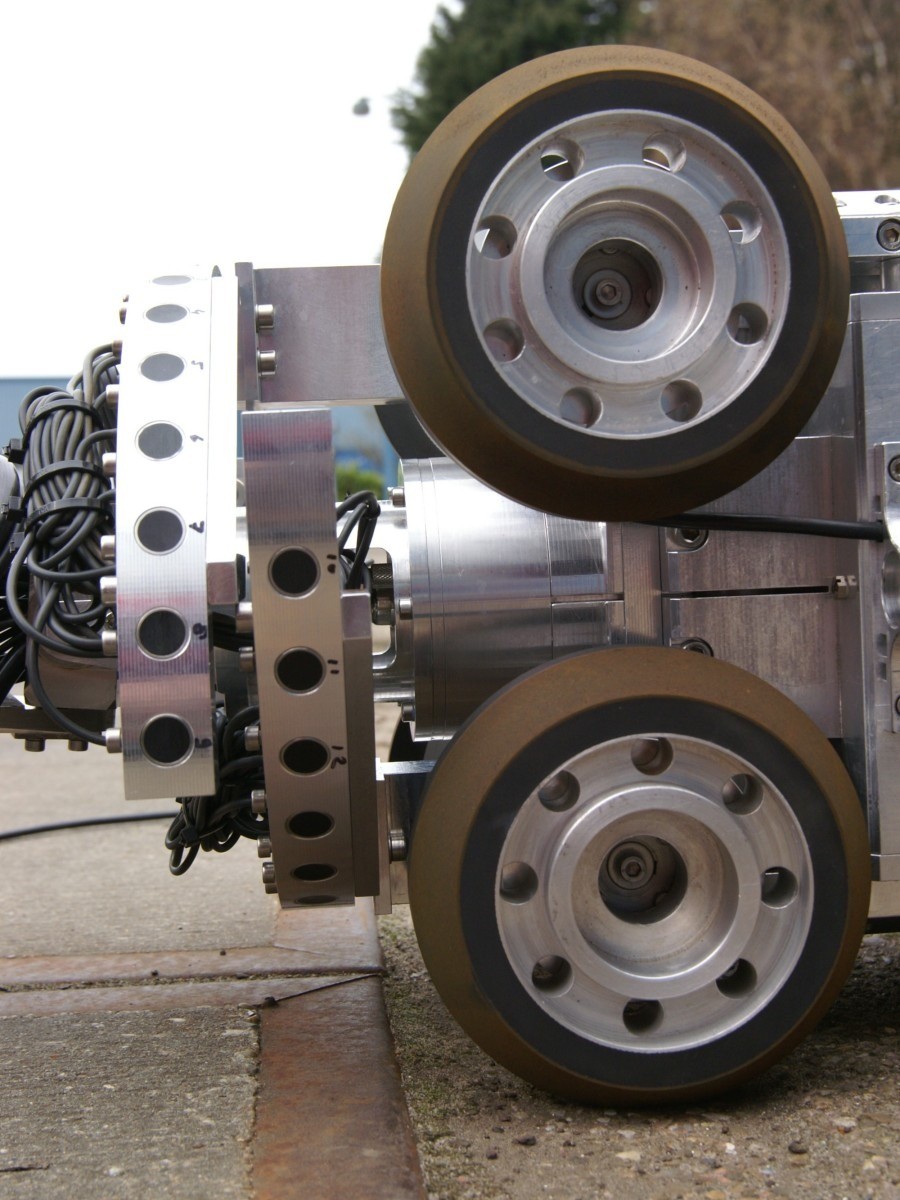

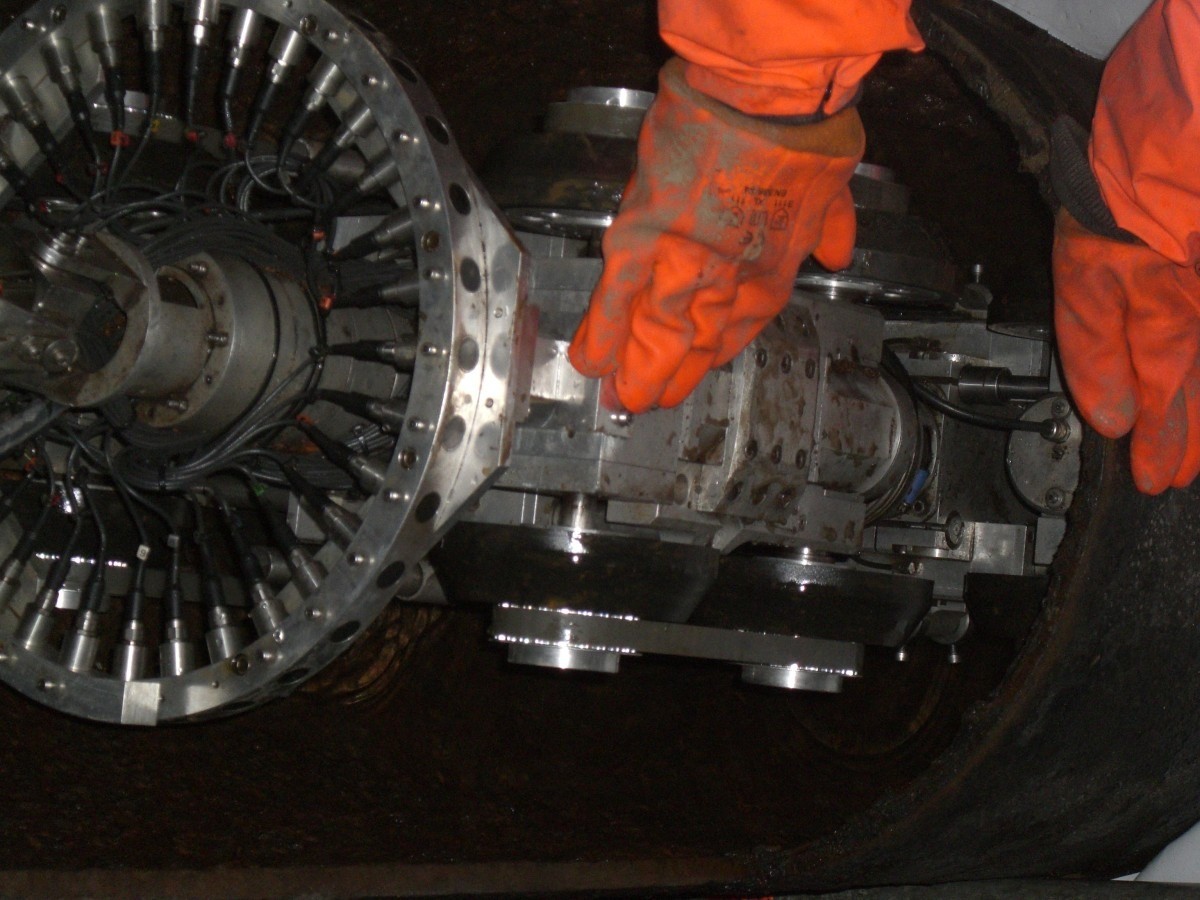

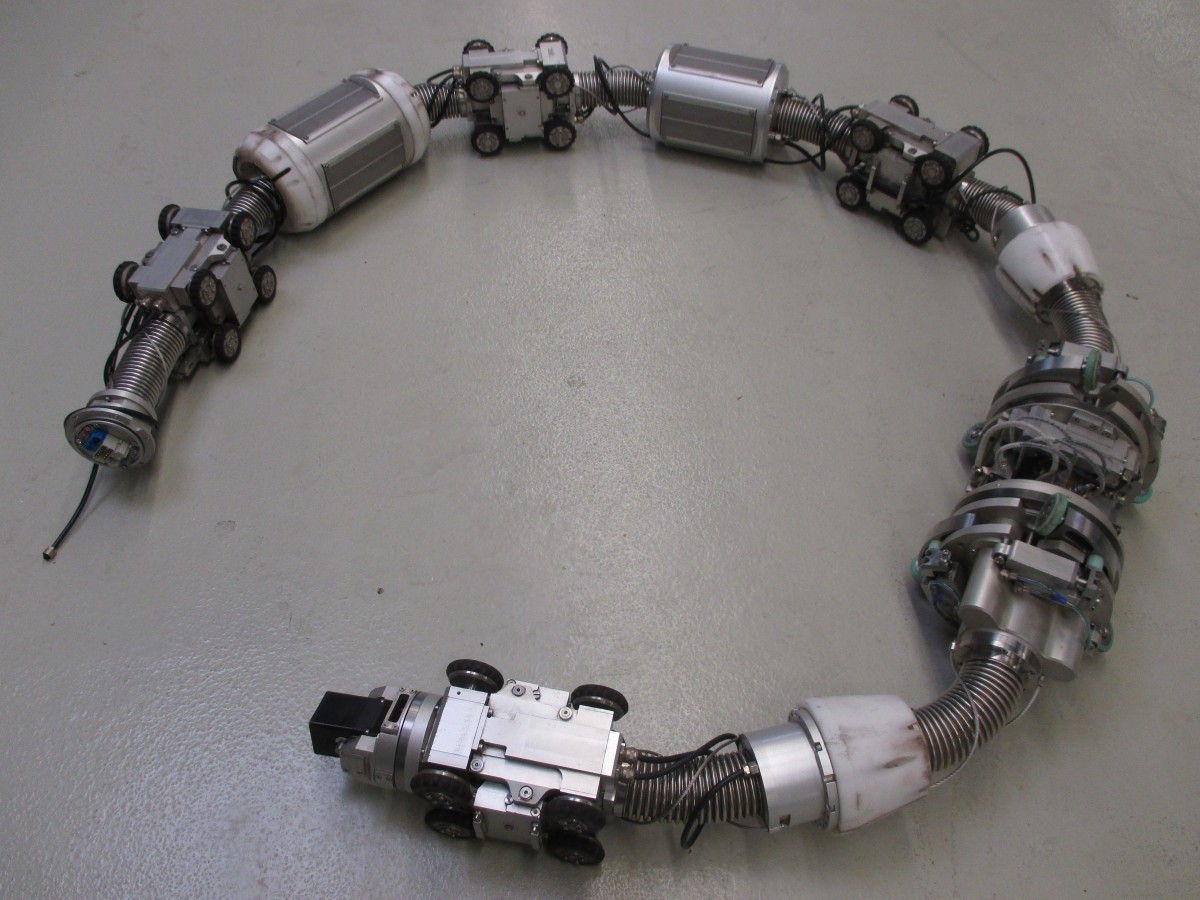

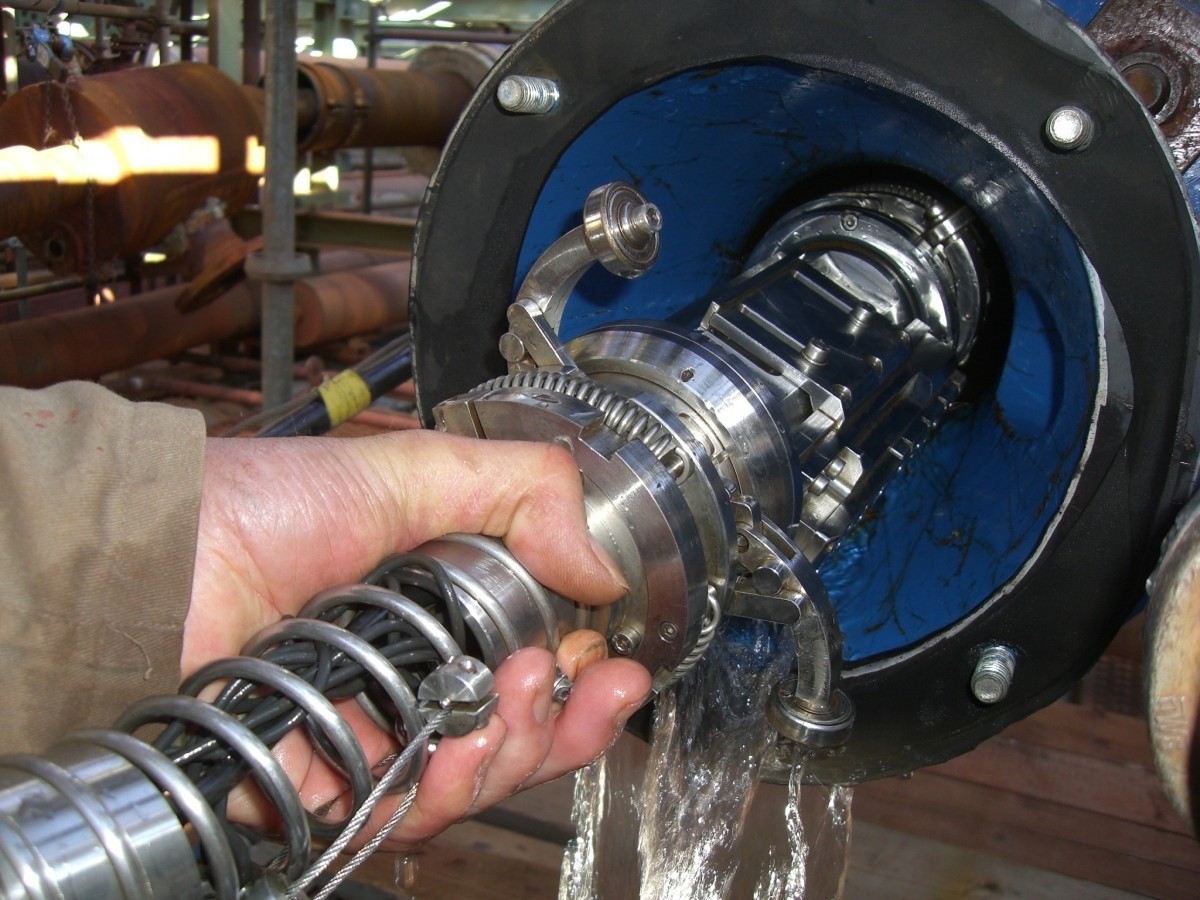

The INSPECTOR Ultrasonic Inspection Robot is a self-propelled pipe crawler that measures pipe wall thickness, suited to pipes laid underground and pipes with long vertical inclines. It works in pipes from 6 inches over lengths of about 300 m, travelling at 200 m/h through horizontal and vertical sections and 1.5 D bends, and can detect internal and external corrosion. Three drive elements joined by flexible bellows carry an ultrasonic module with a rotating sensor, a camera and a positioning unit. The sensor works through the water in filled pipes, or in contact with the wall, and a water-filled flow chamber lets it inspect unfilled pipes too. A glass fibre cable carries commands and data, and wall thickness appears online as a C-scan image.

FEATURES

Measures pipe wall thickness
Pipes from 6 inches
About 300 m reach
200 m/h
Bends 1.5 D and vertical sections
Three drive elements
Rotating ultrasonic sensor, camera and positioning unit
Detects internal and external corrosion
Water-coupled or contact probes
works in unfilled pipes
Glass fibre cable
Online C-scan display

TECHNICAL SPECIFICATIONS

Verified

Mobility
Movement Type	Wheeled
Speed	0.2 km/h
Environment	Inside industrial pipe systems

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Mobility
Movement Type	Wheeled
Speed	0.2 km/h
Environment	Inside industrial pipe systems

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the INSPECTOR Ultrasonic Inspection Robot?

The INSPECTOR Ultrasonic Inspection Robot is a self-propelled pipe crawler that measures pipe wall thickness, suited to pipes laid underground and pipes with long vertical inclines.

Who makes the INSPECTOR Ultrasonic Inspection Robot?

The INSPECTOR Ultrasonic Inspection Robot is made by Inspector Systems, a robotics company based in Germany.

How much does the INSPECTOR Ultrasonic Inspection Robot cost?

Inspector Systems has not publicly announced pricing for the INSPECTOR Ultrasonic Inspection Robot. You can enquire through RobotAIGeek for current pricing.
