DESCRIPTION

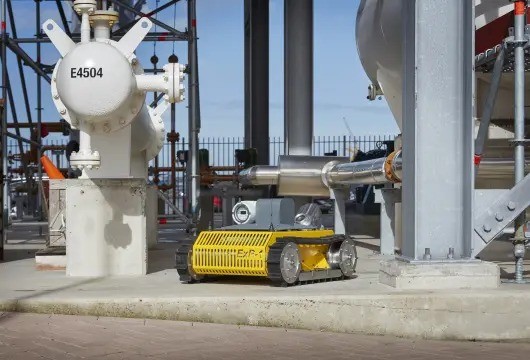

ExR-1 is a Mobile-Robots from ExRobotics. It is built for Inspection, Monitoring, Explosion-proof remotely operated robot for hazardous-area investigation and emission detection. Key figures: 73 kg, 90 min runtime, released 2017.
The ExR-1 is ExRobotics' first robot, developed in 2017: a cost-effective, remotely operated platform certified to IECEx and ATEX Zone 1 (II 2 G Ex db eb ib mb qb IIB T4 Gb) for -20 to +50 C, originally designed to help operators investigate potentially hazardous situations. With ExRobotics' patented induction charging and docking station it can live on unmanned facilities, and a simple line-following autonomy was added at customers' request, making it a low-cost way to detect fugitive emissions. The tracked robot measures 950 x 690 x 560 mm and weighs 73 kg, drives over roads, slabs, pebbles, metal gratings and grass in light snow, hail and rain, climbs 20 cm ledges and 35-degree slopes, and has a 2 km range, a battery life of 90 minutes to 7 hours depending on use and a 4.5-hour charge. It carries three cameras in one module, a microphone and 4G/LTE, with options such as point gas and VOC detectors, a thermal camera, an infrared leak-detection camera and tag-based inspection; ExRobotics configured it as First Responder, Emissions Detector and Co-Operator versions.
FEATURES
- IECEx & ATEX Zone 1
- 20 to +50 C
- Remote operation
- optional line-following autonomy
- Induction charging and docking station for unmanned sites
- Three-camera module, microphone
- optional gas, VOC, thermal and IR leak detection
- 2 km range
- 90 min to 7 h battery
- 4.5 h charge
- Climbs 20 cm ledges, 35-degree slopes
- 950 x 690 x 560 mm, 73 kg
- 4G/LTE
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 73 kg |
|---|---|
| Dimensions | L 950 mm × W 690 mm × H 560 mm |
| Mobility | |
| Movement Type | Other |
| Environment | Oil and gas facilities, unmanned sites and incident scenes in Ex Zone 1, outdoors |
| Power | |
| Battery Life | 90 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 73 kg |
|---|---|
| Dimensions | L 950 mm × W 690 mm × H 560 mm |
| Mobility | |
| Movement Type | Other |
| Environment | Oil and gas facilities, unmanned sites and incident scenes in Ex Zone 1, outdoors |
| Power | |
| Battery Life | 90 min |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the ExR-1?
The ExR-1 is ExRobotics' first robot, developed in 2017: a cost-effective, remotely operated platform certified to IECEx and ATEX Zone 1 (II 2 G Ex db eb ib mb qb IIB T4 Gb) for -20 to +50 C, originally designed to help operators investigate potentially hazardous situations.
Who makes the ExR-1?
The ExR-1 is made by ExRobotics, a robotics company based in Netherlands.
How much does the ExR-1 cost?
ExRobotics has not publicly announced pricing for the ExR-1. You can enquire through RobotAIGeek for current pricing.
What is the ExR-1 used for?
The ExR-1 is designed for inspection, monitoring, and explosion-proof remotely operated robot for hazardous-area investigation and emission detection. It is used in energy and manufacturing settings.
How much does the ExR-1 weigh?
The ExR-1 weighs 73 kg.
What is the battery life of the ExR-1?
The ExR-1 runs for about 90 minutes on a charge.
When was the ExR-1 released?
The ExR-1 was released in 2017.
