DESCRIPTION
XENA 5.0 Fire Fighting is a Mobile-Robots from Club First Robotics. It is built for Rescue, Spraying, Monitoring. Key figures: 240 kg, 300 min runtime.

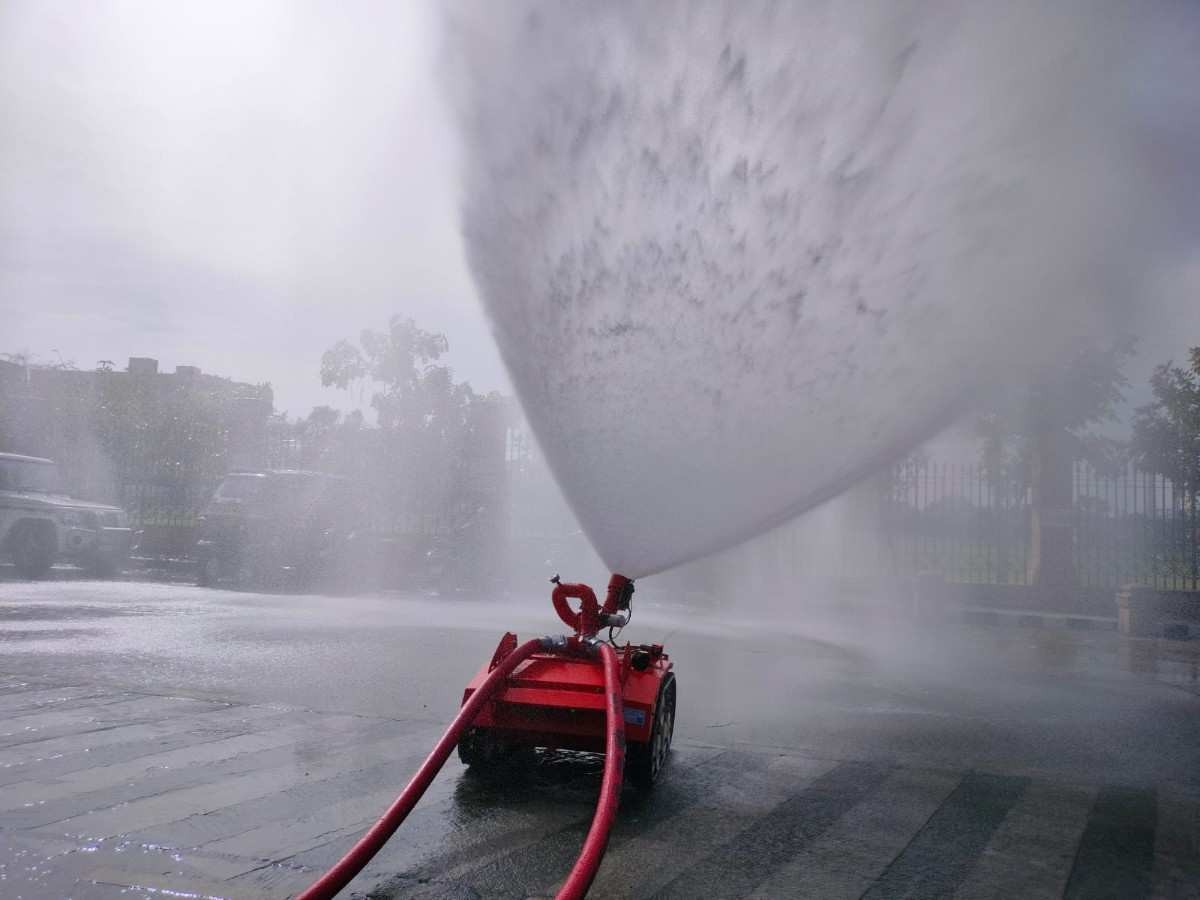

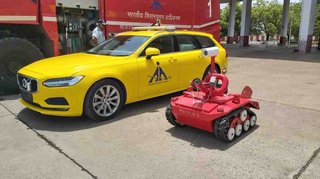

XENA 5.0 is a remote-controlled tracked firefighting robot from Club First Robotics that drives into high-heat, smoke-filled or hazardous areas and attacks the fire from a roof-mounted water and foam monitor, keeping firefighters at a safe distance. It is built on the company's XENA all-terrain tracked platform. The robot runs on heavy-duty iron-core rubber tracks driven by BLDC motors, with a gyro-based straight-line and angle-following algorithm and individual differential gears for each drive. A single radio remote with about 300 m range controls both the vehicle and the monitor. The monitor delivers 1,800 to 3,000 litres per minute at up to 10 kg/cm2 in jet or fog mode, throws water up to 90 m and traverses 360 degrees, while a PTZ thermal camera provides automatic fire-point detection and alarms. The maker gives a top speed of 8 km/h, a 48 V 72 Ah battery for 5 to 6 hours of operation, a total weight of 240 kg and a footprint that fits a 1,280 x 860 x 650 mm box. It climbs slopes up to 45 degrees and stairs up to 30 degrees and can drag charged hose lines. Maker gallery photos show units with Delhi Fire Service and at an Airports Authority of India fire station.
FEATURES
- Remote-controlled tracked firefighting robot (XENA all-terrain platform)
- Remote-controlled water and foam monitor, 1,800-3,000 LPM at up to 10 kg/cm2
- Jet and fog modes
- water throw up to 90 m
- Monitor movement: vertical +25 to 85 degrees, horizontal +/-180 degrees
- PTZ thermal remote-controlled camera
- automatic fire-point detection and alarm
- Single remote controls both vehicle and monitor
- RC range about 300 m
- Top speed 8 km/h
- Battery 48 V / 72 Ah
- endurance 5-6 h
- hot-attached power bank
- fast charging
- Heavy-duty spiral iron-core wire rubber tracks (25 mm thick) with track-belt suspension
- BLDC heavy-duty motors
- individual differential gear for each drive
- Gyro-based straight-line and angular following algorithm
- adaptive braking

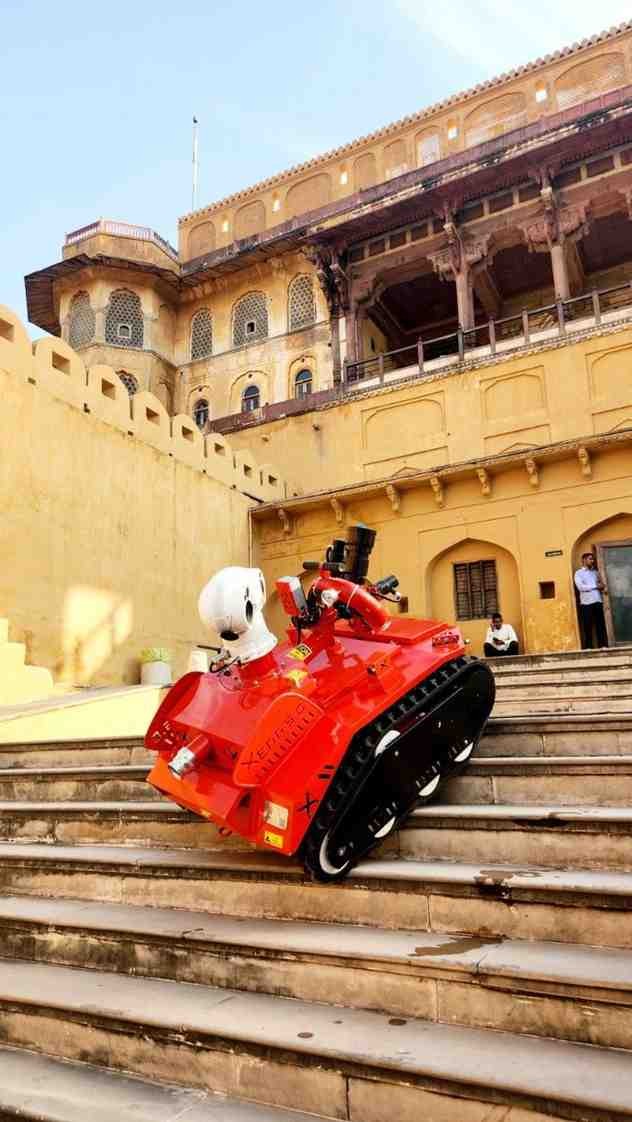

- Climbing slope up to 45 degrees
- stairs up to 30 degrees
- Total weight 240 kg
- fits a 1,280 x 860 x 650 mm (L x W x H) box
- Body and base of 1.5-3 mm GI/MS sheet, powder coated
- Working temperature -20 to +95 C, up to 500 C with self-cooling (maker)
- Payload capacity 120 kg in the key parameters (500 kg in the headline list)
- Hose-drag capacity: 100 m of two charged hoses (headline)
- 180 kg drag, up to 5-ton vehicle tow (key parameters)
- Heat and overload protection
- Operator training in about one minute (maker claim)
- Made in India
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 240 kg |
|---|---|
| Dimensions | L 1.28 m × W 860 mm × H 650 mm |
| Materials | GI / MS sheet steel, powder coated, Iron-core rubber tracks |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.99 km/h |
| Environment | Indoor and outdoor fire scenes, smoke-filled and high-heat areas, stairs and rough terrain, -20°C to 95°C |
| Actuators | BLDC electric motors with individual differential gears |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | PTZ thermal camera, Visible-light camera, Gyroscope |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 240 kg |
|---|---|
| Dimensions | L 1.28 m × W 860 mm × H 650 mm |
| Materials | GI / MS sheet steel, powder coated, Iron-core rubber tracks |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.99 km/h |
| Environment | Indoor and outdoor fire scenes, smoke-filled and high-heat areas, stairs and rough terrain, -20°C to 95°C |
| Actuators | BLDC electric motors with individual differential gears |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | PTZ thermal camera, Visible-light camera, Gyroscope |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the XENA 5.0 Fire Fighting?
XENA 5.0 is a remote-controlled tracked firefighting robot from Club First Robotics that drives into high-heat, smoke-filled or hazardous areas and attacks the fire from a roof-mounted water and foam monitor, keeping firefighters at a safe distance. It is built on the company's XENA all-terrain tracked platform.
Who makes the XENA 5.0 Fire Fighting?
The XENA 5.0 Fire Fighting is made by Club First Robotics, a robotics company based in India.
How much does the XENA 5.0 Fire Fighting cost?
Club First Robotics has not publicly announced pricing for the XENA 5.0 Fire Fighting. You can enquire through RobotAIGeek for current pricing.
What is the XENA 5.0 Fire Fighting used for?
The XENA 5.0 Fire Fighting is designed for rescue, spraying, monitoring, and remote. It is used in energy, government, airports, and manufacturing settings.
How much does the XENA 5.0 Fire Fighting weigh?
The XENA 5.0 Fire Fighting weighs 240 kg.
How fast is the XENA 5.0 Fire Fighting?
The XENA 5.0 Fire Fighting can move at speeds of up to 7.99 km/h.
What is the battery life of the XENA 5.0 Fire Fighting?
The XENA 5.0 Fire Fighting runs for about 300 minutes on a charge.
