ECART 6

Oppent

Industrial-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Healthcare Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

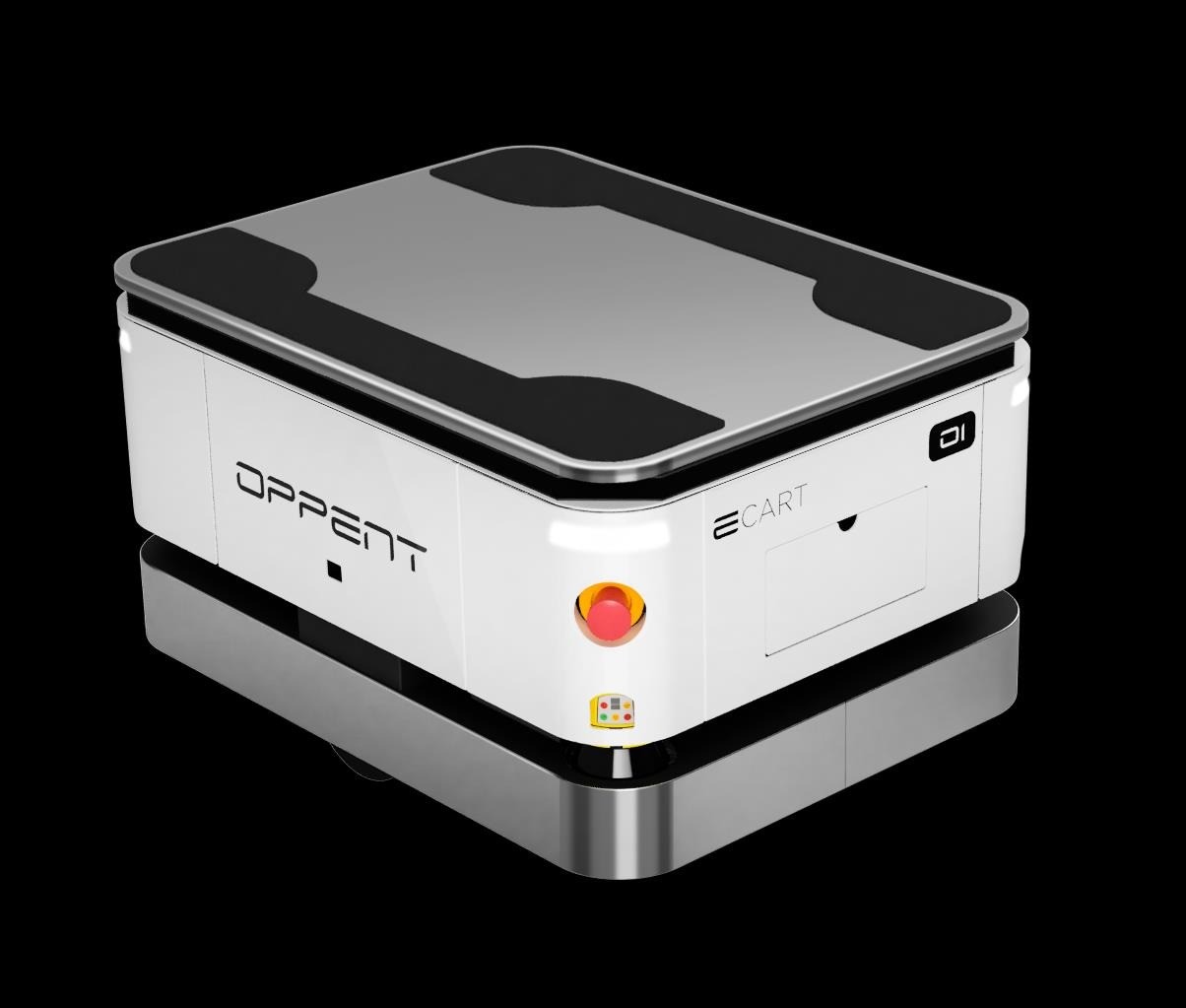

Oppent ECART 6 autonomous mobile robot

DESCRIPTION

ECART 6 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 95 kg, 360 min runtime, 300 kg payload.

ECART 6 is a model in Oppent's ECART family of autonomous mobile robots, built in Italy. The smallest ECART, an 800 x 600 mm robot weighing 95 kg, it carries boxes or small trolleys up to 300 kg on its full-size platform.\nPer its datasheet it measures 800 x 600 x 500 mm, weighs 95 kg without batteries and carries 300 kg nominal (350 kg maximum) on lift platform 800 x 600 mm, 60 mm stroke. It uses differential, bidirectional drive (2 x 200 W), travels at up to 1.0 m/s and climbs 5% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 6 hours on a LiFePO4 24 V 50 Ah battery with 2 h recharge. Safety comes from 2 Sick S300 laser scanners, 2 e-stops, Sick Flexi safety controller; 360 deg field for boxes, 180+180 deg for trolleys, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 300 kg
maximum 350 kg
Equipment: lift platform 800 x 600 mm, 60 mm stroke
Size 800 x 600 x 500 mm
95 kg without batteries
Drive: differential, bidirectional drive (2 x 200 W)
max speed 1.0 m/s
slopes up to 5%
Battery: LiFePO4 24 V 50 Ah
about 6 h autonomy, 2 h recharge
Safety: 2 Sick S300 laser scanners, 2 e-stops, Sick Flexi safety controller
360 deg field for boxes, 180+180 deg for trolleys
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Physical
Weight	95 kg
Dimensions	L 800 mm × W 600 mm × H 500 mm
Payload	300 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor hospitals and factories (+5 to 35 C)
Power
Battery Life	360 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Physical
Weight	95 kg
Dimensions	L 800 mm × W 600 mm × H 500 mm
Payload	300 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor hospitals and factories (+5 to 35 C)
Power
Battery Life	360 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the ECART 6?

Who makes the ECART 6?

The ECART 6 is made by Oppent, a robotics company based in Italy.

How much does the ECART 6 cost?

Oppent has not publicly announced pricing for the ECART 6. You can enquire through RobotAIGeek for current pricing.

What is the ECART 6 used for?

The ECART 6 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in healthcare, warehouse & logistics, and manufacturing settings.
