DESCRIPTION
NarGo500FT is an Industrial-Robot from TWINNY. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 240 min runtime, 500 kg payload.

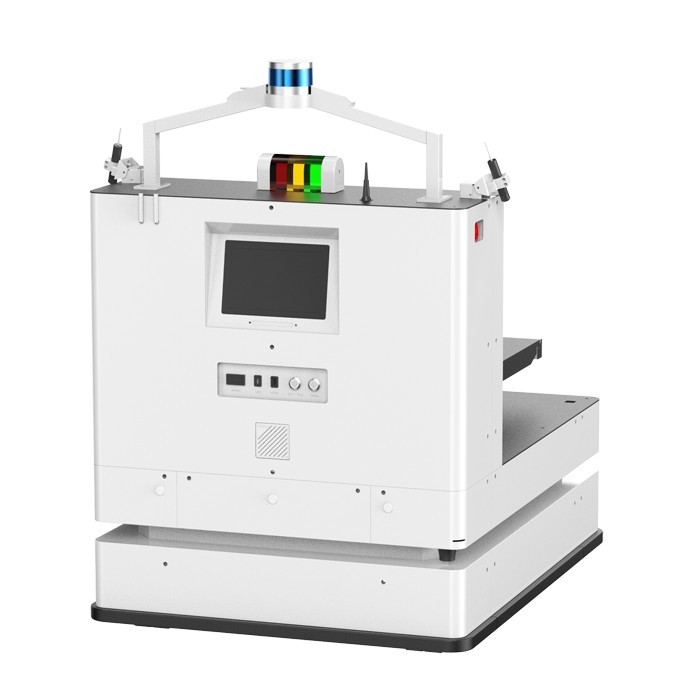

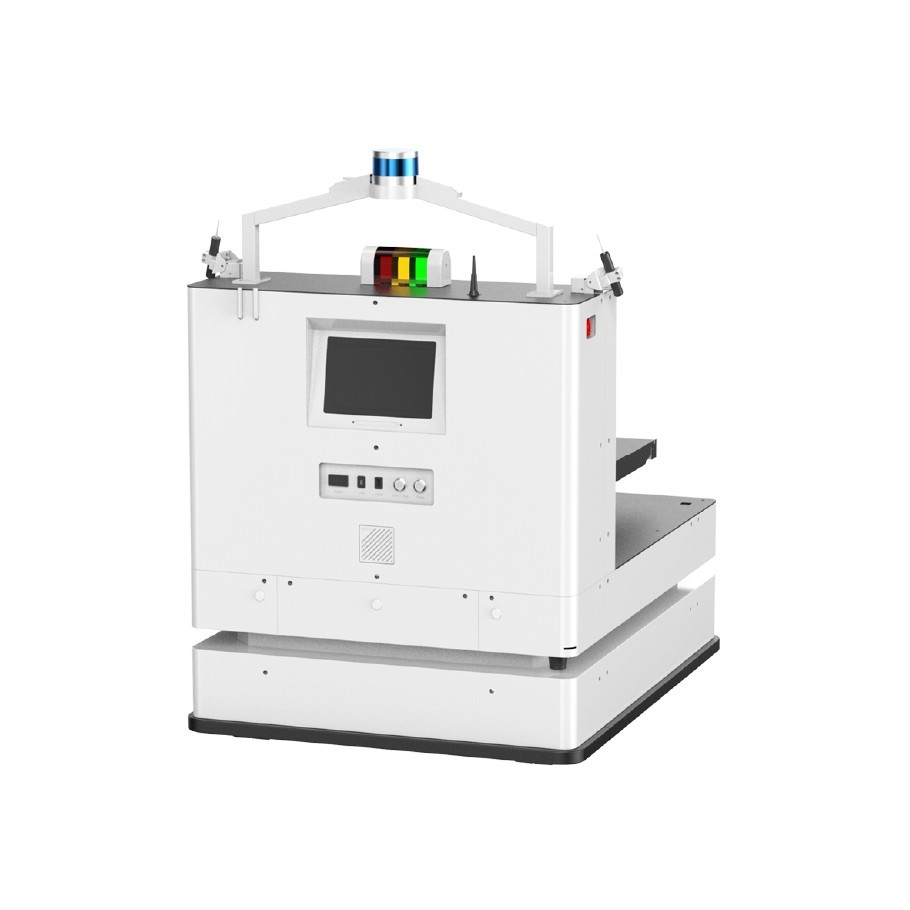

The NarGo500FT is TWINNY's pallet-compatible autonomous mobile robot for factory automation. It uses a forklift-style loading and unloading system with forks and a pallet sensor, works with a wide range of pallet types, and can be integrated with customer systems; TWINNY supplies a matching pallet rack (750 x 1,200 x 550 mm, up to 600 kg) for pick-up and drop-off. Its safety system combines a 3D LiDAR on top for environment perception, two 2D LiDARs at opposite corners for 360-degree obstacle detection and a bumper that stops the robot on contact, with a patlite, line laser and LTE router on board. The robot measures 1,200 x 930 x 1,330 mm, handles pallets of 1,100 x 740 x 140 mm and loads up to 500 kg at up to 1.0 m/s, operates at 5-40 C over Wi-Fi and LTE, and runs up to 4 hours on a charge of under 2 hours.
FEATURES
- Payload 500 kg

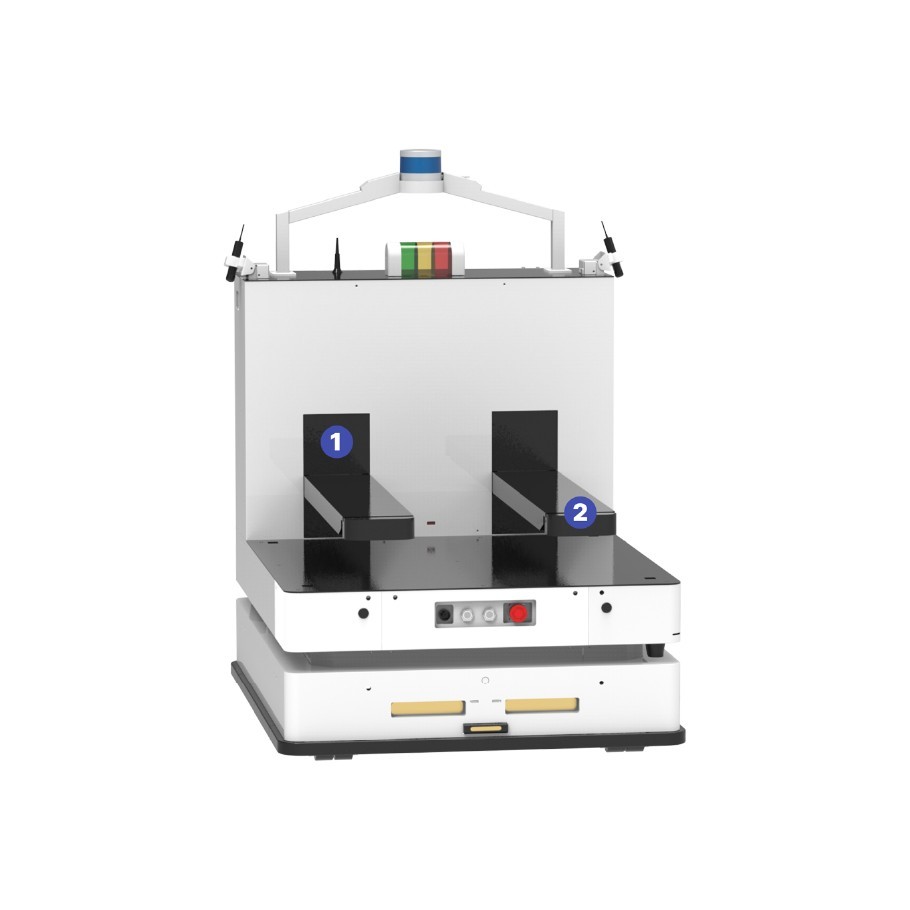

- Forklift-type loading/unloading with pallet sensor
- Size 1,200 x 930 x 1,330 mm
- pallet 1,100 x 740 x 140 mm
- Max speed 1.0 m/s
- Matching pallet rack 750 x 1,200 x 550 mm, max 600 kg
- 3D LiDAR + dual 2D LiDAR (360 deg) + bumper
- line laser
- patlite
- Wi-Fi, LTE
- Up to 4 h operation
- charging under 2 h
- Operating temperature 5-40 C
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.2 m × W 930 mm × H 1.33 m |
|---|---|
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor buildings, warehouses and factories, 5°C to 40°C |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR, 2x 2D LiDAR (360 deg), bumper, pallet sensor, line laser |
| Connectivity | Wi-Fi, LTE; TWINNY control system |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.2 m × W 930 mm × H 1.33 m |
|---|---|
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor buildings, warehouses and factories, 5°C to 40°C |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR, 2x 2D LiDAR (360 deg), bumper, pallet sensor, line laser |
| Connectivity | Wi-Fi, LTE; TWINNY control system |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the NarGo500FT?
The NarGo500FT is TWINNY's pallet-compatible autonomous mobile robot for factory automation. It uses a forklift-style loading and unloading system with forks and a pallet sensor, works with a wide range of pallet types, and can be integrated with customer systems; TWINNY supplies a matching pallet rack (750 x 1,200 x 5…
Who makes the NarGo500FT?
The NarGo500FT is made by TWINNY, a robotics company based in South Korea.
How much does the NarGo500FT cost?
TWINNY has not publicly announced pricing for the NarGo500FT. You can enquire through RobotAIGeek for current pricing.
What is the NarGo500FT used for?
The NarGo500FT is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the NarGo500FT?
The NarGo500FT has a payload capacity of 500 kg.
How fast is the NarGo500FT?
The NarGo500FT can move at speeds of up to 3.6 km/h.
What is the battery life of the NarGo500FT?
The NarGo500FT runs for about 240 minutes on a charge.
