DESCRIPTION

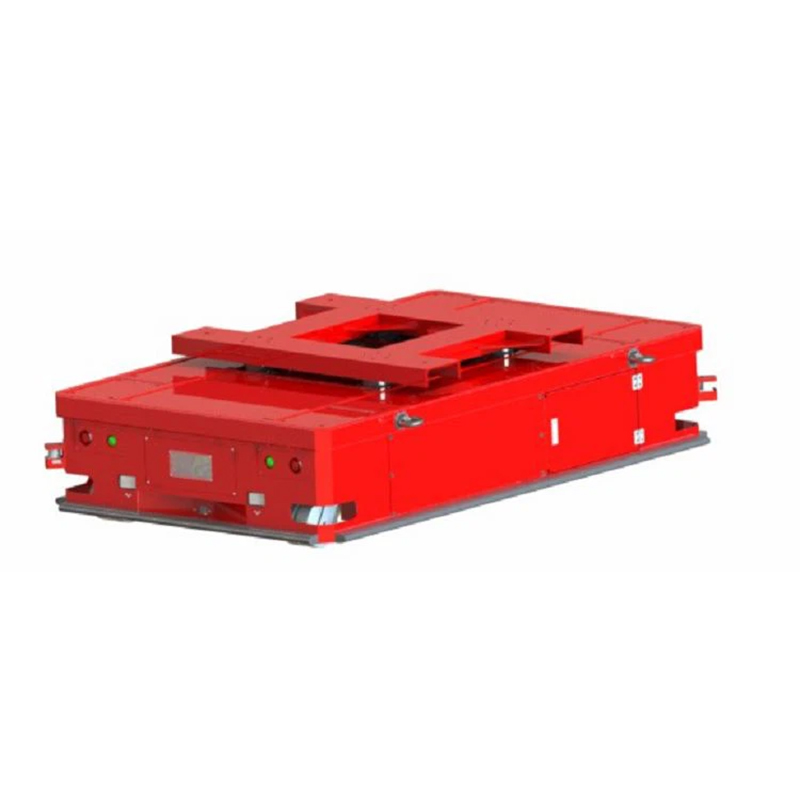

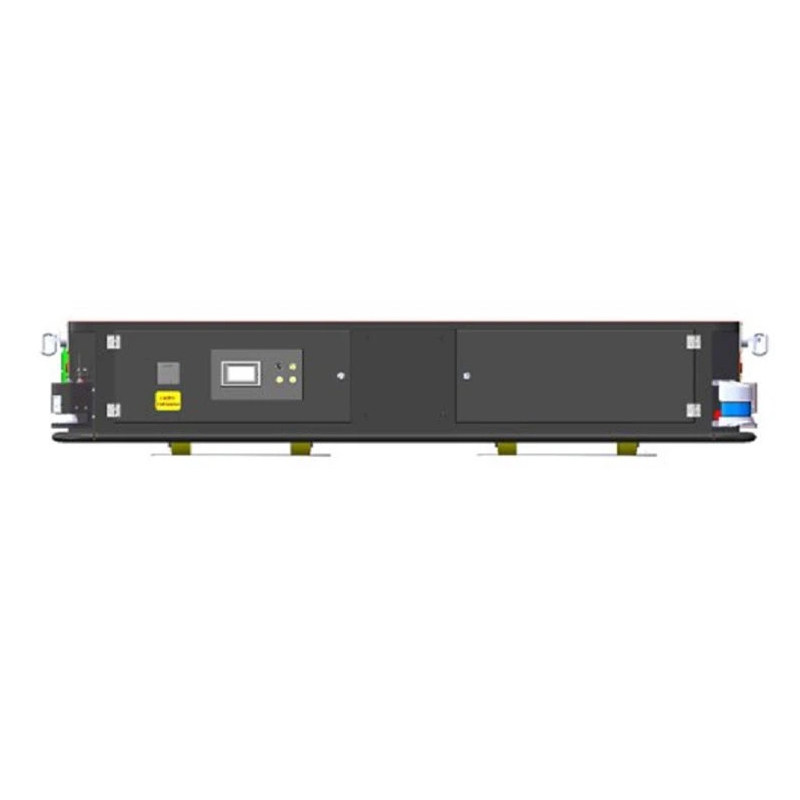

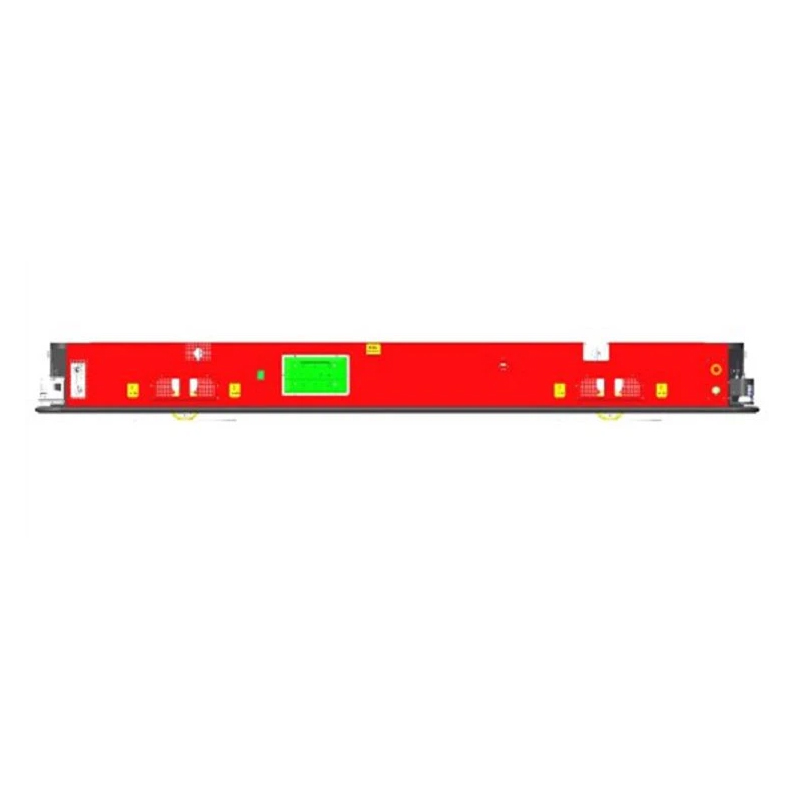

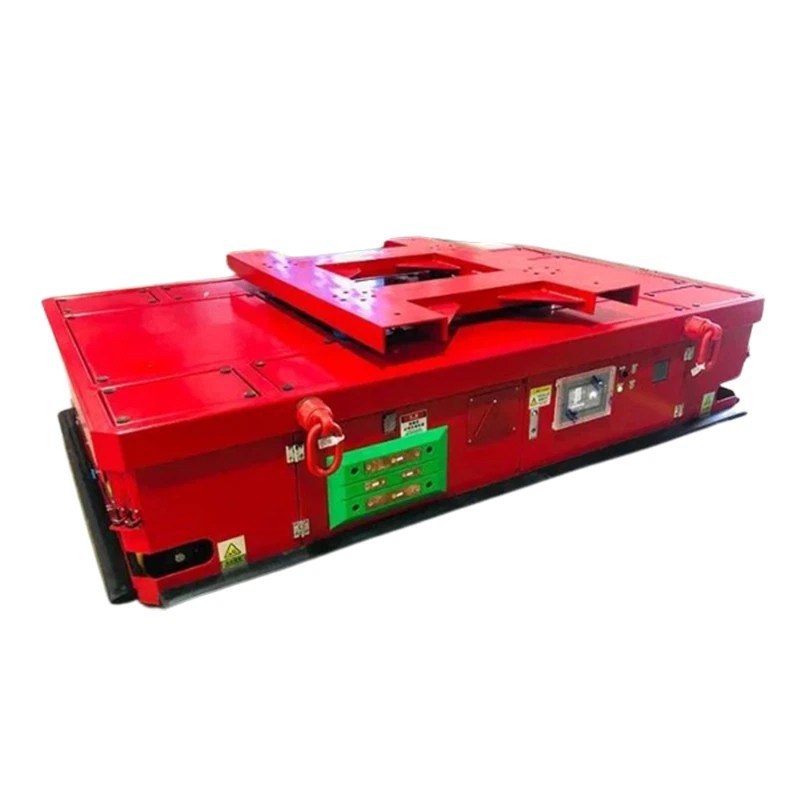

The Automatic Mold Transfer System is a Automatic Mold Transfer System built by Lonyu AGV, rated to carry 10 t. It has a body measuring 2580 mm long, 1600 mm wide and 675 mm high and an unladen mass of 2.2 t. Mechanically, suspension is spring. Lonyu describes its movement as: manual remote control + self-operation. It navigates by magnetic strip, laser SLAM, qr code. From Lonyu's product page: Automatic Mold Transfer System AGV for Industrial Handling. The AGV trolley runs along the transfer trolley channel to transport the mold from the smelting area to the sand dropping area, and a mold buffer area is set in the middle after the mold is lifted away, a signal is given to transport the pallet back to the smelting area to wait.
FEATURES
- Rated load: 10 t
- Unladen mass: 2.2 t
- Body dimensions: 2580 x 1600 x 675 mm
- Drive type: super drive
- Navigation: magnetic strip, laser SLAM, QR code
- Suspension: spring
- Turning radius: 1500
- Linkage mode: single vehicle
- Explosion-proof: no
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2200 kg |
|---|---|
| Dimensions | L 2.58 m × W 1.6 m × H 675 mm |
| Payload | 10000 kg |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2200 kg |
|---|---|
| Dimensions | L 2.58 m × W 1.6 m × H 675 mm |
| Payload | 10000 kg |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Automatic Mold Transfer System?
The Automatic Mold Transfer System is a Automatic Mold Transfer System built by Lonyu AGV, rated to carry 10 t. It has a body measuring 2580 mm long, 1600 mm wide and 675 mm high and an unladen mass of 2.2 t. Mechanically, suspension is spring. Lonyu describes its movement as: manual remote control + self-operation.
Who makes the Automatic Mold Transfer System?
The Automatic Mold Transfer System is made by Lonyu Agv.
How much does the Automatic Mold Transfer System cost?
Lonyu Agv has not publicly announced pricing for the Automatic Mold Transfer System. You can enquire through RobotAIGeek for current pricing.
What is the Automatic Mold Transfer System used for?
The Automatic Mold Transfer System is designed for transport.
What is the payload capacity of the Automatic Mold Transfer System?
The Automatic Mold Transfer System has a payload capacity of 10,000 kg.
How much does the Automatic Mold Transfer System weigh?
The Automatic Mold Transfer System weighs 2,200 kg.
