DESCRIPTION

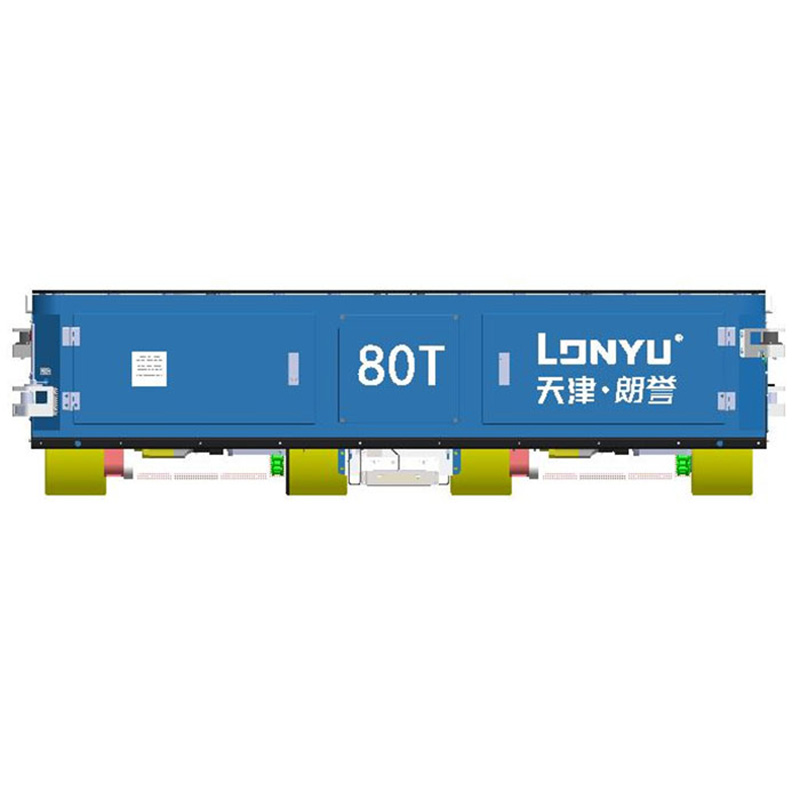

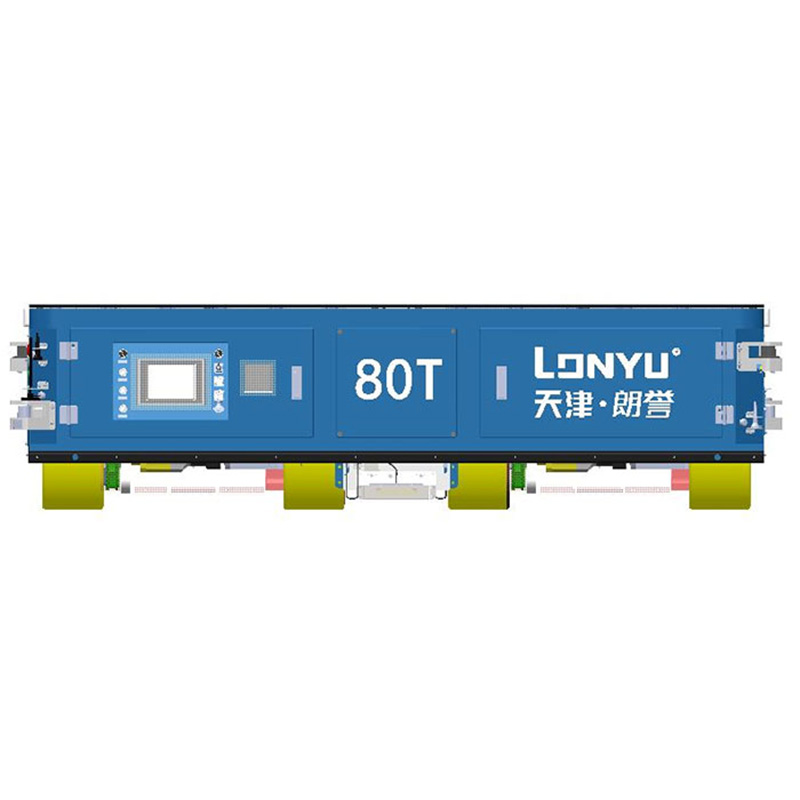

The 80 t Trackless Transfer Cart 24391A is a Trackless Transfer Cart built by Lonyu AGV, rated to carry 80 t. Lonyu designates it 24391A. It has a body measuring 8000 mm long, 2520 mm wide and 670 mm high and an unladen mass of 12 t. Mechanically, suspension is hydraulic suspension. Lonyu describes its movement as: Forward, reverse, left and right. It navigates by laser navigation + magnetic stripe, is commanded by automatic, positions to ±10. For power and motion, it runs on Lithium iron phosphate battery, battery life: 3 hours unloaded and fully loaded; charging is automatic side charging + manual charging; travel speed is 25m/min unloaded, 25m/min fully loaded. On safety, safety is handled by self-developed laser obstacle avoidance sensor + contact collision avoidance + audible and visual warning + emergency stop; braking distance is ≤400mm when fully loaded, ≤300mm when unloaded; ingress protection is IP54. Lonyu rates it for indoor and outdoor. Stated applications: Energy storage container handling. Lifting stroke is 200mm.
FEATURES
- Rated load: 80 t
- Unladen mass: 12 t
- Body dimensions: 8000 x 2520 x 670 mm
- Lifting stroke: 200mm
- Navigation: Laser navigation + magnetic stripe
- Control: Automatic
- Positioning accuracy: ±10
- Travel speed: 25m/min unloaded, 25m/min fully loaded
- Battery: Lithium iron phosphate battery, battery life: 3 hours unloaded and fully loaded
- Charging: Automatic side charging + manual charging
- Suspension: Hydraulic suspension
- Braking distance: ≤400mm when fully loaded, ≤300mm when unloaded
- Protection rating: IP54
- Safety systems: Self-developed laser obstacle avoidance sensor + contact collision avoidance + audible and visual warning + emergency stop
- Operating environment: Indoor and outdoor
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 12000 kg |
|---|---|
| Dimensions | L 8 m × W 2.52 m × H 670 mm |
| Payload | 80000 kg |
| Mobility | |
| Speed | 1.5 km/h |
| Environment | Indoor and outdoor |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 12000 kg |
|---|---|
| Dimensions | L 8 m × W 2.52 m × H 670 mm |
| Payload | 80000 kg |
| Mobility | |
| Speed | 1.5 km/h |
| Environment | Indoor and outdoor |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 80 t Trackless Transfer Cart 24391A?
The 80 t Trackless Transfer Cart 24391A is a Trackless Transfer Cart built by Lonyu AGV, rated to carry 80 t. Lonyu designates it 24391A. It has a body measuring 8000 mm long, 2520 mm wide and 670 mm high and an unladen mass of 12 t. Mechanically, suspension is hydraulic suspension.
Who makes the 80 t Trackless Transfer Cart 24391A?
The 80 t Trackless Transfer Cart 24391A is made by Lonyu Agv.
How much does the 80 t Trackless Transfer Cart 24391A cost?
Lonyu Agv has not publicly announced pricing for the 80 t Trackless Transfer Cart 24391A. You can enquire through RobotAIGeek for current pricing.
What is the 80 t Trackless Transfer Cart 24391A used for?
The 80 t Trackless Transfer Cart 24391A is designed for transport.
What is the payload capacity of the 80 t Trackless Transfer Cart 24391A?
The 80 t Trackless Transfer Cart 24391A has a payload capacity of 80,000 kg.
How much does the 80 t Trackless Transfer Cart 24391A weigh?
The 80 t Trackless Transfer Cart 24391A weighs 12,000 kg.
How fast is the 80 t Trackless Transfer Cart 24391A?
The 80 t Trackless Transfer Cart 24391A can move at speeds of up to 1.5 km/h.
