DESCRIPTION
Flexible Assembly Line AGV is an Industrial-Robot from Lonyu Agv. It is built for Transport. Key figures: 12000 kg, 50000 kg payload.

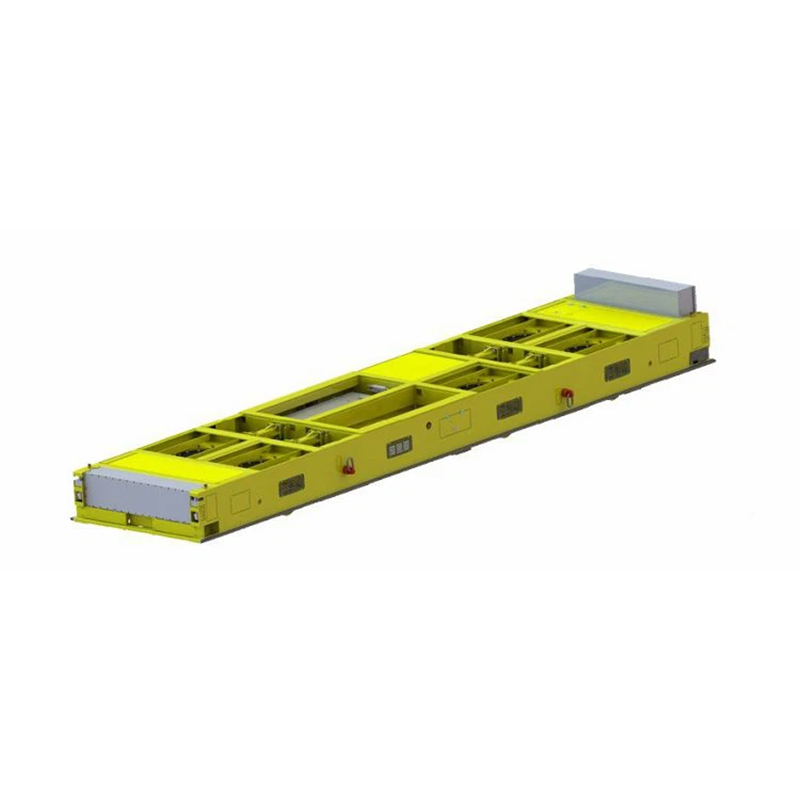

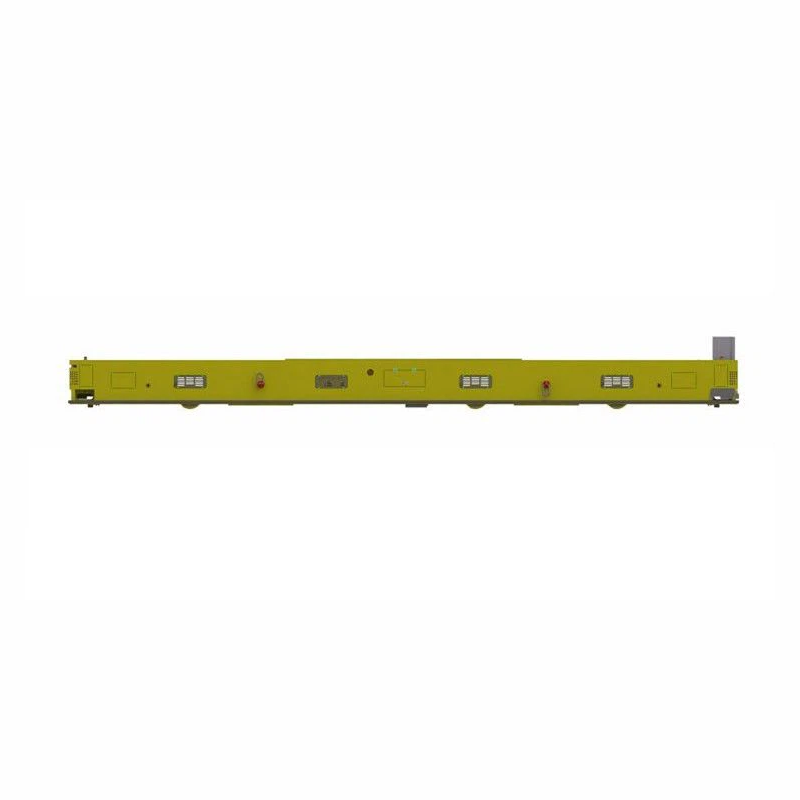

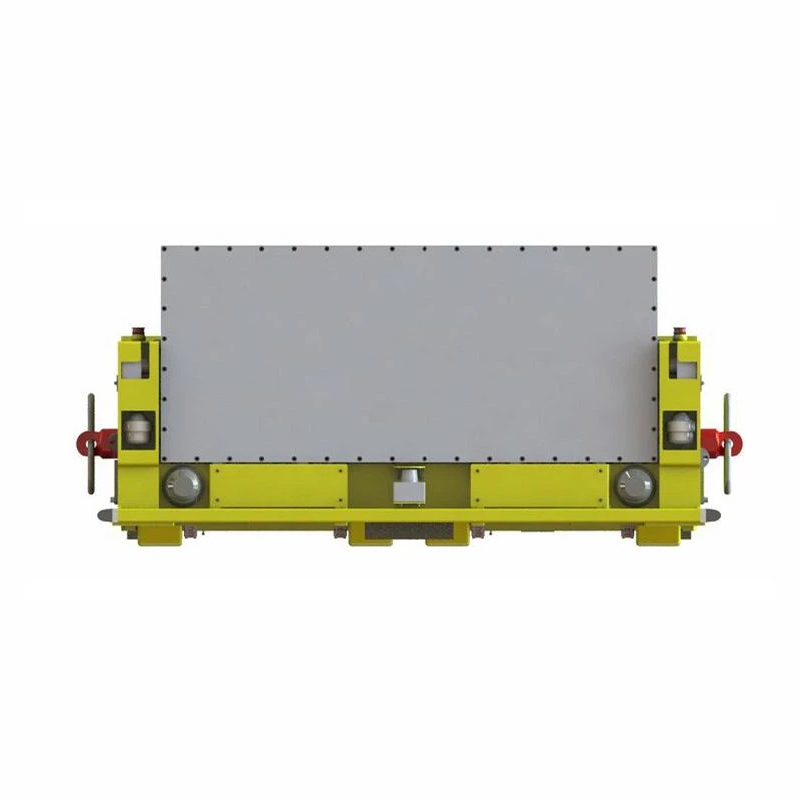

The Flexible Assembly Line AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 50 t. Lonyu designates it LY-AK-50T-80B. It has a body measuring 8200 mm long, 1816 mm wide and 885 mm high and an unladen mass of 12 t. Mechanically, the chassis uses tubesheet; the drive layout is 6-drive; suspension is passive hydraulics. Drive is superdrive. It navigates by magnetic stripe, is commanded by manual remote + automatic operation. For power and motion, it runs at 96V.
FEATURES
- Rated load: 50 t
- Unladen mass: 12 t
- Body dimensions: 8200 x 1816 x 885 mm
- Chassis: Tubesheet
- Drive wheels: 6-Drive
- Drive type: Superdrive
- Navigation: Magnetic Stripe
- Control: Manual Remote + Automatic Operation
- Voltage: 96V
- Suspension: Passive Hydraulics
- Turning radius: 5156mm
- Drive-unit load rating: 10T
- Castors: 0
- Linkage mode: Single
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 12000 kg |
|---|---|
| Dimensions | L 8.2 m × W 1.82 m × H 885 mm |
| Payload | 50000 kg |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 12000 kg |
|---|---|
| Dimensions | L 8.2 m × W 1.82 m × H 885 mm |
| Payload | 50000 kg |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Flexible Assembly Line AGV?
The Flexible Assembly Line AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 50 t. Lonyu designates it LY-AK-50T-80B. It has a body measuring 8200 mm long, 1816 mm wide and 885 mm high and an unladen mass of 12 t.
Who makes the Flexible Assembly Line AGV?
The Flexible Assembly Line AGV is made by Lonyu Agv, a robotics company based in China.
How much does the Flexible Assembly Line AGV cost?
Lonyu Agv has not publicly announced pricing for the Flexible Assembly Line AGV. You can enquire through RobotAIGeek for current pricing.
What is the Flexible Assembly Line AGV used for?
The Flexible Assembly Line AGV is designed for transport.
What is the payload capacity of the Flexible Assembly Line AGV?
The Flexible Assembly Line AGV has a payload capacity of 50,000 kg.
How much does the Flexible Assembly Line AGV weigh?
The Flexible Assembly Line AGV weighs 12,000 kg.
