DESCRIPTION

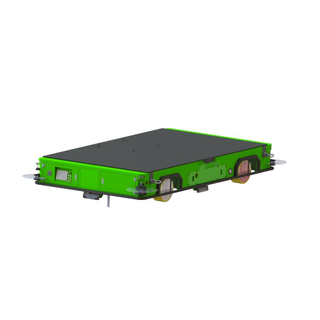

The 60 t Heavy-duty AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 50 t. Lonyu designates it LY-1-60T-48-A. It has a body measuring 4500 mm long, 2522 mm wide and 670 mm high and an unladen mass of 8 t. Mechanically, the chassis uses differential drive; suspension is hydraulic suspension. Lonyu describes its movement as: The whole vehicle can realize forward and backward straight driving, left and right straight driving, rotation in place, and turning movement in the plane under no-load and full-load conditions. For power and motion, it runs on Lithium iron phosphate battery, battery life 6 hours each when empty and full; charging is automatic charging; travel speed is 0-30m/min. On safety, safety is handled by laser obstacle avoidance sensor + contact anti-collision + sound and light warning + emergency stop; braking distance is Full load braking ≤500mm, no load braking distance ≤300mm; ingress protection is IP44; it climbs gradients of ≤5°. Lonyu rates it for indoor and outdoor operation.
FEATURES
- Rated load: 50 t
- Unladen mass: 8 t
- Body dimensions: 4500 x 2522 x 670 mm
- Chassis: Differential drive
- Travel speed: 0-30m/min
- Battery: Lithium iron phosphate battery, battery life 6 hours each when empty and full
- Charging: Automatic charging
- Suspension: Hydraulic suspension
- Gradeability: ≤5°
- Braking distance: Full load braking ≤500mm, no load braking distance ≤300mm
- Protection rating: IP44
- Safety systems: Laser obstacle avoidance sensor + contact anti-collision + sound and light warning + emergency stop
- Operating environment: Indoor and outdoor operation
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 8000 kg |
|---|---|
| Dimensions | L 4.5 m × W 2.52 m × H 670 mm |
| Payload | 60000 kg |
| Mobility | |
| Speed | 1.8 km/h |
| Environment | Indoor and outdoor operation |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 8000 kg |
|---|---|
| Dimensions | L 4.5 m × W 2.52 m × H 670 mm |
| Payload | 60000 kg |
| Mobility | |
| Speed | 1.8 km/h |
| Environment | Indoor and outdoor operation |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 60 t Heavy-duty AGV?
The 60 t Heavy-duty AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 50 t. Lonyu designates it LY-1-60T-48-A. It has a body measuring 4500 mm long, 2522 mm wide and 670 mm high and an unladen mass of 8 t. Mechanically, the chassis uses differential drive; suspension is hydraulic suspension.
Who makes the 60 t Heavy-duty AGV?
The 60 t Heavy-duty AGV is made by Lonyu Agv.
How much does the 60 t Heavy-duty AGV cost?
Lonyu Agv has not publicly announced pricing for the 60 t Heavy-duty AGV. You can enquire through RobotAIGeek for current pricing.
What is the 60 t Heavy-duty AGV used for?
The 60 t Heavy-duty AGV is designed for transport.
What is the payload capacity of the 60 t Heavy-duty AGV?
The 60 t Heavy-duty AGV has a payload capacity of 60,000 kg.
How much does the 60 t Heavy-duty AGV weigh?
The 60 t Heavy-duty AGV weighs 8,000 kg.
How fast is the 60 t Heavy-duty AGV?
The 60 t Heavy-duty AGV can move at speeds of up to 1.8 km/h.
