DESCRIPTION

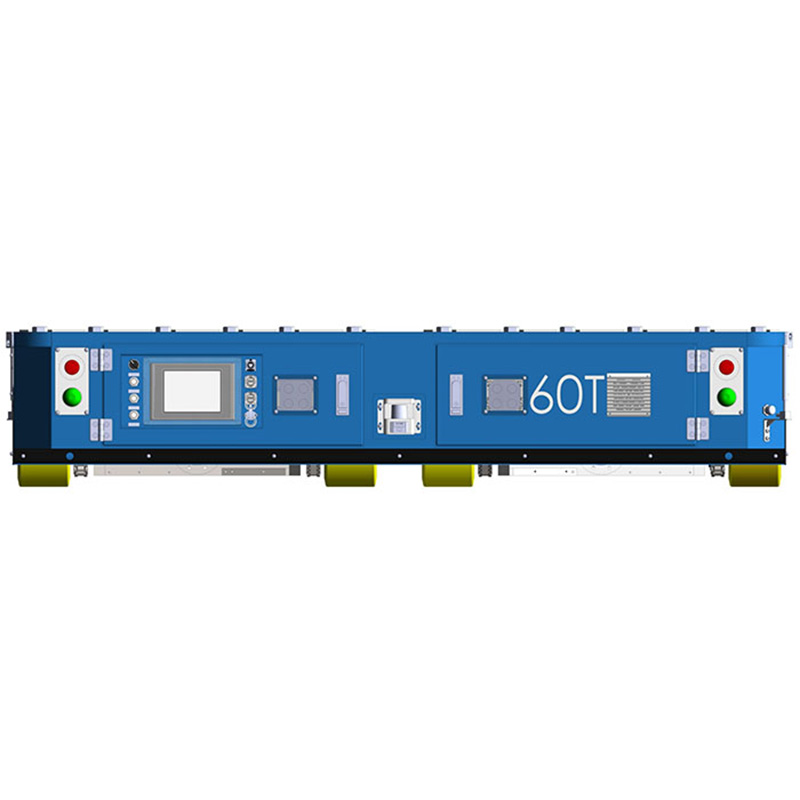

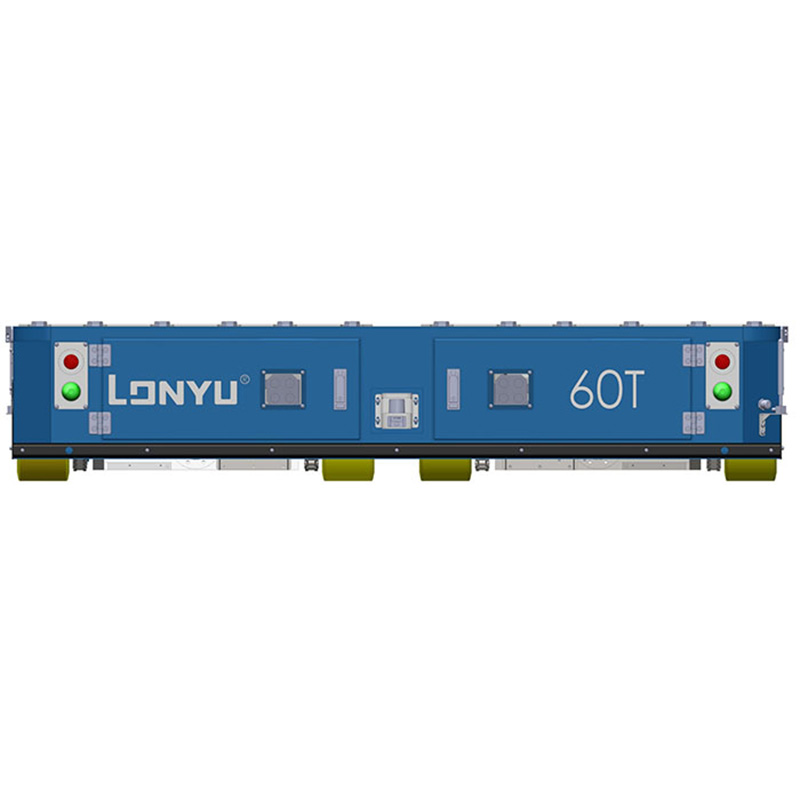

The 60 t Trackless Transfer Cart 24286A is a Trackless Transfer Cart built by Lonyu AGV, rated to carry 60 t. Lonyu designates it 24286A. It has a body measuring 4100 mm long, 2100 mm wide and 420 mm high and an unladen mass of 10 t. Mechanically, suspension is hydraulic suspension. Lonyu describes its movement as: forward, backward, left and right, rotation, diagonal movement, etc. It navigates by manual remote control, is commanded by manual. For power and motion, it runs on Lithium iron phosphate battery, battery life: 3 hours (full load, empty); charging is manual charging; travel speed is 30m/min (no load), 30m/min (full load). On safety, safety is handled by laser obstacle avoidance sensor + contact collision avoidance + audible and visual warning + emergency stop; braking distance is ≤400mm (full load), ≤300mm (no load); ingress protection is IP44; it climbs gradients of ≤3°. Lonyu rates it for indoor. Lifting stroke is 100mm.
FEATURES
- Rated load: 60 t
- Unladen mass: 10 t
- Body dimensions: 4100 x 2100 x 420 mm
- Lifting stroke: 100mm
- Navigation: Manual remote control
- Control: Manual
- Travel speed: 30m/min (no load), 30m/min (full load)
- Battery: Lithium iron phosphate battery, battery life: 3 hours (full load, empty)
- Charging: Manual charging
- Suspension: Hydraulic suspension
- Gradeability: ≤3°
- Braking distance: ≤400mm (full load), ≤300mm (no load)
- Protection rating: IP44
- Safety systems: Laser obstacle avoidance sensor + contact collision avoidance + audible and visual warning + emergency stop
- Operating environment: Indoor
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 10000 kg |
|---|---|
| Dimensions | L 4.1 m × W 2.1 m × H 420 mm |
| Payload | 60000 kg |
| Mobility | |
| Speed | 1.8 km/h |
| Environment | Indoor |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 10000 kg |
|---|---|
| Dimensions | L 4.1 m × W 2.1 m × H 420 mm |
| Payload | 60000 kg |
| Mobility | |
| Speed | 1.8 km/h |
| Environment | Indoor |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 60 t Trackless Transfer Cart 24286A?
The 60 t Trackless Transfer Cart 24286A is a Trackless Transfer Cart built by Lonyu AGV, rated to carry 60 t. Lonyu designates it 24286A. It has a body measuring 4100 mm long, 2100 mm wide and 420 mm high and an unladen mass of 10 t. Mechanically, suspension is hydraulic suspension.
Who makes the 60 t Trackless Transfer Cart 24286A?
The 60 t Trackless Transfer Cart 24286A is made by Lonyu Agv.
How much does the 60 t Trackless Transfer Cart 24286A cost?
Lonyu Agv has not publicly announced pricing for the 60 t Trackless Transfer Cart 24286A. You can enquire through RobotAIGeek for current pricing.
What is the 60 t Trackless Transfer Cart 24286A used for?
The 60 t Trackless Transfer Cart 24286A is designed for transport.
What is the payload capacity of the 60 t Trackless Transfer Cart 24286A?
The 60 t Trackless Transfer Cart 24286A has a payload capacity of 60,000 kg.
How much does the 60 t Trackless Transfer Cart 24286A weigh?
The 60 t Trackless Transfer Cart 24286A weighs 10,000 kg.
How fast is the 60 t Trackless Transfer Cart 24286A?
The 60 t Trackless Transfer Cart 24286A can move at speeds of up to 1.8 km/h.
