DESCRIPTION

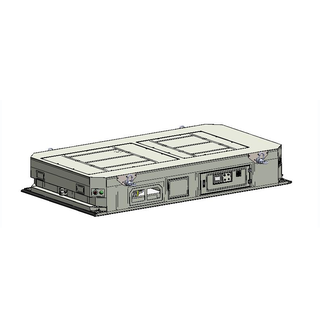

The 30 t Heavy Duty AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 30 t. It has a body measuring 3500 mm long, 2200 mm wide and 600 mm high and an unladen mass of 6 t. Mechanically, the chassis uses differential drive. Lonyu describes its movement as: The whole vehicle can realize forward and backward straight driving, left and right straight driving, rotation in place, and turning in the plane when it is empty or fully loaded. It navigates by magnetic stripe/laser + magnetic stripe/laser + qr code composite navigation. For power and motion, it runs on lithium iron phosphate battery, battery life is 6 hours for empty and full; charging is automatic charging; travel speed is 0-30m/min. On safety, safety is handled by laser obstacle avoidance sensor + contact anti-collision + sound and light warning + emergency stop; braking distance is full load braking ≤500mm, no-load braking distance ≤300mm; it climbs gradients of ≤5°.
FEATURES
- Rated load: 30 t
- Unladen mass: 6 t
- Body dimensions: 3500 x 2200 x 600 mm
- Chassis: differential drive
- Navigation: magnetic stripe/laser + magnetic stripe/laser + QR code composite navigation
- Travel speed: 0-30m/min
- Battery: lithium iron phosphate battery, battery life is 6 hours for empty and full
- Charging: automatic charging
- Gradeability: ≤5°
- Braking distance: full load braking ≤500mm, no-load braking distance ≤300mm
- Safety systems: laser obstacle avoidance sensor + contact anti-collision + sound and light warning + emergency stop
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 6000 kg |
|---|---|
| Dimensions | L 3.5 m × W 2.2 m × H 600 mm |
| Payload | 30000 kg |
| Mobility | |
| Speed | 1.8 km/h |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 6000 kg |
|---|---|
| Dimensions | L 3.5 m × W 2.2 m × H 600 mm |
| Payload | 30000 kg |
| Mobility | |
| Speed | 1.8 km/h |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 30 t Heavy Duty AGV?
The 30 t Heavy Duty AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 30 t. It has a body measuring 3500 mm long, 2200 mm wide and 600 mm high and an unladen mass of 6 t. Mechanically, the chassis uses differential drive.
Who makes the 30 t Heavy Duty AGV?
The 30 t Heavy Duty AGV is made by Lonyu Agv.
How much does the 30 t Heavy Duty AGV cost?
Lonyu Agv has not publicly announced pricing for the 30 t Heavy Duty AGV. You can enquire through RobotAIGeek for current pricing.
What is the 30 t Heavy Duty AGV used for?
The 30 t Heavy Duty AGV is designed for transport.
What is the payload capacity of the 30 t Heavy Duty AGV?
The 30 t Heavy Duty AGV has a payload capacity of 30,000 kg.
How much does the 30 t Heavy Duty AGV weigh?
The 30 t Heavy Duty AGV weighs 6,000 kg.
How fast is the 30 t Heavy Duty AGV?
The 30 t Heavy Duty AGV can move at speeds of up to 1.8 km/h.
