DESCRIPTION

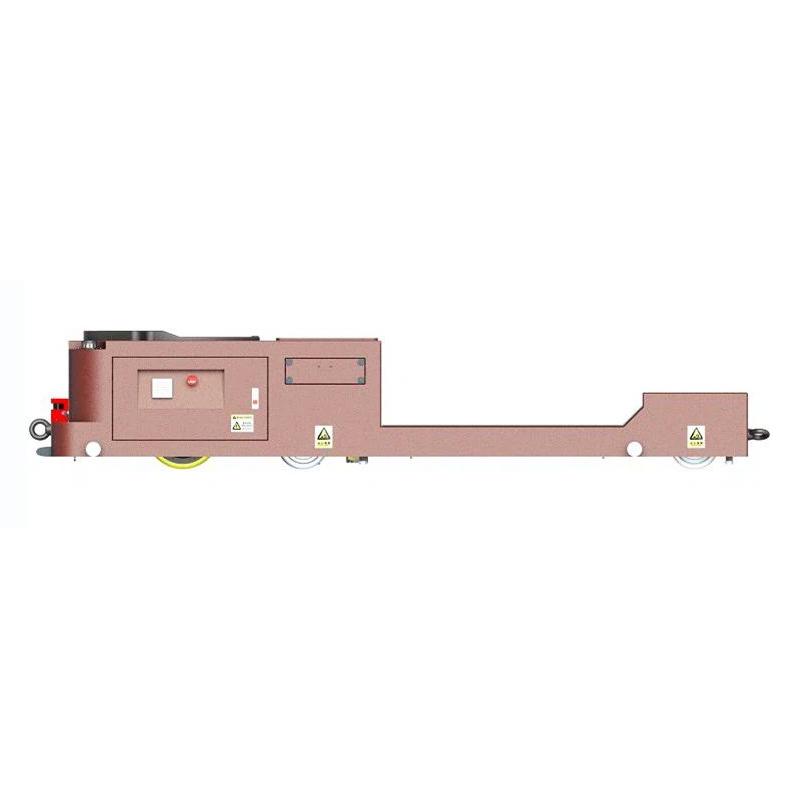

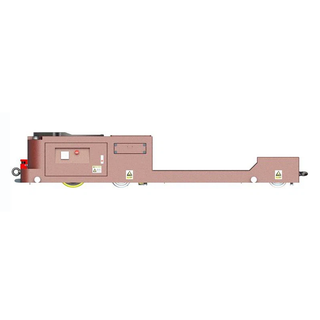

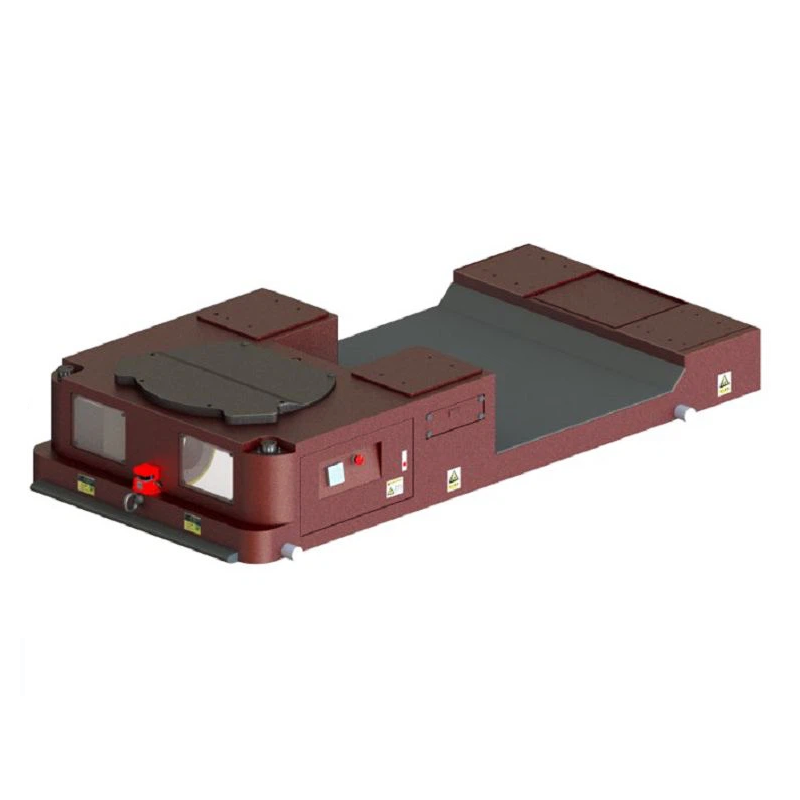

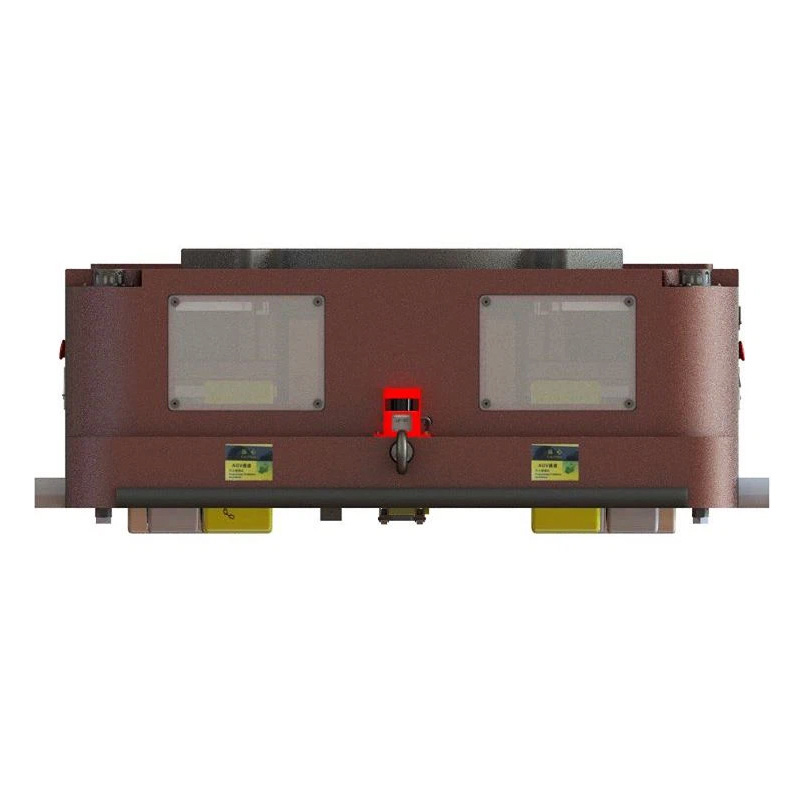

The Natural Navigation Automated Guided Vehicles is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 20 t. Lonyu designates it LY-AK-20T-1-4B. It has a body measuring 1800 mm long, 1300 mm wide and 600 mm high and an unladen mass of 1.3 t. Mechanically, the chassis uses tubesheet; the drive layout is 2-drive; suspension is spring. Drive is superdrive. It navigates by magnetic stripe, is commanded by manual remote + automatic operation. For power and motion, it runs at 48V.
FEATURES
- Rated load: 20 t
- Unladen mass: 1.3 t
- Body dimensions: 1800 x 1300 x 600 mm
- Chassis: Tubesheet
- Drive wheels: 2-Drive
- Drive type: Superdrive
- Navigation: Magnetic Stripe
- Control: Manual Remote + Automatic Operation
- Voltage: 48V
- Suspension: Spring
- Turning radius: 2061mm
- Drive-unit load rating: 10T
- Castors: 4
- Linkage mode: Single AGV
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1300 kg |
|---|---|
| Dimensions | L 1.8 m × W 1.3 m × H 600 mm |
| Payload | 20000 kg |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1300 kg |
|---|---|
| Dimensions | L 1.8 m × W 1.3 m × H 600 mm |
| Payload | 20000 kg |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Natural Navigation Automated Guided Vehicles?
The Natural Navigation Automated Guided Vehicles is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 20 t. Lonyu designates it LY-AK-20T-1-4B. It has a body measuring 1800 mm long, 1300 mm wide and 600 mm high and an unladen mass of 1.3 t.
Who makes the Natural Navigation Automated Guided Vehicles?
The Natural Navigation Automated Guided Vehicles is made by Lonyu Agv.
How much does the Natural Navigation Automated Guided Vehicles cost?
Lonyu Agv has not publicly announced pricing for the Natural Navigation Automated Guided Vehicles. You can enquire through RobotAIGeek for current pricing.
What is the Natural Navigation Automated Guided Vehicles used for?
The Natural Navigation Automated Guided Vehicles is designed for transport.
What is the payload capacity of the Natural Navigation Automated Guided Vehicles?
The Natural Navigation Automated Guided Vehicles has a payload capacity of 20,000 kg.
How much does the Natural Navigation Automated Guided Vehicles weigh?
The Natural Navigation Automated Guided Vehicles weighs 1,300 kg.
