DESCRIPTION

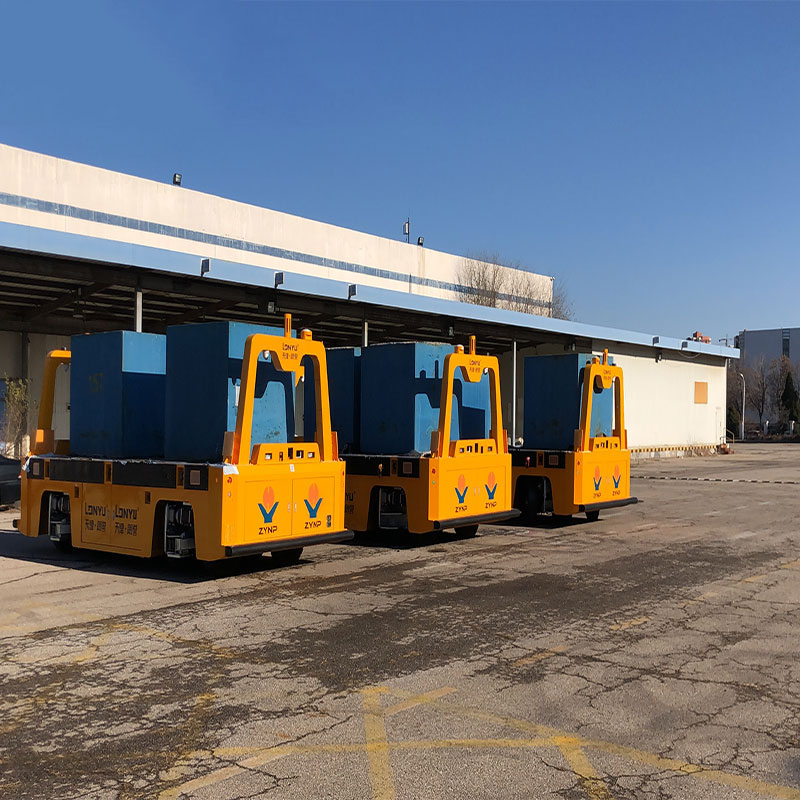

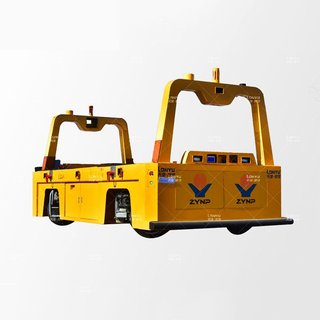

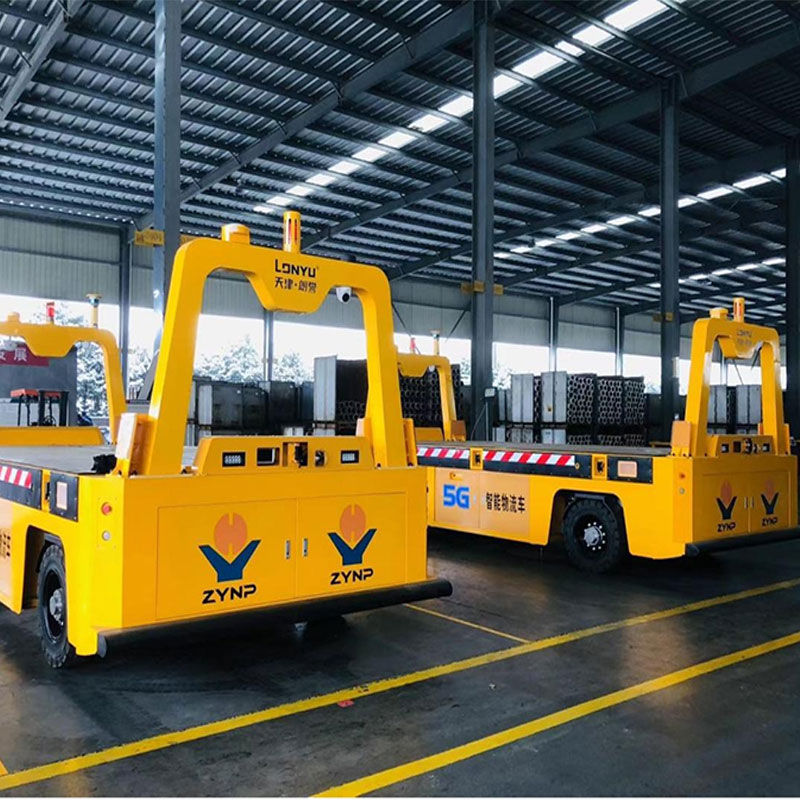

The 20 t Outdoor AGV Transfer Cart is a Outdoor Unmanned AGV built by Lonyu AGV, rated to carry 20 t (the figure Lonyu gives in the product name; the page carries no separate rated-load row). Lonyu designates it LY-AK-20T-4-04-B-502. It has a body measuring 6052 mm long, 2700 mm wide and 1223 mm high and an unladen mass of 13 t. Mechanically, suspension is spring. Drive is super drive. It navigates by gps+inertial navigation+visual navigation, is commanded by yes.
FEATURES
- Rated load: 20 t (per Lonyu's model name)
- Unladen mass: 13 t
- Body dimensions: 6052 x 2700 x 1223 mm
- Drive type: super drive
- Navigation: GPS+inertial navigation+visual navigation
- Control: yes
- Suspension: spring
- Turning radius: 1792.5
- Explosion-proof: no
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 13000 kg |
|---|---|
| Dimensions | L 6.05 m × W 2.7 m × H 1.22 m |
| Payload | 20000 kg |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 13000 kg |
|---|---|
| Dimensions | L 6.05 m × W 2.7 m × H 1.22 m |
| Payload | 20000 kg |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 20 t Outdoor AGV Transfer Cart?
The 20 t Outdoor AGV Transfer Cart is a Outdoor Unmanned AGV built by Lonyu AGV, rated to carry 20 t (the figure Lonyu gives in the product name; the page carries no separate rated-load row). Lonyu designates it LY-AK-20T-4-04-B-502.
Who makes the 20 t Outdoor AGV Transfer Cart?
The 20 t Outdoor AGV Transfer Cart is made by Lonyu Agv.
How much does the 20 t Outdoor AGV Transfer Cart cost?
Lonyu Agv has not publicly announced pricing for the 20 t Outdoor AGV Transfer Cart. You can enquire through RobotAIGeek for current pricing.
What is the 20 t Outdoor AGV Transfer Cart used for?
The 20 t Outdoor AGV Transfer Cart is designed for transport.
What is the payload capacity of the 20 t Outdoor AGV Transfer Cart?
The 20 t Outdoor AGV Transfer Cart has a payload capacity of 20,000 kg.
How much does the 20 t Outdoor AGV Transfer Cart weigh?
The 20 t Outdoor AGV Transfer Cart weighs 13,000 kg.
