DESCRIPTION

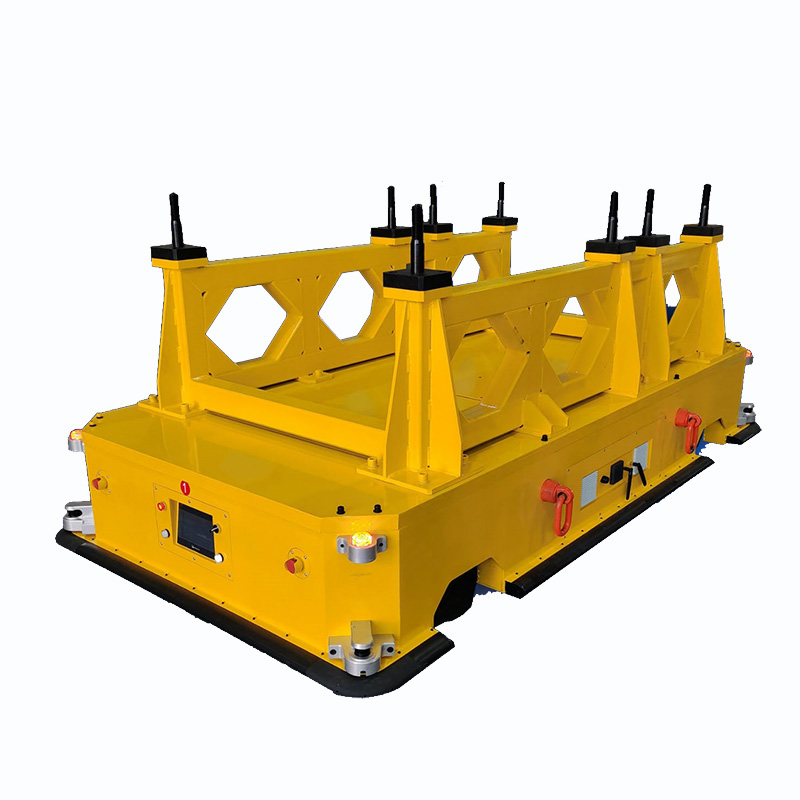

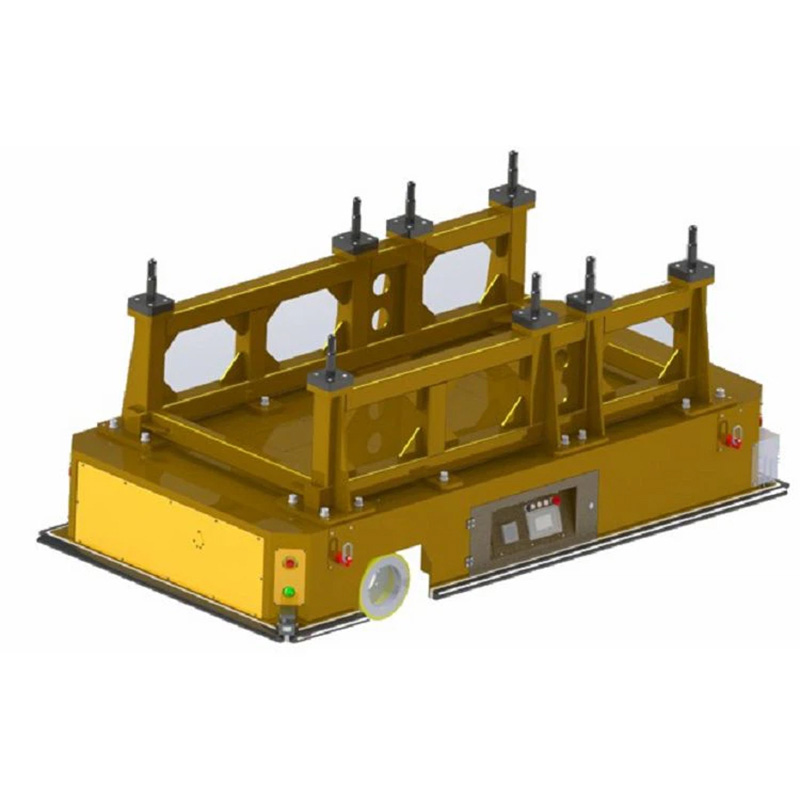

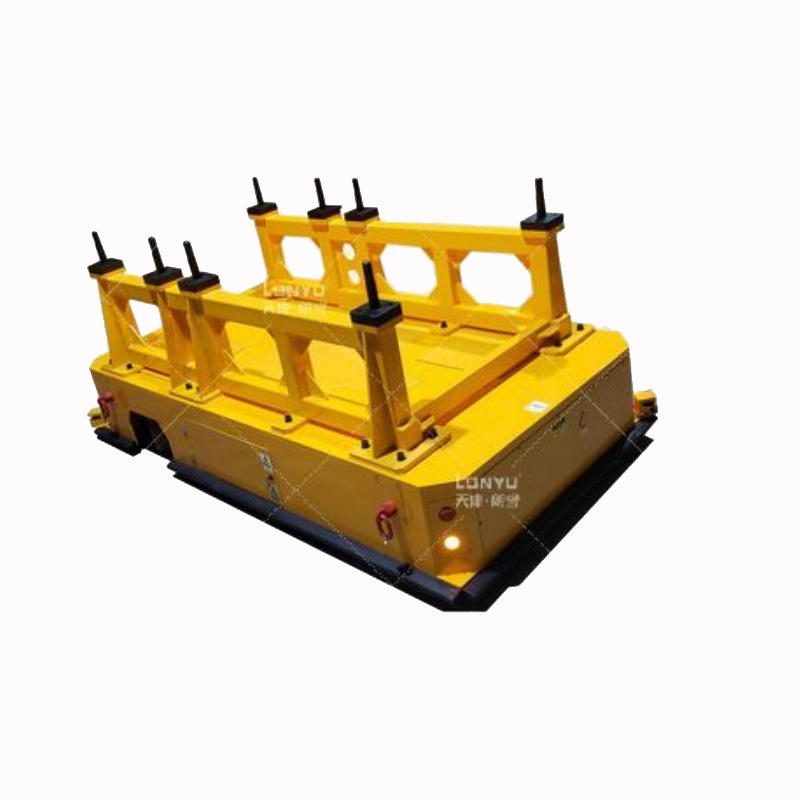

The 14 t Omni Direction AGV is a Omnidirectional Lifting AGV built by Lonyu AGV, rated to carry 14 t. Lonyu designates it LY-AK-14T-2-2B. It has a body measuring 3000 mm long, 1630 mm wide and 1325 mm high and an unladen mass of 3.5 t. Mechanically, the chassis uses board; the drive layout is 2-drive; suspension is spring. Drive is superdrive. It navigates by magnetic stripe, is commanded by manual remote + automatic operation. For power and motion, it runs at 48V.
FEATURES
- Rated load: 14 t
- Unladen mass: 3.5 t
- Body dimensions: 3000 x 1630 x 1325 mm
- Chassis: Board
- Drive wheels: 2-Drive
- Drive type: Superdrive
- Navigation: Magnetic Stripe
- Control: Manual Remote + Automatic Operation
- Voltage: 48V
- Suspension: Spring
- Drive-unit load rating: 5T
- Castors: 2
- Linkage mode: Single
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 3500 kg |
|---|---|
| Dimensions | L 3 m × W 1.63 m × H 1.32 m |
| Payload | 14000 kg |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 3500 kg |
|---|---|
| Dimensions | L 3 m × W 1.63 m × H 1.32 m |
| Payload | 14000 kg |
Images



Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 14 t Omni Direction AGV?
The 14 t Omni Direction AGV is a Omnidirectional Lifting AGV built by Lonyu AGV, rated to carry 14 t. Lonyu designates it LY-AK-14T-2-2B. It has a body measuring 3000 mm long, 1630 mm wide and 1325 mm high and an unladen mass of 3.5 t.
Who makes the 14 t Omni Direction AGV?
The 14 t Omni Direction AGV is made by Lonyu Agv.
How much does the 14 t Omni Direction AGV cost?
Lonyu Agv has not publicly announced pricing for the 14 t Omni Direction AGV. You can enquire through RobotAIGeek for current pricing.
What is the 14 t Omni Direction AGV used for?
The 14 t Omni Direction AGV is designed for transport.
What is the payload capacity of the 14 t Omni Direction AGV?
The 14 t Omni Direction AGV has a payload capacity of 14,000 kg.
How much does the 14 t Omni Direction AGV weigh?
The 14 t Omni Direction AGV weighs 3,500 kg.
