DESCRIPTION

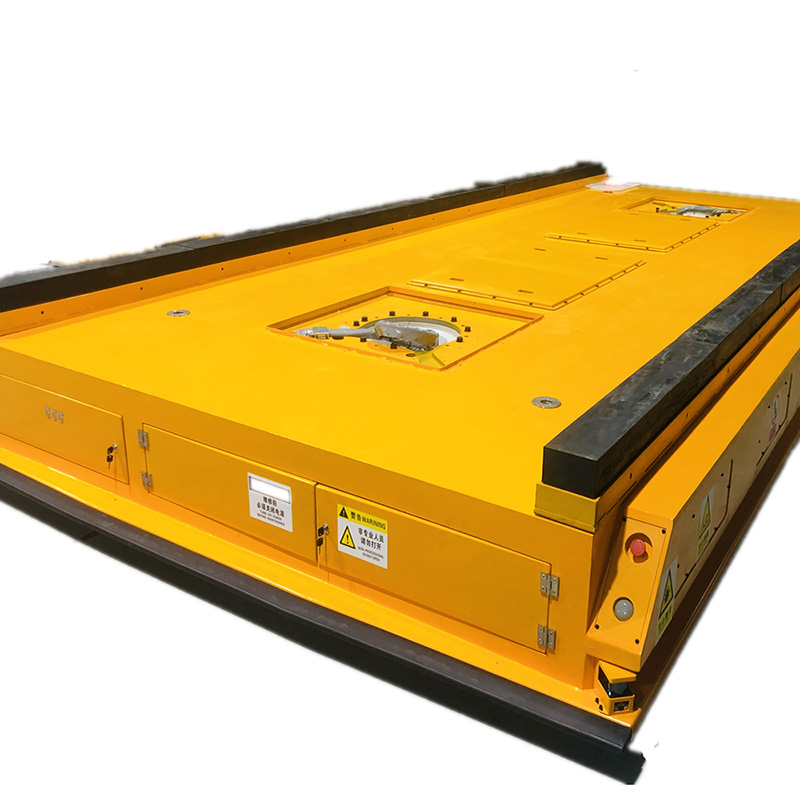

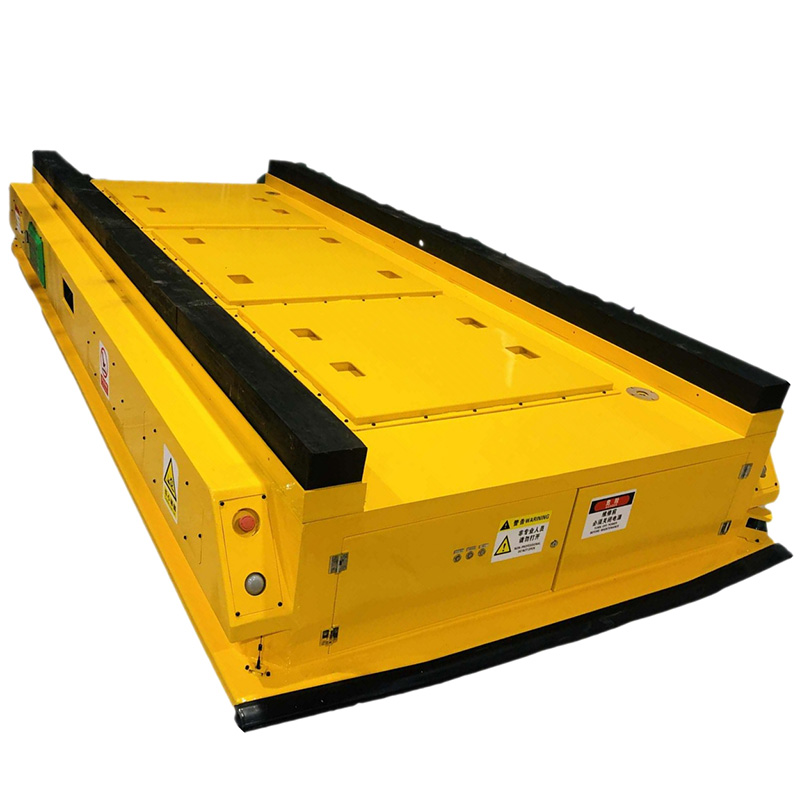

The 16 t Omni Directional Lift AGV is a Omnidirectional Lifting AGV built by Lonyu AGV, rated to carry 16 t. Lonyu designates it LY-AK-16T-2-4A. It has a body measuring 4000 mm long, 2000 mm wide and 550 mm high and an unladen mass of 3.5 t. Mechanically, the chassis uses tubesheet; the drive layout is 2-drive; suspension is spring. Drive is superdrive. It navigates by magnetic stripe, is commanded by manual remote + automatic operation. For power and motion, it runs at 48V.
FEATURES
- Rated load: 16 t
- Unladen mass: 3.5 t
- Body dimensions: 4000 x 2000 x 550 mm
- Chassis: Tubesheet
- Drive wheels: 2-Drive
- Drive type: Superdrive
- Navigation: Magnetic Stripe
- Control: Manual Remote + Automatic Operation
- Voltage: 48V
- Suspension: Spring
- Turning radius: 1125mm
- Drive-unit load rating: 10T
- Castors: 4
- Linkage mode: Single AGV
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 3500 kg |
|---|---|
| Dimensions | L 4 m × W 2 m × H 550 mm |
| Payload | 16000 kg |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 3500 kg |
|---|---|
| Dimensions | L 4 m × W 2 m × H 550 mm |
| Payload | 16000 kg |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 16 t Omni Directional Lift AGV?
The 16 t Omni Directional Lift AGV is a Omnidirectional Lifting AGV built by Lonyu AGV, rated to carry 16 t. Lonyu designates it LY-AK-16T-2-4A. It has a body measuring 4000 mm long, 2000 mm wide and 550 mm high and an unladen mass of 3.5 t.
Who makes the 16 t Omni Directional Lift AGV?
The 16 t Omni Directional Lift AGV is made by Lonyu Agv.
How much does the 16 t Omni Directional Lift AGV cost?
Lonyu Agv has not publicly announced pricing for the 16 t Omni Directional Lift AGV. You can enquire through RobotAIGeek for current pricing.
What is the 16 t Omni Directional Lift AGV used for?
The 16 t Omni Directional Lift AGV is designed for transport.
What is the payload capacity of the 16 t Omni Directional Lift AGV?
The 16 t Omni Directional Lift AGV has a payload capacity of 16,000 kg.
How much does the 16 t Omni Directional Lift AGV weigh?
The 16 t Omni Directional Lift AGV weighs 3,500 kg.
