DESCRIPTION

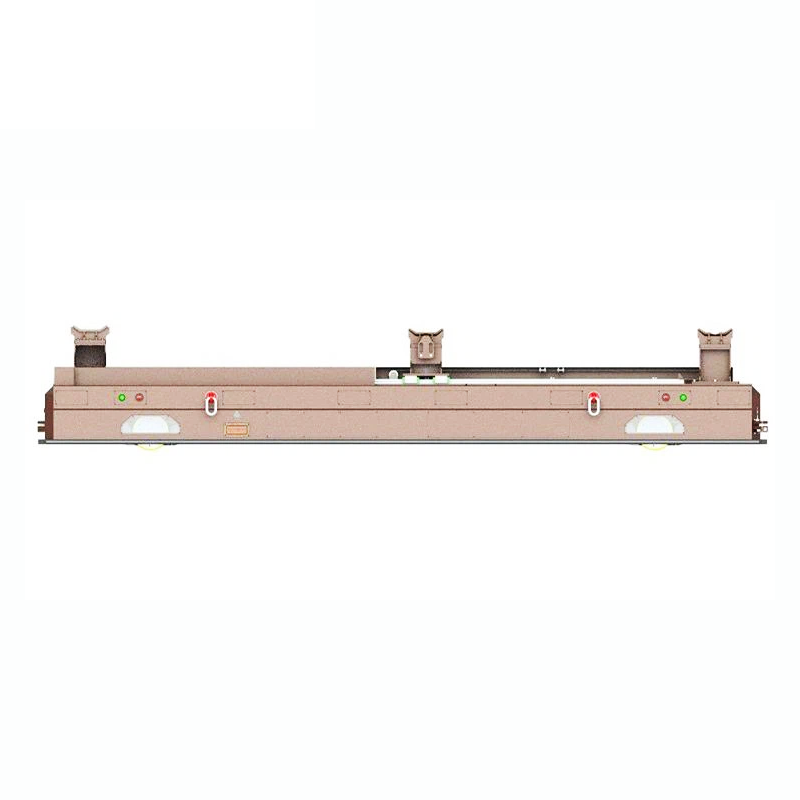

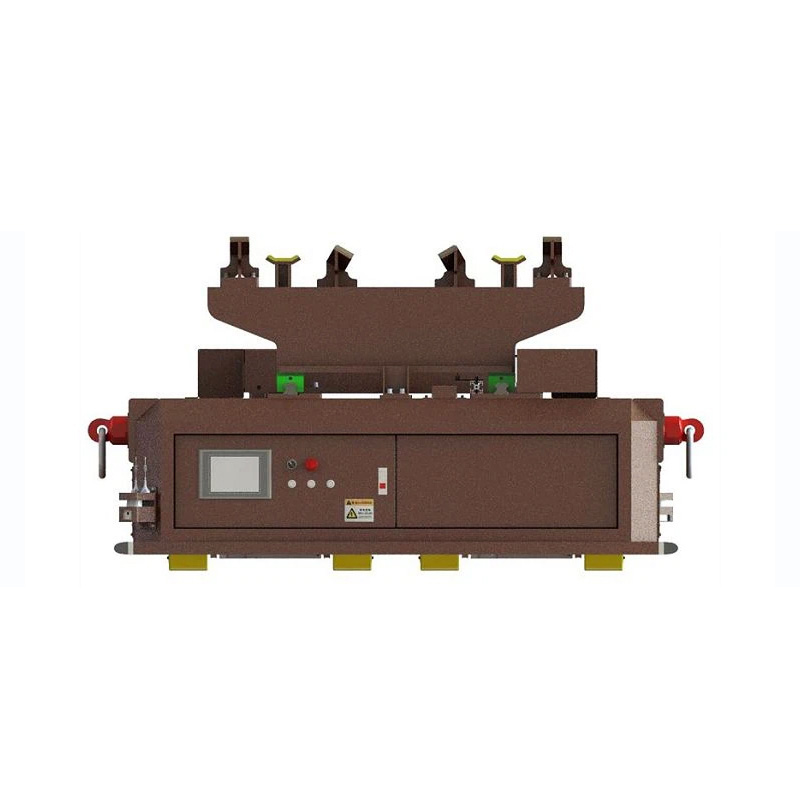

The Outdoor Heavy Duty Navigation AGV is a Outdoor Unmanned AGV built by Lonyu AGV, rated to carry 15 t. Lonyu designates it LK-AK-15T-4-0-B. It has a body measuring 6016 mm long, 1912 mm wide and 1011 mm high and an unladen mass of 4 t. Mechanically, the chassis uses tubesheet; the drive layout is 4-drive; suspension is spring. Drive is superdrive. It navigates by magnetic stripe, is commanded by manual remote + automatic operation. For power and motion, it runs at 48V.
FEATURES
- Rated load: 15 t
- Unladen mass: 4 t
- Body dimensions: 6016 x 1912 x 1011 mm
- Chassis: Tubesheet
- Drive wheels: 4-Drive
- Drive type: Superdrive
- Navigation: Magnetic Stripe
- Control: Manual Remote + Automatic Operation
- Voltage: 48V
- Suspension: Spring
- Turning radius: 2075mm
- Drive-unit load rating: 5T
- Castors: 0
- Linkage mode: Single AGV
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 4000 kg |
|---|---|
| Dimensions | L 6.02 m × W 1.91 m × H 1.01 m |
| Payload | 15000 kg |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 4000 kg |
|---|---|
| Dimensions | L 6.02 m × W 1.91 m × H 1.01 m |
| Payload | 15000 kg |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Outdoor Heavy Duty Navigation AGV?
The Outdoor Heavy Duty Navigation AGV is a Outdoor Unmanned AGV built by Lonyu AGV, rated to carry 15 t. Lonyu designates it LK-AK-15T-4-0-B. It has a body measuring 6016 mm long, 1912 mm wide and 1011 mm high and an unladen mass of 4 t.
Who makes the Outdoor Heavy Duty Navigation AGV?
The Outdoor Heavy Duty Navigation AGV is made by Lonyu Agv.
How much does the Outdoor Heavy Duty Navigation AGV cost?
Lonyu Agv has not publicly announced pricing for the Outdoor Heavy Duty Navigation AGV. You can enquire through RobotAIGeek for current pricing.
What is the Outdoor Heavy Duty Navigation AGV used for?
The Outdoor Heavy Duty Navigation AGV is designed for transport.
What is the payload capacity of the Outdoor Heavy Duty Navigation AGV?
The Outdoor Heavy Duty Navigation AGV has a payload capacity of 15,000 kg.
How much does the Outdoor Heavy Duty Navigation AGV weigh?
The Outdoor Heavy Duty Navigation AGV weighs 4,000 kg.
