DESCRIPTION
Transport Series Forklift Robot (FMR) is an Industrial-Robot from Hangcha. It is built for Intralogistics, Material-Handling, Transport. Key figures: 360 min runtime, 6000 kg payload.

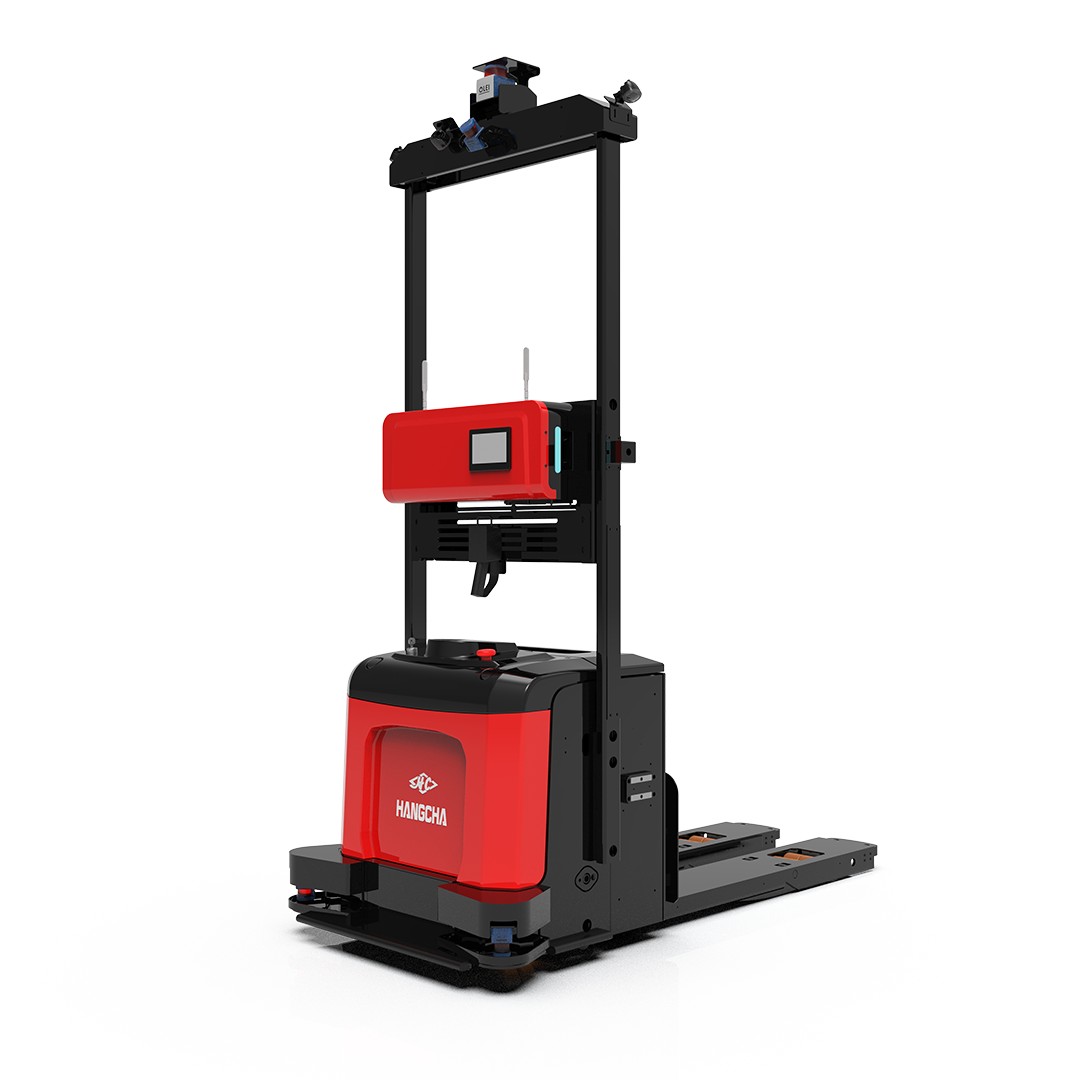

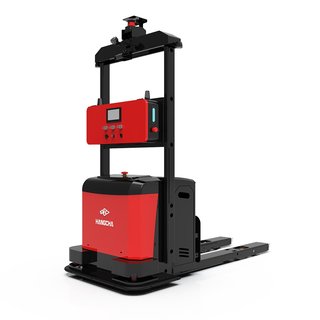

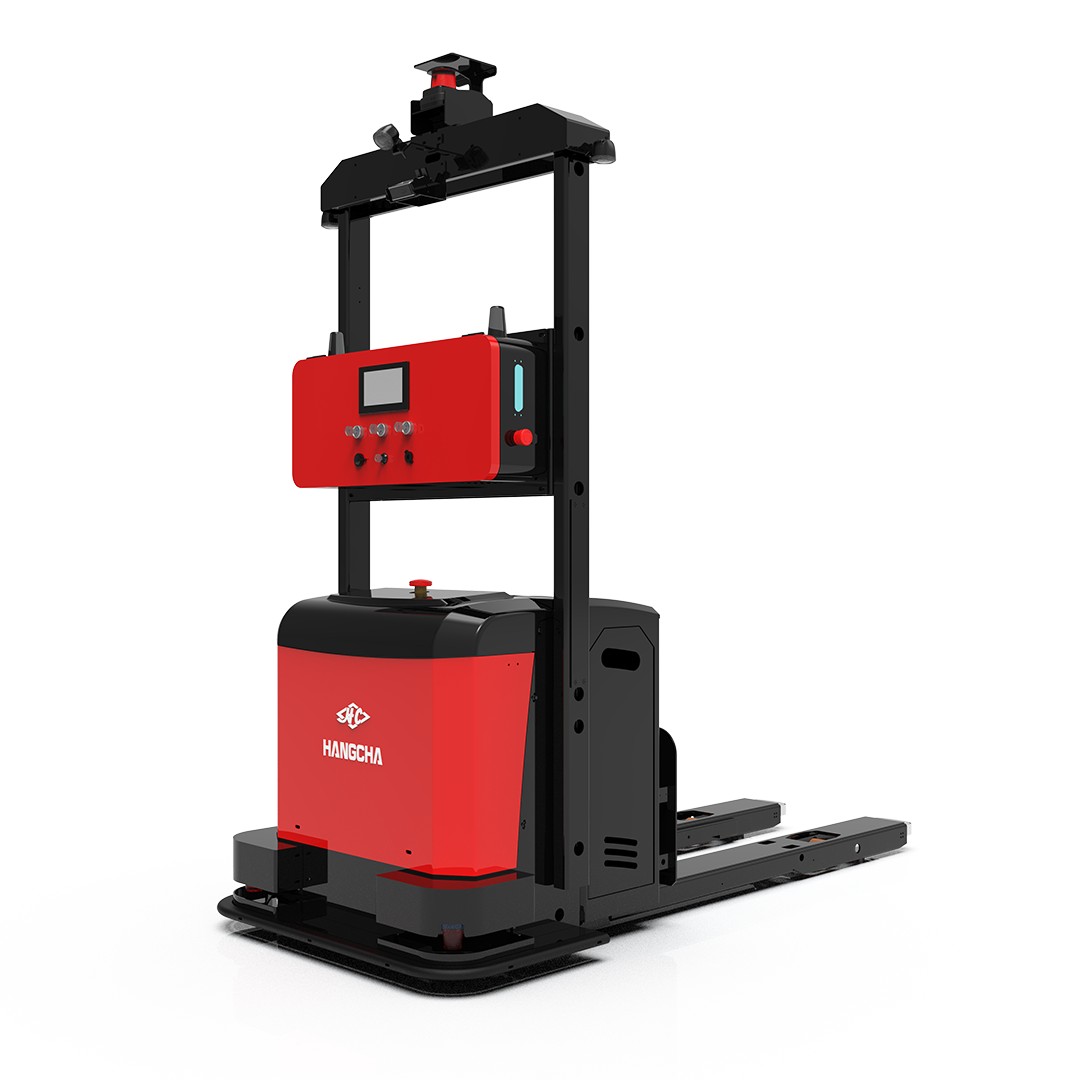

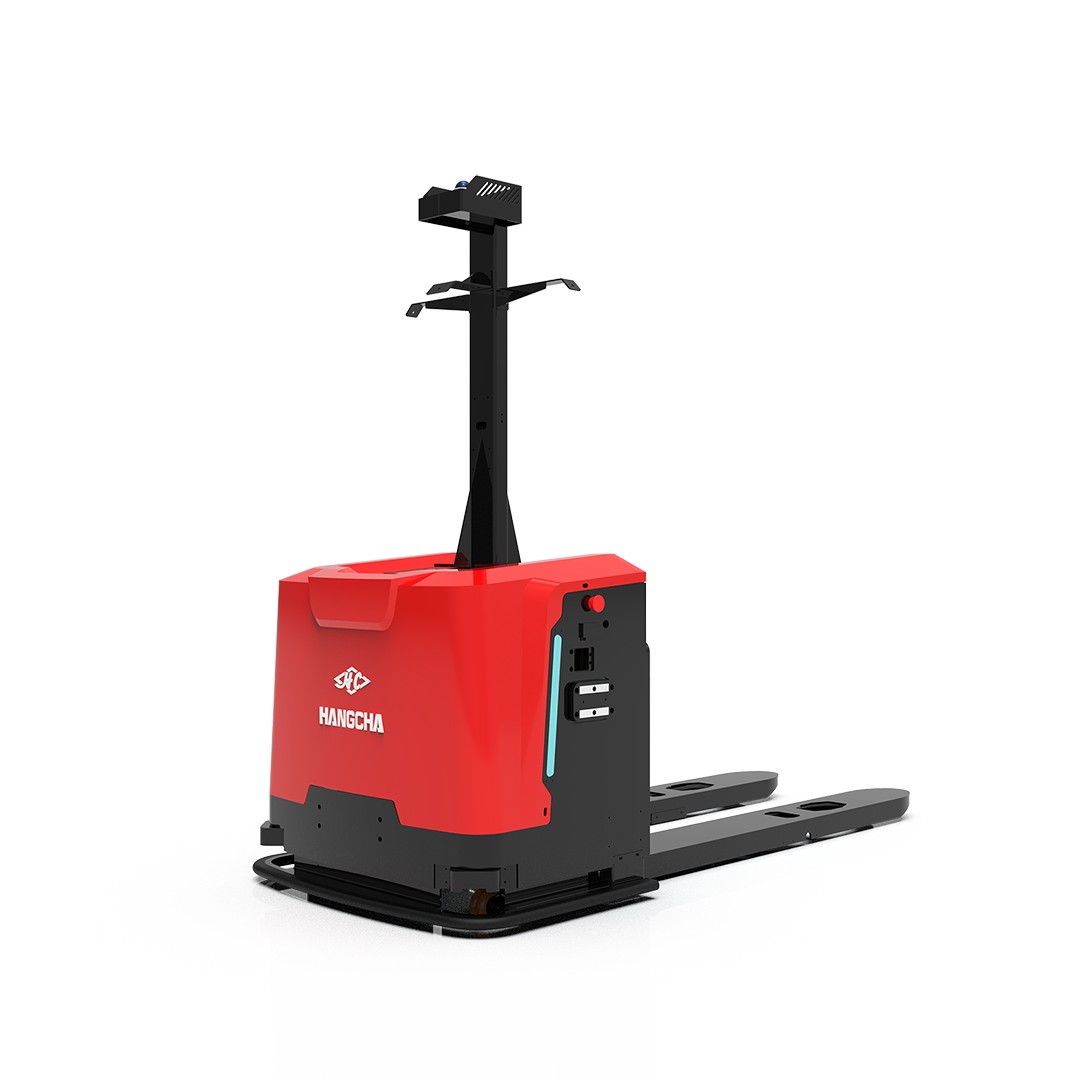

Hangcha's Transport Series forklift robots (FMR) automate horizontal pallet transport in factories and warehouses. Hangcha describes the series as covering 1-10 t, with long-lasting batteries and 360-degree planar plus 3D safety protection, for electronics, photovoltaics, food and beverage, home appliances and other industries, with custom versions available. The listed models are the 1.6 t, 3.0 t and 6.0 t Tianchuan material-handling FMRs, low-lift pallet trucks that raise pallets 110-180 mm and travel at up to 1.25-1.5 m/s. All navigate by 2D/3D SLAM and run 6-8 hours on a charge. The detailed specification lists +/-10 mm navigation accuracy, a steering-wheel drive, 5% gradeability, fork-root pallet detection, audible and visual alarms, an on-board touchscreen, a manual charging port and optional front and rear dash cameras.
FEATURES
- 1.6t Tianchuan Material Handling FMR: Rated load 1600 (Kg)
- Lifting height 180 (mm)
- Minimum tunnel requirement 2499 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1250 (mm/s)
- Rated operating time 6-8 (h)
- 3.0t Tianchuan Material Handling FMR: Rated load 3000 (Kg)
- Lifting height 125 (mm)
- Minimum tunnel requirement Actual customization
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1250 (mm/s)
- Rated operating time 6-8 (h)
- 6.0t Tianchuan Material Handling FMR: Rated load 6000 (Kg)
- Lifting height 110 (mm)
- Minimum tunnel requirement Actual customization
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 6000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| Power | |
| Battery Life | 360 min |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 6000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| Power | |
| Battery Life | 360 min |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Transport Series Forklift Robot (FMR)?
Hangcha's Transport Series forklift robots (FMR) automate horizontal pallet transport in factories and warehouses. Hangcha describes the series as covering 1-10 t, with long-lasting batteries and 360-degree planar plus 3D safety protection, for electronics, photovoltaics, food and beverage, home appliances and other in…
Who makes the Transport Series Forklift Robot (FMR)?
The Transport Series Forklift Robot (FMR) is made by Hangcha, a robotics company based in China.
How much does the Transport Series Forklift Robot (FMR) cost?
Hangcha has not publicly announced pricing for the Transport Series Forklift Robot (FMR). You can enquire through RobotAIGeek for current pricing.
What is the Transport Series Forklift Robot (FMR) used for?
The Transport Series Forklift Robot (FMR) is designed for intralogistics, material-handling, transport, and autonomous pallet-transport forklift robots for 1.6-6 t loads on the shop and warehouse floor. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Transport Series Forklift Robot (FMR)?
The Transport Series Forklift Robot (FMR) has a payload capacity of 6,000 kg.
How fast is the Transport Series Forklift Robot (FMR)?
The Transport Series Forklift Robot (FMR) can move at speeds of up to 5.4 km/h.
What is the battery life of the Transport Series Forklift Robot (FMR)?
The Transport Series Forklift Robot (FMR) runs for about 360 minutes on a charge.
