DESCRIPTION

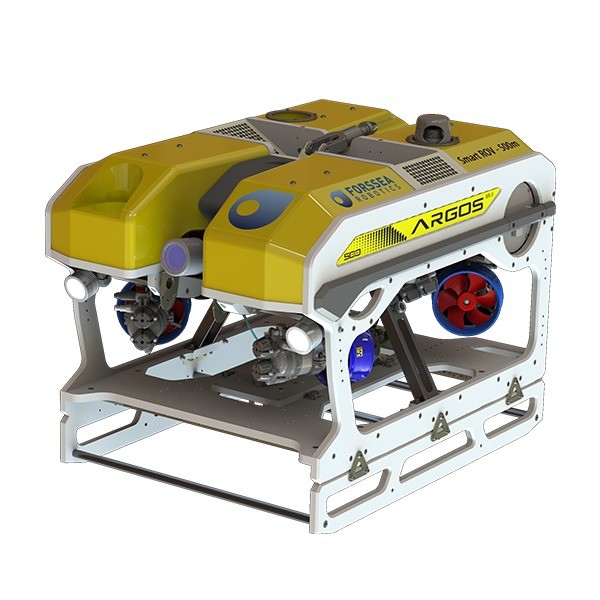

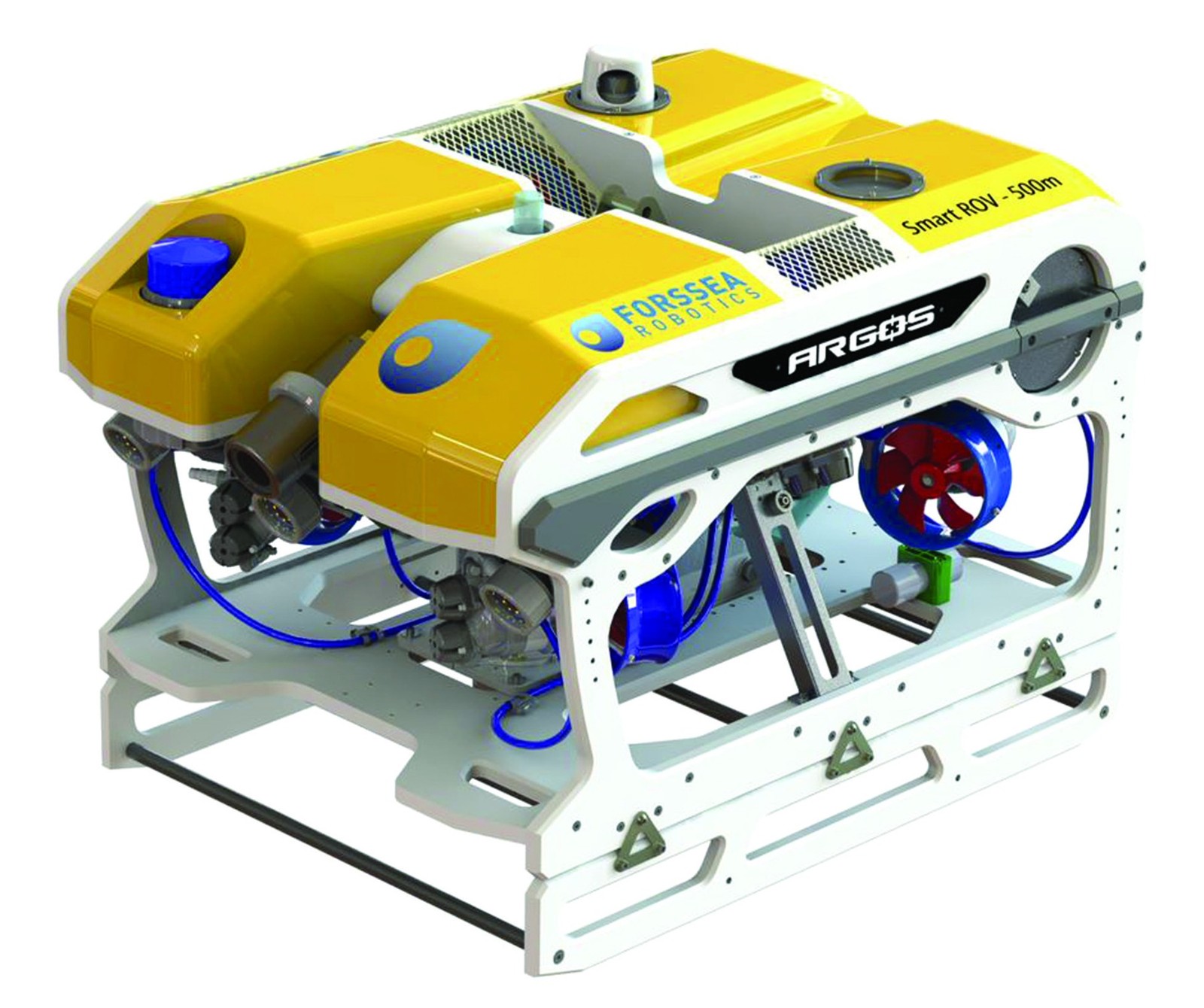

ARGOS is an Industrial-Robot from Forssea Robotics. It is built for Surveying, Inspection. Key figures: 170 kg, 20 kg payload.

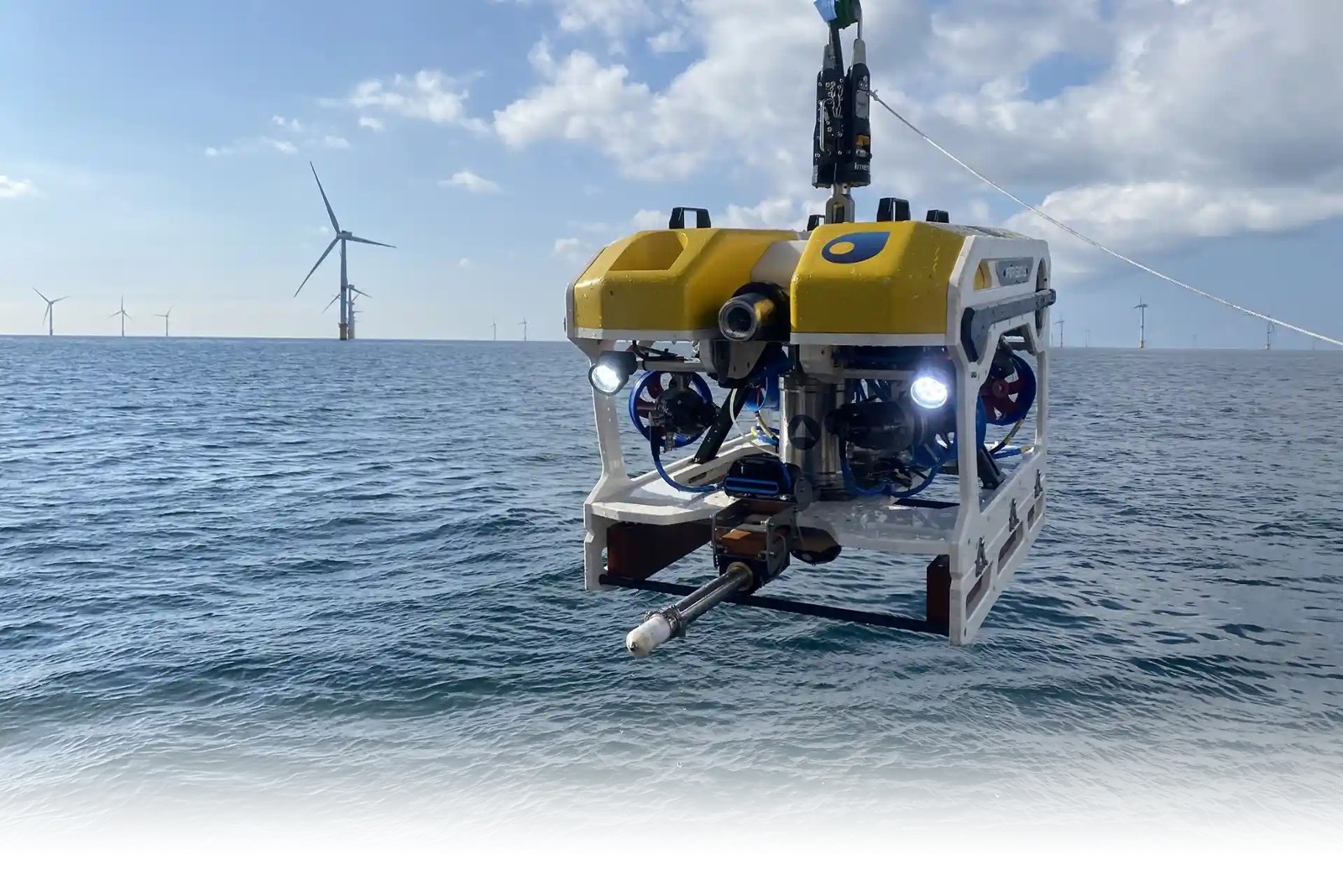

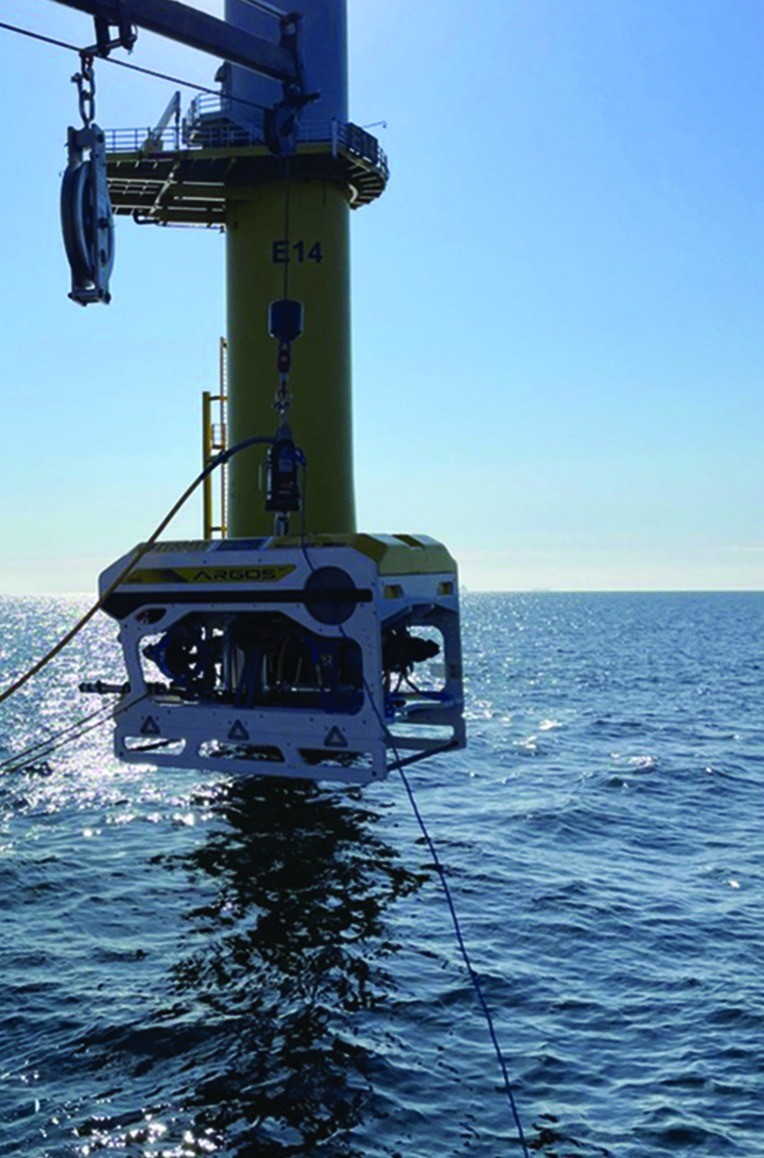

ARGOS is Forssea Robotics' compact, all-electric observation-class (Obs-Class II) ROV for subsea survey and light intervention, designed to fly free from light opportunity vessels, unmanned surface vessels or fixed platforms. It has worked in oil and gas fields in Brazil, Malaysia and Angola and in European offshore wind farms in up to 120 m of water, and is offered worldwide under service or leasing agreements as a ready-to-dive spread: ROV, winch with 250 m tether, 15 kW power surface unit, pilot station and free-flying kit, packed on three 200 kg pallets. ARGOS is rated to 500 m (1,000 m optional), weighs 170 kg in air with payload, measures 1,100 x 790 x 684 mm and carries 20 kg of payload with a 60 kg through-frame lift. Six SPE-75 thrusters give 90 kgf forward thrust and speeds of 2.6 knots forward and 1.5 knots vertically. The survey configuration adds a pre-calibrated INS and DVL for advanced dynamic positioning, go-to mode with waypoints and visual docking, and it carries a Full HD camera on a tilt unit, four 4,800-lumen lights and frame- or skid-mounted tools such as sonar, CP, UT and FMD probes, manipulators, a cleaning brush, multibeam echosounder and pipe tracker. A secured web-based control system lets remote operation centres pilot it over satellite or 4G.
FEATURES
- Obs-Class II, all-electric, free-flying from light vessels or USVs
- Depth rating 500 m (1,000 m option)
- 170 kg in air, 1,100 x 790 x 684 mm
- 20 kg payload, 60 kg through-frame lift
- 6 x SPE-75 thrusters, 90 kgf forward thrust
- Speed 2.6 kn forward, 2.2 kn aft, 1.8 kn lateral, 1.5 kn vertical
- INS-DVL dynamic positioning, go-to waypoints, visual docking
- Full HD tilt camera, 4 x 4,800 lm lights
- Tooling: sonar, CP/UT/FMD probes, manipulators, cleaning brush, MBES, pipe tracker
- Remote operation over satellite or 4G with VPN security
- Ready-to-dive spread on 3 pallets
- service or leasing
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 170 kg |
|---|---|
| Dimensions | L 1.1 m × W 790 mm × H 684 mm |
| Payload | 20 kg |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 4.82 km/h |
| Environment | Subsea, coastal and offshore waters, deployed from light vessels or fixed platforms |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 170 kg |
|---|---|
| Dimensions | L 1.1 m × W 790 mm × H 684 mm |
| Payload | 20 kg |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 4.82 km/h |
| Environment | Subsea, coastal and offshore waters, deployed from light vessels or fixed platforms |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the ARGOS?
ARGOS is Forssea Robotics' compact, all-electric observation-class (Obs-Class II) ROV for subsea survey and light intervention, designed to fly free from light opportunity vessels, unmanned surface vessels or fixed platforms.
Who makes the ARGOS?
The ARGOS is made by Forssea Robotics, a robotics company based in France.
How much does the ARGOS cost?
Forssea Robotics has not publicly announced pricing for the ARGOS. You can enquire through RobotAIGeek for current pricing.
What is the ARGOS used for?
The ARGOS is designed for surveying and inspection. It is used in energy and research settings.
What is the payload capacity of the ARGOS?
The ARGOS has a payload capacity of 20 kg.
How much does the ARGOS weigh?
The ARGOS weighs 170 kg.
How fast is the ARGOS?
The ARGOS can move at speeds of up to 4.82 km/h.
