DESCRIPTION
Zyra-S-TS-05 is an Industrial-Robot from DF Automation. It is built for Lifting, Material-Handling, Transport. Key figures: 480 min runtime, 500 kg payload.

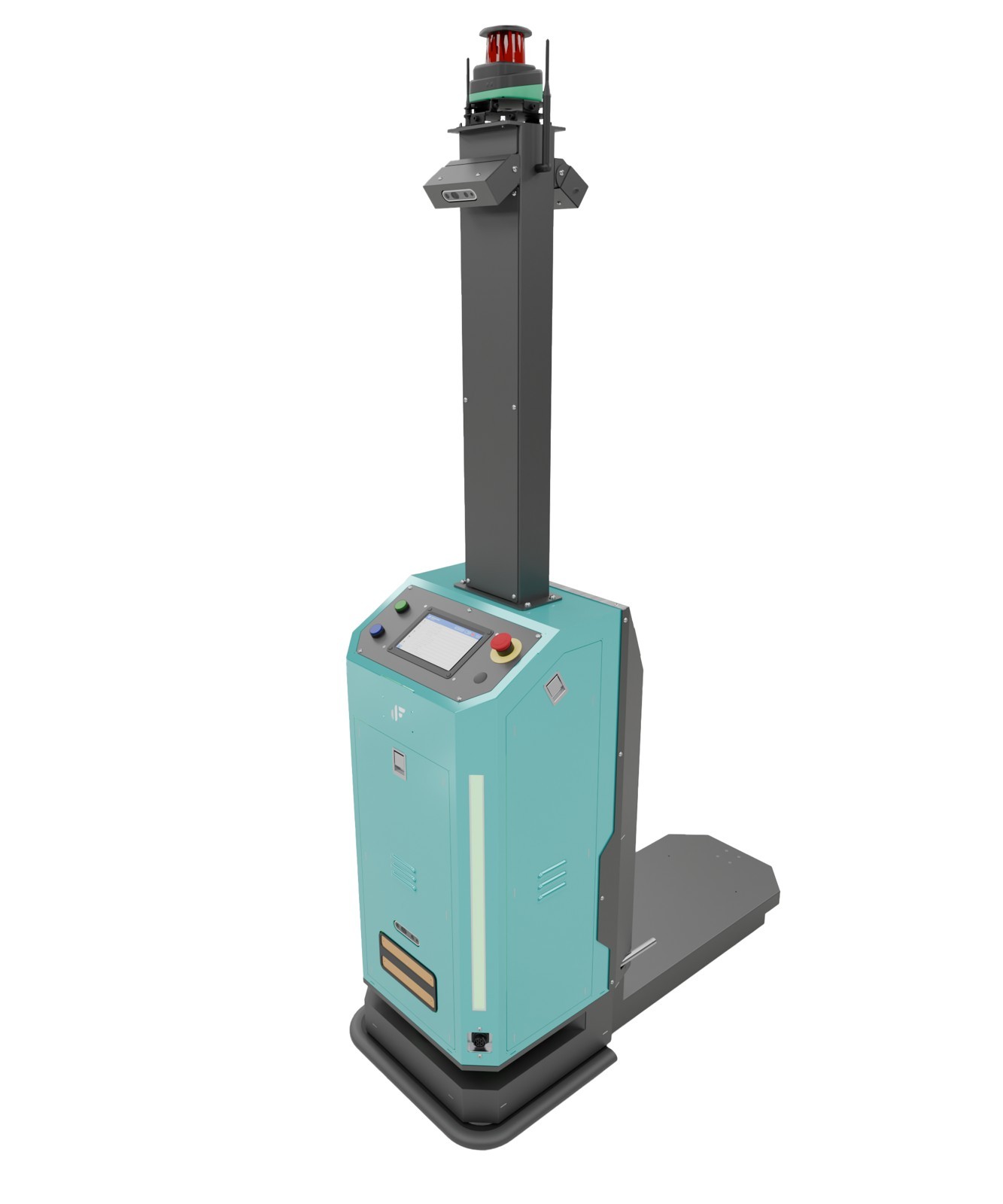

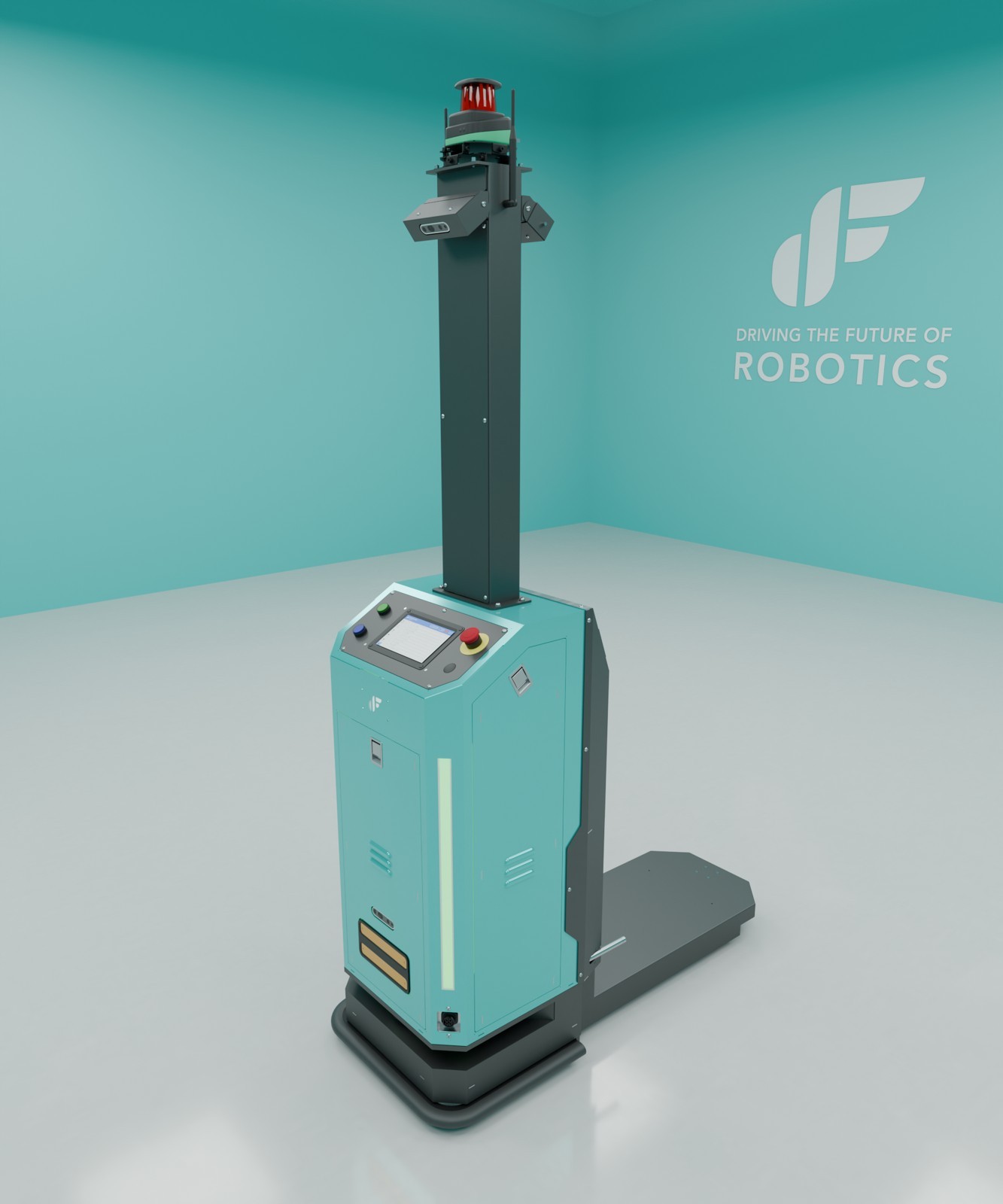

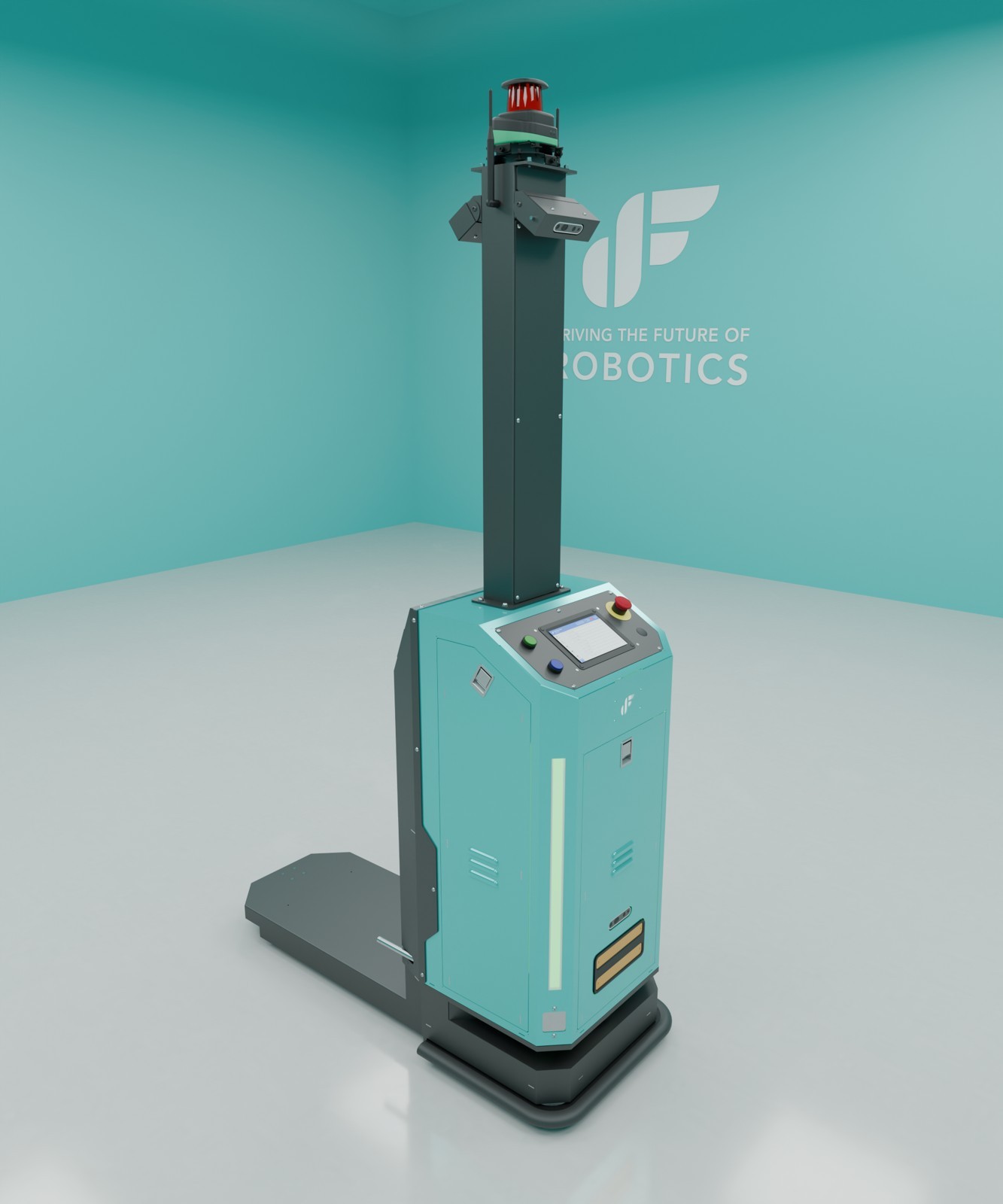

Zyra-S-TS-05 is DF Automation & Robotics' trackless AMR for moving trolleys: it drives under a standard trolley, lifts it and carries loads of up to 500 kg without modifying the trolley, and its slim body works in aisles as narrow as 0.65 m. The robot measures 1,194 x 504 x 1,944 mm, lifts at 18.5 mm/s on a 680 x 380 mm load surface, and drives at up to 0.9 m/s on a steering drive with brushless motors, navigating by LiDAR natural features with markers for precision and a 3D camera for obstacle detection. A 51.2 V, 40 Ah LiFePO4 battery gives about 8 hours of work with 2-hour charging, and it suits manufacturing, warehousing, logistics, textile, automotive and food and beverage sites.
FEATURES
- Lifting payload 500 kg
- lifts standard trolleys without modification
- 1,194 x 504 x 1,944 mm
- load surface 680 x 380 mm
- lifting speed 18.5 mm/s
- Operates in aisles from 0.65 m
- Speed up to 0.9 m/s
- steering drive
- brushless DC motors
- LiDAR natural-feature navigation with markers
- 3D camera obstacle detection
- LiFePO4 51.2 V 40 Ah
- ~8 h running time
- ~2 h charge
- NavWiz mapping and flowchart task programming
- DFleet fleet management
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.19 m × W 504 mm × H 1.94 m |
|---|---|
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.24 km/h |
| Environment | Manufacturing and warehouse aisles from 0.65 m (indoor) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | LiDAR, 3D camera |
| Connectivity | Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.19 m × W 504 mm × H 1.94 m |
|---|---|
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.24 km/h |
| Environment | Manufacturing and warehouse aisles from 0.65 m (indoor) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | LiDAR, 3D camera |
| Connectivity | Wi-Fi |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Zyra-S-TS-05?
Zyra-S-TS-05 is DF Automation & Robotics' trackless AMR for moving trolleys: it drives under a standard trolley, lifts it and carries loads of up to 500 kg without modifying the trolley, and its slim body works in aisles as narrow as 0.65 m.
Who makes the Zyra-S-TS-05?
The Zyra-S-TS-05 is made by DF Automation, a robotics company based in Malaysia.
How much does the Zyra-S-TS-05 cost?
DF Automation has not publicly announced pricing for the Zyra-S-TS-05. You can enquire through RobotAIGeek for current pricing.
What is the Zyra-S-TS-05 used for?
The Zyra-S-TS-05 is designed for lifting, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Zyra-S-TS-05?
The Zyra-S-TS-05 has a payload capacity of 500 kg.
How fast is the Zyra-S-TS-05?
The Zyra-S-TS-05 can move at speeds of up to 3.24 km/h.
What is the battery life of the Zyra-S-TS-05?
The Zyra-S-TS-05 runs for about 480 minutes on a charge.
