DESCRIPTION
Sekisyu CRAWLER is an Industrial-Robot from Topy Industries. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 500 kg payload.

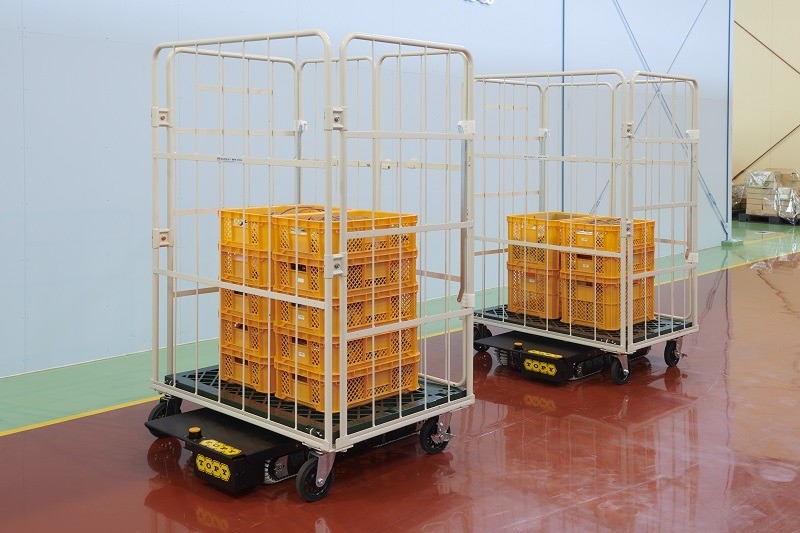

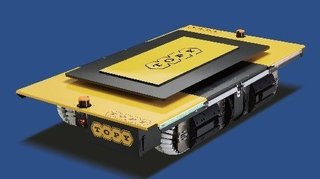

Sekisyu CRAWLER is Topy Industries' crawler-type AGV for carrying heavy loads in factories and warehouses, built to improve worker safety and ease labour shortages. Its crawler tracks give a large contact area and strong propulsion, so it handles rough ground, asphalt and slopes, and it can move straight forward, backward, left and right without turning, which suits narrow and complicated routes. It comes in two heights. Both are 1,184 mm long, carry up to 500 kg, climb an 8% (5 degree) slope and travel at up to 2 km/h lengthways and 0.5 km/h sideways, running 2-4 hours per charge. The 190 model is 570 mm wide and 190 mm high, weighs 130 kg and crosses 15 mm steps; the 245 is 665 mm wide and 245 mm high, weighs 150 kg and crosses 25 mm steps. Each slips under carts with 195 mm or 250 mm of clearance respectively. It is driven manually with a dedicated joystick or automatically by landmark navigation, and with NEC's Multi-Robot Controller several robots can be run together automatically.
FEATURES
- Crawler AGV
- moves forward, back, left and right without turning
- Payload up to 500 kg
- 8% (5 degree) slope
- asphalt, slopes and rough ground
- Up to 2 km/h longitudinal, 0.5 km/h lateral
- 2-4 h operation
- Model 190: 1,184 x 570 x 190 mm, 130 kg, 15 mm steps, fits under 195 mm+ cart clearance
- Model 245: 1,184 x 665 x 245 mm, 150 kg, 25 mm steps, fits under 250 mm+ cart clearance
- Manual joystick control or landmark-based automatic driving
- Multi-robot automatic control via NEC Multi-Robot Controller
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.18 m |
|---|---|
| Payload | 500 kg |
| Mobility | |
| Movement Type | Other |
| Speed | 2 km/h |
| Environment | Factories and warehouses, including asphalt, slopes and rough ground |
| Actuators | Crawler tracks with lateral travel |
| Sensing & Compute | |
| Sensors | Landmark navigation sensors |
| Software / AI | Landmark automatic driving; NEC Multi-Robot Controller compatible |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.18 m |
|---|---|
| Payload | 500 kg |
| Mobility | |
| Movement Type | Other |
| Speed | 2 km/h |
| Environment | Factories and warehouses, including asphalt, slopes and rough ground |
| Actuators | Crawler tracks with lateral travel |
| Sensing & Compute | |
| Sensors | Landmark navigation sensors |
| Software / AI | Landmark automatic driving; NEC Multi-Robot Controller compatible |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Sekisyu CRAWLER?
Sekisyu CRAWLER is Topy Industries' crawler-type AGV for carrying heavy loads in factories and warehouses, built to improve worker safety and ease labour shortages.
Who makes the Sekisyu CRAWLER?
The Sekisyu CRAWLER is made by Topy Industries, a robotics company based in Japan.
How much does the Sekisyu CRAWLER cost?
Topy Industries has not publicly announced pricing for the Sekisyu CRAWLER. You can enquire through RobotAIGeek for current pricing.
What is the Sekisyu CRAWLER used for?
The Sekisyu CRAWLER is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Sekisyu CRAWLER?
The Sekisyu CRAWLER has a payload capacity of 500 kg.
How fast is the Sekisyu CRAWLER?
The Sekisyu CRAWLER can move at speeds of up to 2 km/h.
