DESCRIPTION
VLB30 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 2500 kg, 3000 kg payload.

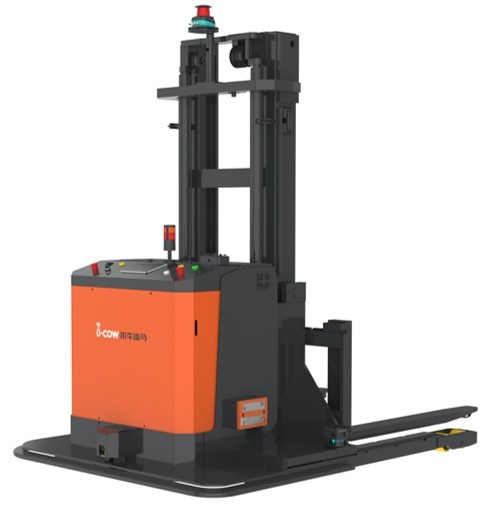

The VLB30 is a heavy-duty wide-leg stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 3,000 kg at a 600 mm load centre, lifts to 2000 mm, weighs 2,500 kg and measures 2,417 x 1,660 x 2,399 mm. Its forks measure 50 x 130 x 1200 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 2075 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 3,000 kg at 600 mm load centre
- Lift height 2000 mm

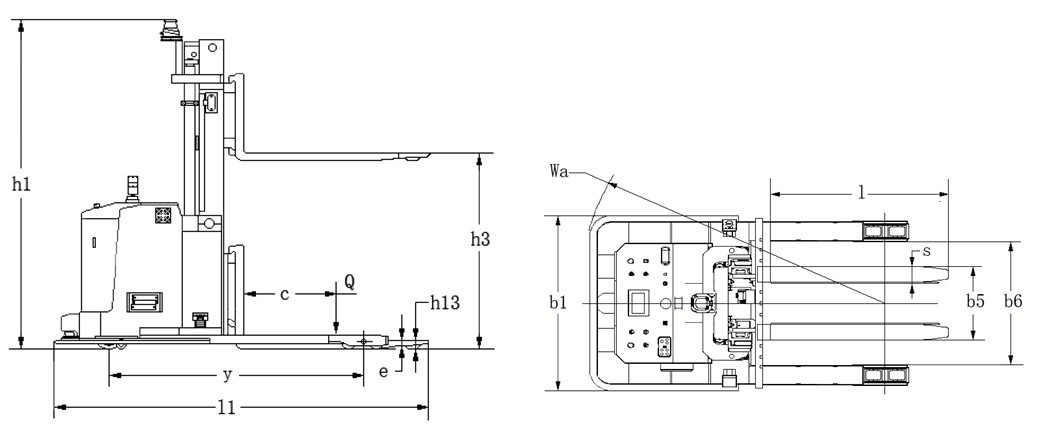

- Overall dimensions 2417 x 1660 x 2399 mm (L x W x H)
- Service weight 2,500 kg
- Forks 50/130/1200 mm (e/s/l)
- Turning radius 2075 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2500 kg |
|---|---|
| Dimensions | L 2.42 m × W 1.66 m × H 2.4 m |
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2500 kg |
|---|---|
| Dimensions | L 2.42 m × W 1.66 m × H 2.4 m |
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLB30?
The VLB30 is a heavy-duty wide-leg stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 3,000 kg at a 600 mm load centre, lifts to 2000 mm, weighs 2,500 kg and measures 2,417 x 1,660 x 2,399 mm.
Who makes the VLB30?
The VLB30 is made by i-Cow, a robotics company based in China.
How much does the VLB30 cost?
i-Cow has not publicly announced pricing for the VLB30. You can enquire through RobotAIGeek for current pricing.
What is the VLB30 used for?
The VLB30 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLB30?
The VLB30 has a payload capacity of 3,000 kg.
How much does the VLB30 weigh?
The VLB30 weighs 2,500 kg.
How fast is the VLB30?
The VLB30 can move at speeds of up to 5.4 km/h.
