DESCRIPTION
tSortPost Scissor Lift is an Industrial-Robot from Tompkins Robotics. It is built for Intralogistics, Sorting, Transport. Key figures: 300 min runtime, 13.5 kg payload.

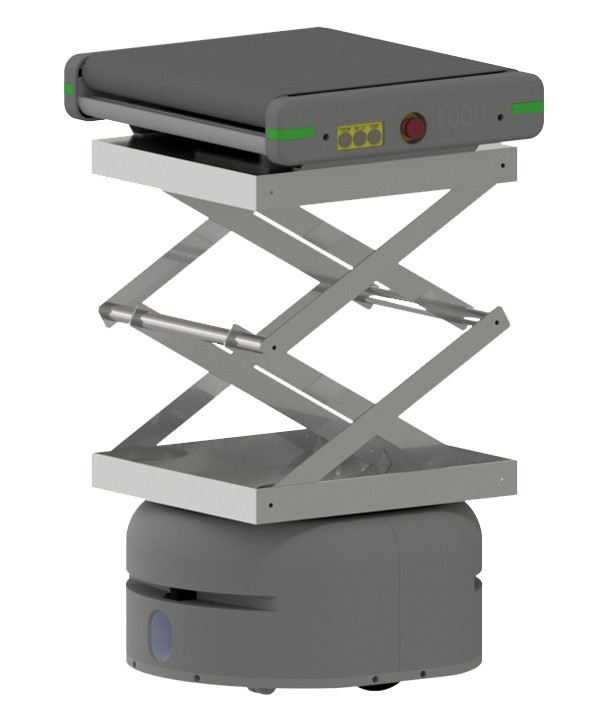

The tSortPost Scissor Lift is the lifting version of Tompkins Robotics' tSortPost sortation robot: a scissor mechanism raises its belt top between 51 and 182 cm (20-72 in), so a single robot can reach several induction and destination levels. It carries up to 13.5 kg (30 lb) and items up to 61 x 40 cm (24 x 16 in) at up to 2 m/s, runs up to 5 hours per charge and fully recharges in 30 minutes. tSortPost robots navigate by scanning QR codes on the floor, so they need no platform, conveyors, fixed tracks or heavy wiring and can work within a facility's existing layout, either as a standalone system or integrated with other automation. Items are placed on the robot's belt by operators or fed by pick-and-place robots or conveyors; barcode scanners identify each item and the robot carries it point-to-point to its destination - bins, gaylords or bags - accelerating at up to 1.5 m/s2. The robots charge themselves, and capacity grows by adding robots.
FEATURES
- Load capacity 13.5 kg (30 lb)
- Max product size 61 x 40 cm (24 x 16 in)
- Scissor lift: robot height 51-182 cm (20-72 in)
- Max speed 2 m/s
- acceleration up to 1.5 m/s2
- Full charge 30 min
- run time up to 5 h per charge
- Navigation: floor QR codes
- Belt top
- reaches multiple induction and destination levels
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | H 1.82 m |
|---|---|
| Payload | 13.5 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Indoor warehouses, parcel and mail facilities |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | floor QR-code reader, barcode scanner (induction) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | H 1.82 m |
|---|---|
| Payload | 13.5 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Indoor warehouses, parcel and mail facilities |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | floor QR-code reader, barcode scanner (induction) |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the tSortPost Scissor Lift?
The tSortPost Scissor Lift is the lifting version of Tompkins Robotics' tSortPost sortation robot: a scissor mechanism raises its belt top between 51 and 182 cm (20-72 in), so a single robot can reach several induction and destination levels.
Who makes the tSortPost Scissor Lift?
The tSortPost Scissor Lift is made by Tompkins Robotics, a robotics company based in United States.
How much does the tSortPost Scissor Lift cost?
Tompkins Robotics has not publicly announced pricing for the tSortPost Scissor Lift. You can enquire through RobotAIGeek for current pricing.
What is the tSortPost Scissor Lift used for?
The tSortPost Scissor Lift is designed for intralogistics, sorting, and transport. It is used in healthcare, warehouse & logistics, and retail settings.
What is the payload capacity of the tSortPost Scissor Lift?
The tSortPost Scissor Lift has a payload capacity of 13.5 kg.
How fast is the tSortPost Scissor Lift?
The tSortPost Scissor Lift can move at speeds of up to 7.2 km/h.
What is the battery life of the tSortPost Scissor Lift?
The tSortPost Scissor Lift runs for about 300 minutes on a charge.
