DESCRIPTION
tSort Tray is an Industrial-Robot from Tompkins Robotics. It is built for Intralogistics, Sorting, Transport. Key figures: 240 min runtime, 5 kg payload.

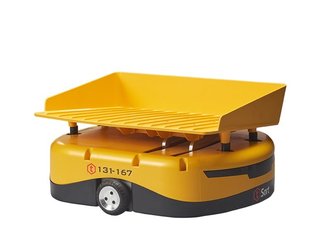

The tSort Tray is Tompkins Robotics' high-speed tilt-tray sortation robot for a wide range of items. It carries items of up to 5 kg (11 lb) and up to 558 x 381 mm (22 x 15 in) at speeds of up to 2.5 m/s, tipping its tray to drop each item into its destination. tSort is Tompkins Robotics' modular robotic sortation system: a fleet of independent robots runs across a modular sortation table on caster wheels, receives items at induction stations, where barcode scanners identify each item, and drops them into totes, cartons, mailbags or gaylords at up to 6,000+ destinations, with a system throughput of 50,000+ items per hour in up to 75% less space than traditional sorters. tSort robots accelerate at up to 2.0 m/s2, charge automatically on grid-mounted chargers (one per 15 robots) for 5-8 minutes to get up to 4 hours of operation while the system keeps full throughput, and operate from -20 to 55 C, so the system can run in chilled areas as well as ambient warehouses. Robots, induction points and table sections can be added or reconfigured as volumes change.
FEATURES
- Max item weight 5 kg
- Max product size 558 x 381 mm (22 x 15 in)
- Max speed 2.5 m/s
- acceleration up to 2.0 m/s2
- Discharge: tilt tray
- Automatic charging: 5-8 min charge for up to 4 h operation (1 charger per 15 robots)
- Operating temperature -20 to 55 C
- Barcode scanning at induction
- routes any item from any induction point to any destination
- System: 50,000+ items/h to 6,000+ destinations
- modular table on caster wheels, no conveyors or fixed tracks
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 5 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 9 km/h |
| Environment | Indoor warehouses and distribution centers on the tSort sortation table; -20 to 55 C, -20°C to 55°C |
| Power | |
| Battery Life | 240 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 5 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 9 km/h |
| Environment | Indoor warehouses and distribution centers on the tSort sortation table; -20 to 55 C, -20°C to 55°C |
| Power | |
| Battery Life | 240 min |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the tSort Tray?
The tSort Tray is Tompkins Robotics' high-speed tilt-tray sortation robot for a wide range of items. It carries items of up to 5 kg (11 lb) and up to 558 x 381 mm (22 x 15 in) at speeds of up to 2.5 m/s, tipping its tray to drop each item into its destination.
Who makes the tSort Tray?
The tSort Tray is made by Tompkins Robotics, a robotics company based in United States.
How much does the tSort Tray cost?
Tompkins Robotics has not publicly announced pricing for the tSort Tray. You can enquire through RobotAIGeek for current pricing.
What is the tSort Tray used for?
The tSort Tray is designed for intralogistics, sorting, and transport. It is used in healthcare, warehouse & logistics, and retail settings.
What is the payload capacity of the tSort Tray?
The tSort Tray has a payload capacity of 5 kg.
How fast is the tSort Tray?
The tSort Tray can move at speeds of up to 9 km/h.
What is the battery life of the tSort Tray?
The tSort Tray runs for about 240 minutes on a charge.
