DESCRIPTION
Titan-S-TS-15 is an Industrial-Robot from DF Automation. It is built for Lifting, Material-Handling, Pallet-Transportation. Key figures: 720 min runtime, 1500 kg payload.

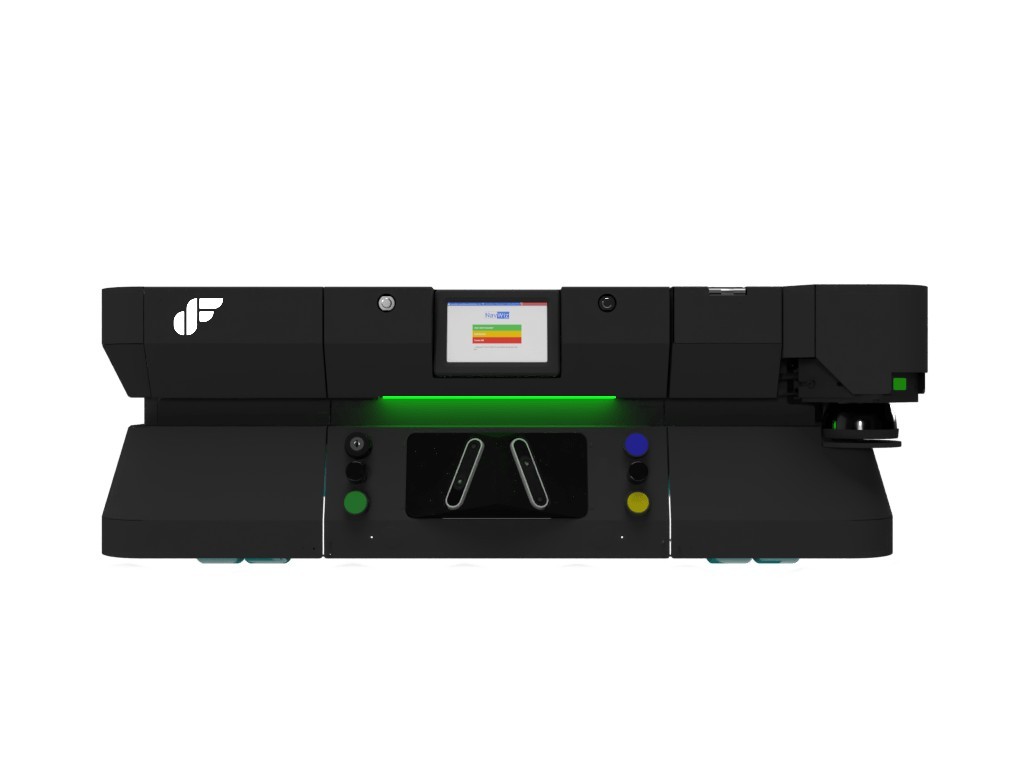

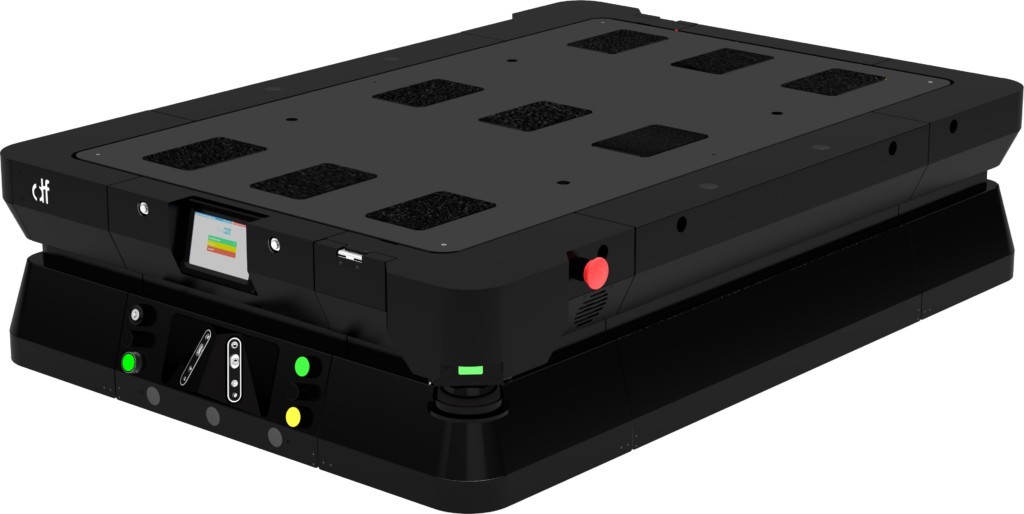

Titan-S-TS-15 is DF Automation & Robotics' flagship heavy-duty AMR and the highest-payload platform in its range, carrying and lifting up to 1.5 tonnes for manufacturing and distribution, including standard pallets placed directly on its deck. The low 1,360 x 960 x 330 mm platform lifts 80 mm, drives at 1 m/s laden or 2 m/s unladen on a differential drive with brushless motors, climbs up to 4.3 degrees and navigates by laser natural features. A 48 V, 64 Ah LiFePO4 battery runs it for about 12 hours and recharges in about 3 hours with automatic docking, safety-grade laser scanners and front and rear 3D cameras protect people, and an RS-485 interface eases integration.
FEATURES
- Carry and lifting payload 1,500 kg
- lift height 80 mm
- 1,360 x 960 x 330 mm
- load surface 1,360 x 960 mm
- Speed 1 m/s laden, 2 m/s unladen
- differential drive
- brushless motors
- Laser natural-feature navigation
- gradeability up to 4.3 deg
- LiFePO4 48 V 64 Ah
- ~12 h running time
- ~3 h charge
- auto charging
- Safety-grade laser scanners
- front and rear 3D cameras
- bumpers
- emergency stops
- RS-485 interface
- IoT-enabled
- NavWiz mapping and flowchart task programming
- DFleet fleet management
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.36 m × W 960 mm × H 330 mm |
|---|---|
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Manufacturing and distribution (indoor) |
| Power | |
| Battery Life | 720 min |
| Sensing & Compute | |
| Sensors | safety laser scanners, 3D cameras |
| Connectivity | Wi-Fi; RS-485 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.36 m × W 960 mm × H 330 mm |
|---|---|
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Manufacturing and distribution (indoor) |
| Power | |
| Battery Life | 720 min |
| Sensing & Compute | |
| Sensors | safety laser scanners, 3D cameras |
| Connectivity | Wi-Fi; RS-485 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Titan-S-TS-15?
Titan-S-TS-15 is DF Automation & Robotics' flagship heavy-duty AMR and the highest-payload platform in its range, carrying and lifting up to 1.5 tonnes for manufacturing and distribution, including standard pallets placed directly on its deck.
Who makes the Titan-S-TS-15?
The Titan-S-TS-15 is made by DF Automation, a robotics company based in Malaysia.
How much does the Titan-S-TS-15 cost?
DF Automation has not publicly announced pricing for the Titan-S-TS-15. You can enquire through RobotAIGeek for current pricing.
What is the Titan-S-TS-15 used for?
The Titan-S-TS-15 is designed for lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Titan-S-TS-15?
The Titan-S-TS-15 has a payload capacity of 1,500 kg.
How fast is the Titan-S-TS-15?
The Titan-S-TS-15 can move at speeds of up to 3.6 km/h.
What is the battery life of the Titan-S-TS-15?
The Titan-S-TS-15 runs for about 720 minutes on a charge.
