DESCRIPTION
SPECTRA is an Industrial-Robot from Deep Trekker. It is built for Surveying, Inspection. Key figures: 38 kg.

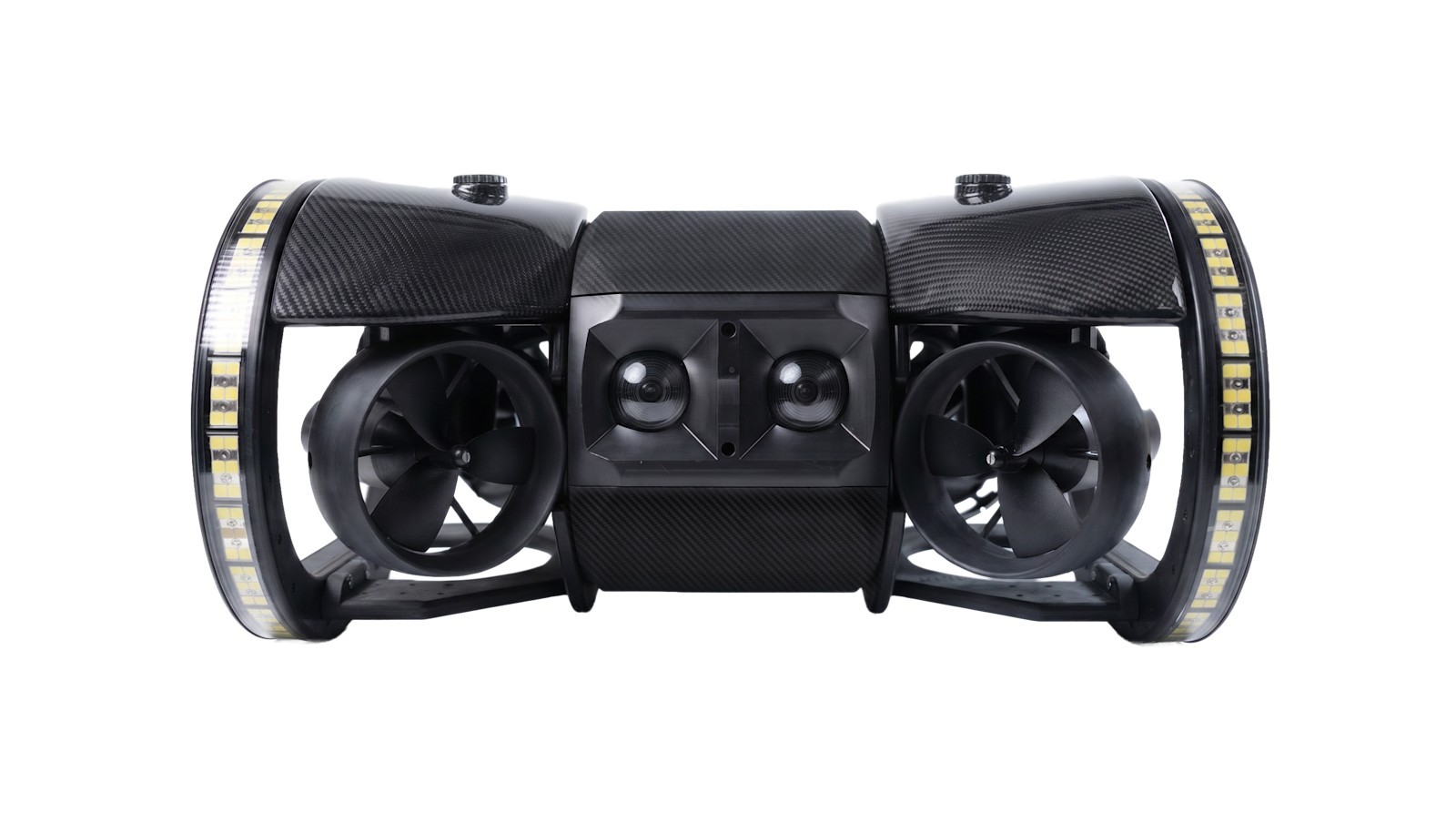

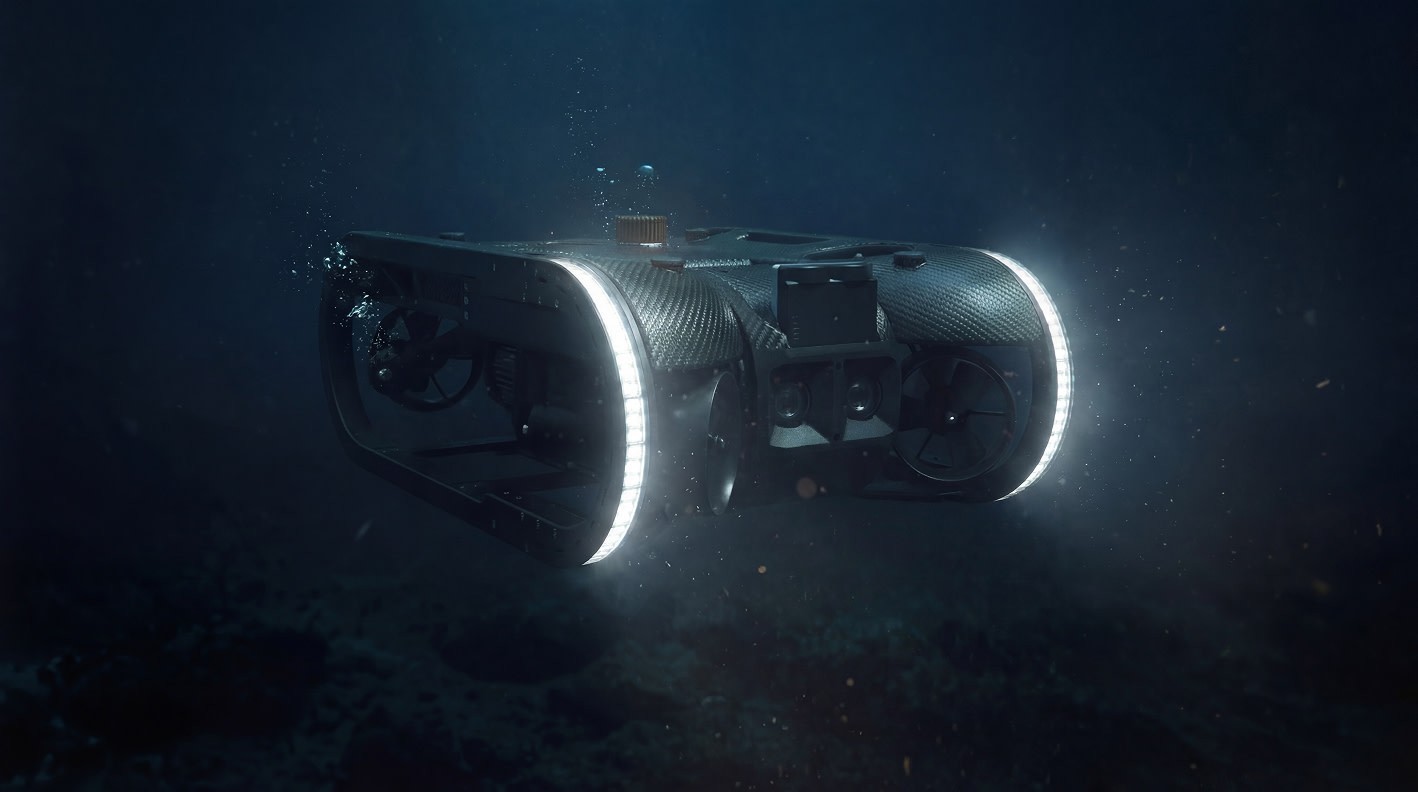

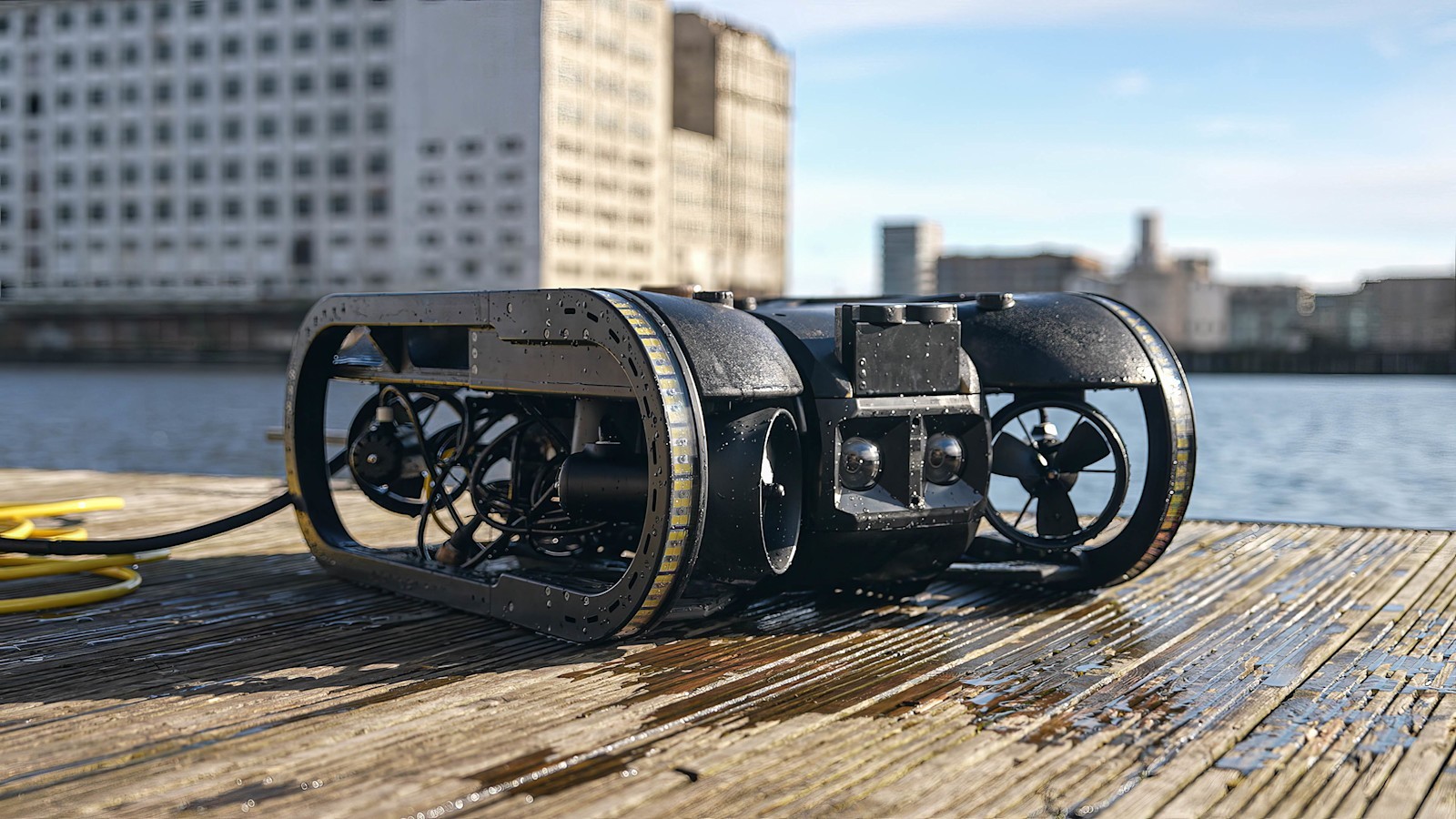

SPECTRA is Deep Trekker's offshore inspection, repair and maintenance (IRM) ROV, bringing work-class capabilities to a portable platform. Rated to 1,000 m, it holds position in currents with seven brushless thrusters, four vectored and three vertical, producing 40 kg of thrust for 3.5 knots forward and 2.3 knots lateral, and its HDPE and stainless steel frame measures 586 x 296 x 790 mm and weighs 38 kg in air. A rotating dual 4K stereo camera with 12 MP stills and a 300,000-lumen LED light frame feed photogrammetry, while a 180-degree rotating 2D imaging and 3D sonar enables real-time sonar SLAM for mapping and localisation in GNSS-denied, low-visibility water. It integrates NDT tooling, uses a 300 m fibre tether as standard with km-plus options, runs on 48 V direct power drawing up to 7.2 kW from a 100-260 VAC topside, offers 1 kW accessory power with Gigabit Ethernet, RS485 and RS232, and can be serviced modularly in under 30 minutes.
FEATURES
- Depth rating 1,000 m (3,280 ft)
- 586 x 296 x 790 mm (W x H x L)
- 38 kg in air
- 7 brushless thrusters (4 vectored, 3 vertical)
- 40 kg thrust
- 3.5 kn forward, 2.3 kn lateral
- Rotating dual 4K stereo camera
- 12 MP stills
- dual 150,000-lumen LED light frame (300,000 lm)
- 180 deg rotating 2D imaging and 3D sonar
- real-time 3D sonar SLAM
- Photogrammetry and digital-twin generation
- integrated NDT tooling
- 48 VDC nominal
- direct power from 100-260 VAC topside
- max draw 7,200 W
- 1,000 W accessory port
- Gigabit Ethernet, RS485, RS232 onboard comms
- 300 m fibre tether standard (km+ options)
- Modular servicing in under 30 minutes
- SKB iSeries case
- operating temp -10 to 40 C
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 38 kg |
|---|---|
| Dimensions | L 790 mm × W 586 mm × H 296 mm |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 6.48 km/h |
| Environment | Offshore and subsea infrastructure (to 1,000 m depth) |
| Sensing & Compute | |
| Sensors | 4K stereo camera, 2D imaging sonar, 3D sonar |
| Connectivity | Fibre tether 300 m (km+ options); Gigabit Ethernet, RS485, RS232 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 38 kg |
|---|---|
| Dimensions | L 790 mm × W 586 mm × H 296 mm |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 6.48 km/h |
| Environment | Offshore and subsea infrastructure (to 1,000 m depth) |
| Sensing & Compute | |
| Sensors | 4K stereo camera, 2D imaging sonar, 3D sonar |
| Connectivity | Fibre tether 300 m (km+ options); Gigabit Ethernet, RS485, RS232 |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SPECTRA?
SPECTRA is Deep Trekker's offshore inspection, repair and maintenance (IRM) ROV, bringing work-class capabilities to a portable platform.
Who makes the SPECTRA?
The SPECTRA is made by Deep Trekker, a robotics company based in Canada.
How much does the SPECTRA cost?
Deep Trekker has not publicly announced pricing for the SPECTRA. You can enquire through RobotAIGeek for current pricing.
What is the SPECTRA used for?
The SPECTRA is designed for surveying and inspection. It is used in defence, energy, government, and research settings.
How much does the SPECTRA weigh?
The SPECTRA weighs 38 kg.
How fast is the SPECTRA?
The SPECTRA can move at speeds of up to 6.48 km/h.
