DESCRIPTION
DTG3 is a Service-Robots from Deep Trekker. It is built for Search-And-Rescue, Surveying, Inspection. Key figures: 8.5 kg.

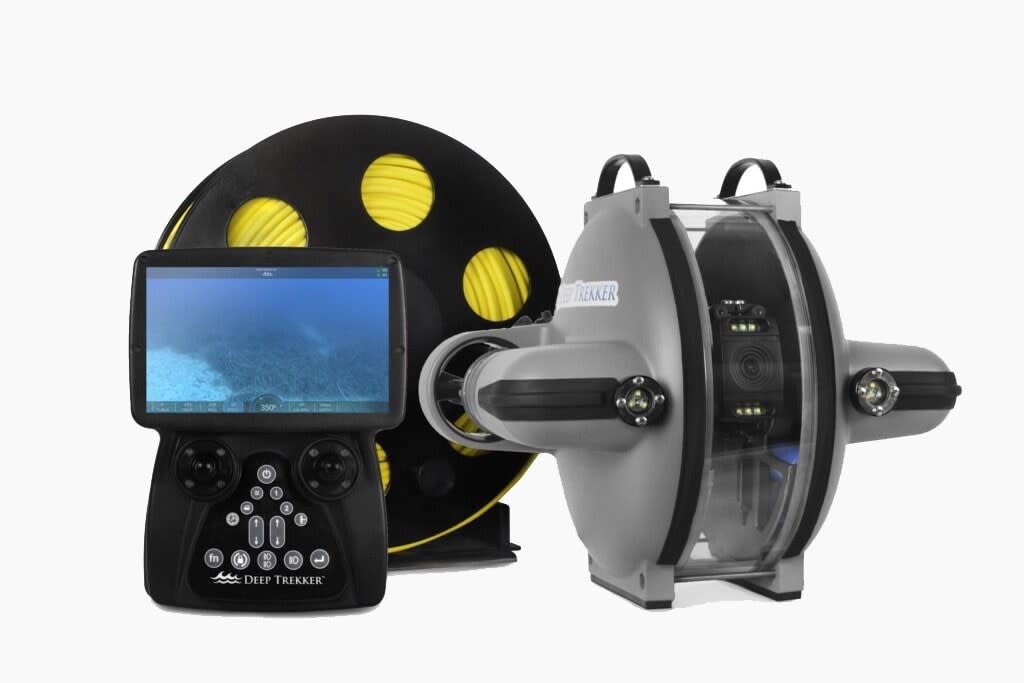

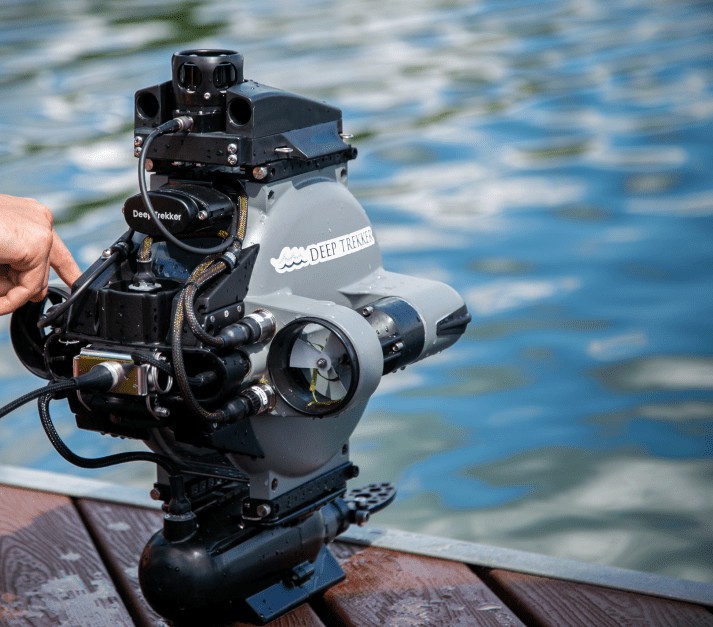

The DTG3 is Deep Trekker's smallest and quickest-to-deploy underwater ROV, built for inspections and surveys by users who need eyes underwater without a large crew. Its die-cast aluminium body measures 325 x 258 x 279 mm, weighs 8.5 kg in air and is rated to 200 m, with magnetically coupled, sealed thrusters and an acrylic window. An enhanced 4K camera inside the hull rotates through 270 degrees, so the pilot can look up, down and behind without turning the vehicle, and 1,000-lumen dimmable LED lights track with the camera, with optional add-ons up to 4,400 lumens. It runs on Deep Trekker's BRIDGE control architecture with a handheld controller, low-latency control, automatic white balancing and integrated data capture and reporting, and it accepts modular add-ons such as grabbers, cutters, sediment and water samplers, water-quality sondes and imaging sonar. It ships in a Pelican Air case with handle and wheels.
FEATURES
- Mini inspection ROV: 325 x 258 x 279 mm (W x H x L)
- 8.5 kg in air
- Depth rating 200 m (656 ft)
- operating temperature -10 to 50 C
- Enhanced 4K camera with 270 deg total range of view
- 8 MP JPG stills
- High-efficiency dimmable LED, 1,000 lumens tracking with camera
- optional 1,000-4,400 lumen add-ons
- Magnetically coupled, sealed thrusters
- die-cast aluminium body, acrylic window
- BRIDGE control architecture: handheld controller, low-latency control, data capture and reporting
- Add-ons: manipulator grabbers, cutter, sediment and water samplers, water-quality sonde, imaging sonar
- Custom Pelican Air 1637 case with handle and wheels
- 1-year warranty (optional 2-3)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 8.5 kg |
|---|---|
| Dimensions | L 279 mm × W 325 mm × H 258 mm |
| Mobility | |
| Movement Type | Aquatic |
| Environment | Lakes, rivers, harbours, tanks and aquaculture pens (to 200 m depth) |
| Sensing & Compute | |
| Sensors | 4K camera, optional imaging sonar |
| Connectivity | Tether; BRIDGE handheld controller |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 8.5 kg |
|---|---|
| Dimensions | L 279 mm × W 325 mm × H 258 mm |
| Mobility | |
| Movement Type | Aquatic |
| Environment | Lakes, rivers, harbours, tanks and aquaculture pens (to 200 m depth) |
| Sensing & Compute | |
| Sensors | 4K camera, optional imaging sonar |
| Connectivity | Tether; BRIDGE handheld controller |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DTG3?
The DTG3 is Deep Trekker's smallest and quickest-to-deploy underwater ROV, built for inspections and surveys by users who need eyes underwater without a large crew.
Who makes the DTG3?
The DTG3 is made by Deep Trekker, a robotics company based in Canada.
How much does the DTG3 cost?
Deep Trekker has not publicly announced pricing for the DTG3. You can enquire through RobotAIGeek for current pricing.
What is the DTG3 used for?
The DTG3 is designed for search-and-rescue, surveying, and inspection. It is used in defence, energy, government, and research settings.
How much does the DTG3 weigh?
The DTG3 weighs 8.5 kg.
