DESCRIPTION
PHOTON is a Service-Robots from Deep Trekker. It is built for Surveying, Inspection. Key figures: 11.8 kg.

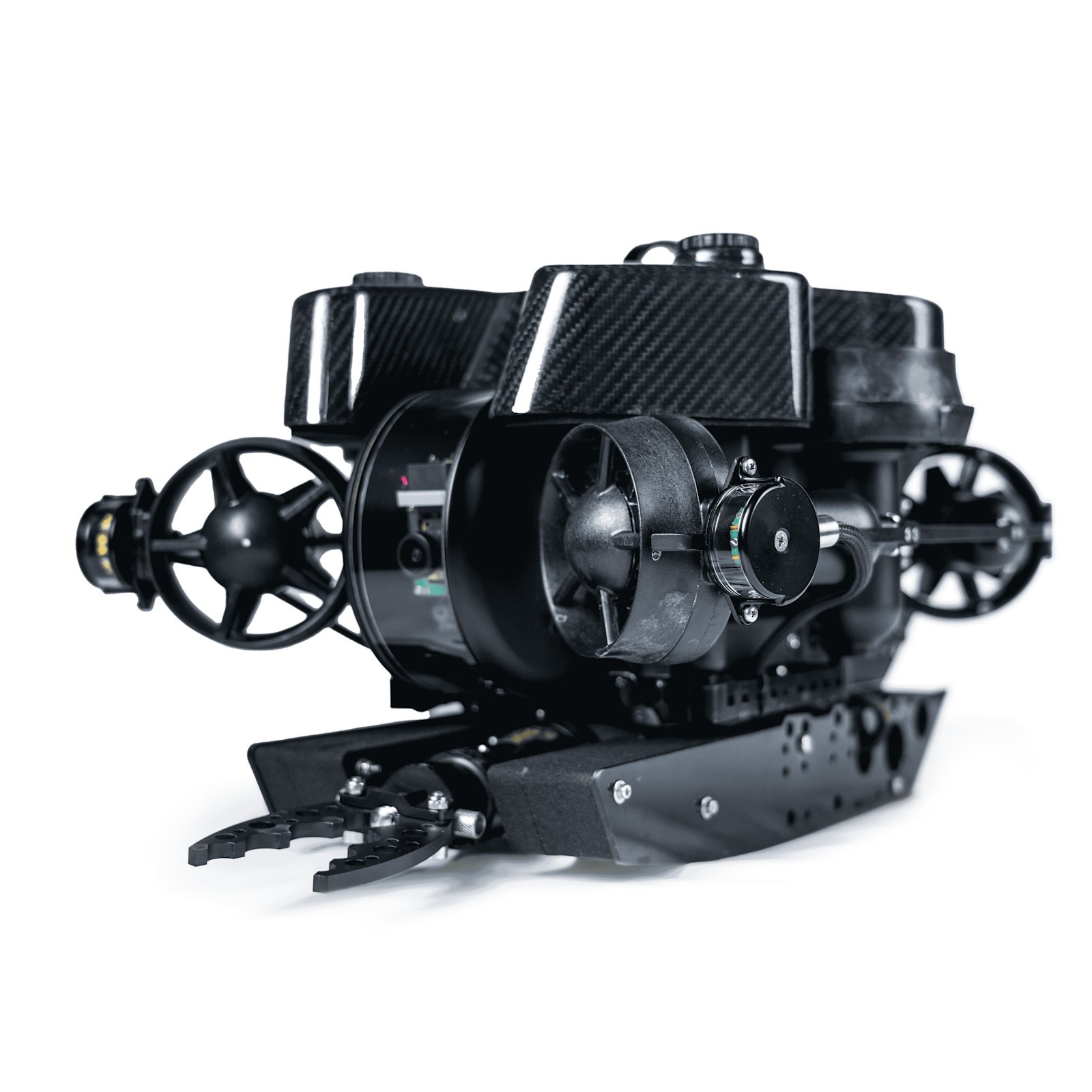

PHOTON is Deep Trekker's compact ROV and the most portable vehicle in its underwater line, designed for quick, simple inspections and surveys, especially in confined spaces such as tanks, hulls, infrastructure and aquaculture pens. It measures 332 x 228 x 481 mm, weighs 11.8 kg in air and is rated to 120 m, built from anodized aluminium, carbon fibre and buoyancy foam with sapphire and acrylic windows. Six independently controlled, infinitely variable, fully reversible thrusters give stable handling in tight spaces and current, and BRIDGE provides automatic station keeping, data capture and low-latency control. A 200-degree rotating enhanced 4K camera with automatic dewarping, colour correction, low-light performance and a turbidity filter mode captures clear images in murky water. The package includes LED floodlights, a swappable battery, a 100 m tether and reel, a BRIDGE controller and a Pelican case; tethers up to 300 m and a direct power kit are available.
FEATURES
- 332 x 228 x 481 mm (W x H x L)
- 11.8 kg in air
- depth rating 120 m (400 ft)
- 6 independently controlled, infinitely variable, 100% reversible thrusters
- 200 deg rotating enhanced 4K camera
- dewarping, colour correction, turbidity filtering
- Automatic station keeping (BRIDGE)
- low-latency control
- data capture and reporting
- 19.2 VDC system
- swappable battery
- optional 300 m direct power kit
- Tether up to 300 m (100 m tether and reel standard)
- Add-ons: manipulator bundle, DVL (Water Linked A50), Oculus imaging sonar
- Packages: BASE, EXPERT (with grabber)
- Pelican Air 1650 case
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 11.8 kg |
|---|---|
| Dimensions | L 481 mm × W 332 mm × H 228 mm |
| Mobility | |
| Movement Type | Aquatic |
| Environment | Confined spaces, hulls, infrastructure and aquaculture (to 120 m depth) |
| Sensing & Compute | |
| Sensors | 4K camera, optional DVL, optional imaging sonar |
| Connectivity | Tether up to 300 m; BRIDGE controller |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 11.8 kg |
|---|---|
| Dimensions | L 481 mm × W 332 mm × H 228 mm |
| Mobility | |
| Movement Type | Aquatic |
| Environment | Confined spaces, hulls, infrastructure and aquaculture (to 120 m depth) |
| Sensing & Compute | |
| Sensors | 4K camera, optional DVL, optional imaging sonar |
| Connectivity | Tether up to 300 m; BRIDGE controller |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the PHOTON?
PHOTON is Deep Trekker's compact ROV and the most portable vehicle in its underwater line, designed for quick, simple inspections and surveys, especially in confined spaces such as tanks, hulls, infrastructure and aquaculture pens.
Who makes the PHOTON?
The PHOTON is made by Deep Trekker, a robotics company based in Canada.
How much does the PHOTON cost?
Deep Trekker has not publicly announced pricing for the PHOTON. You can enquire through RobotAIGeek for current pricing.
What is the PHOTON used for?
The PHOTON is designed for surveying and inspection. It is used in defence, energy, government, and research settings.
How much does the PHOTON weigh?
The PHOTON weighs 11.8 kg.
