DESCRIPTION
REVOLUTION is a Service-Robots from Deep Trekker. It is built for Search-And-Rescue, Surveying, Inspection. Key figures: 33 kg.

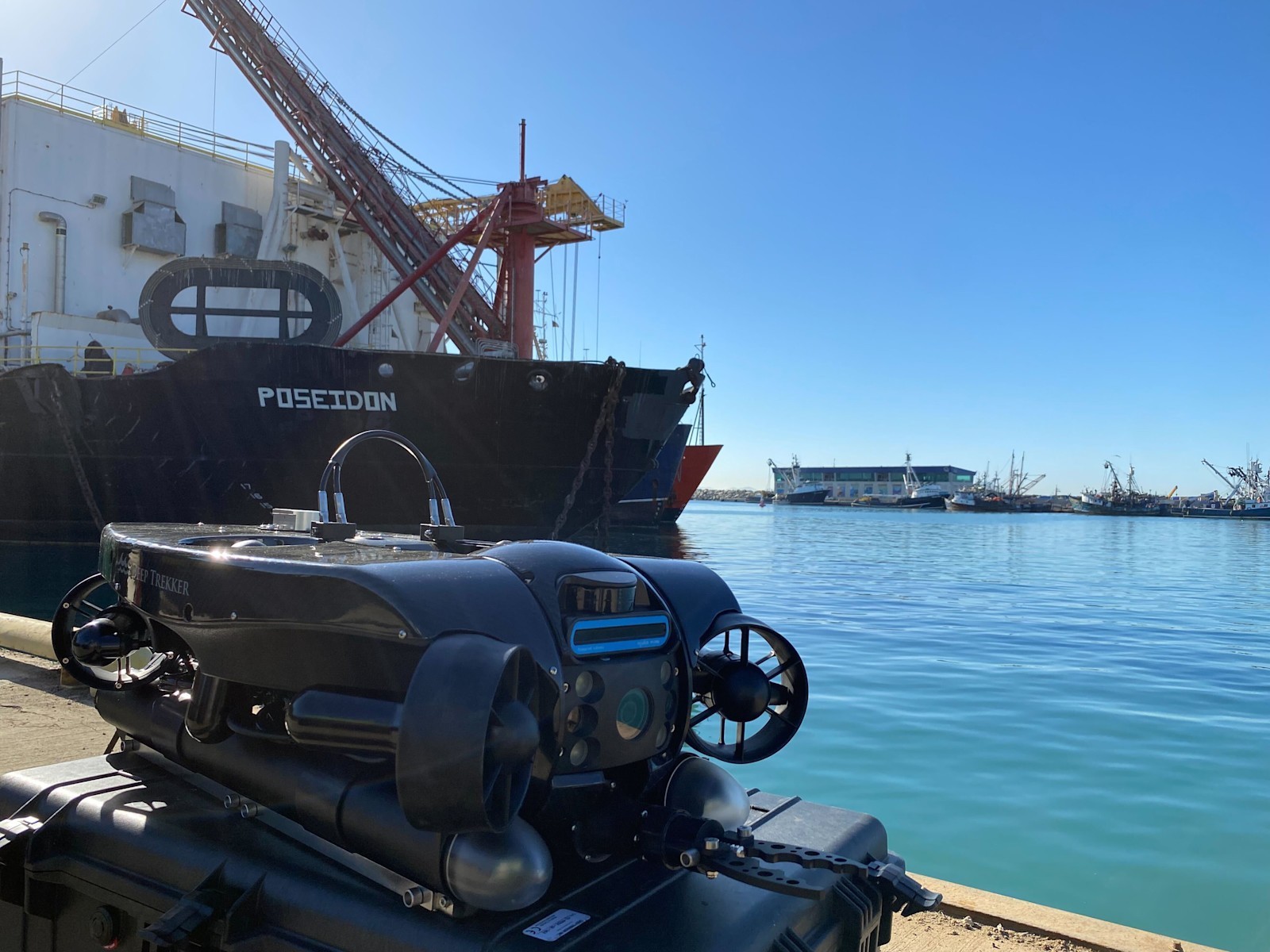

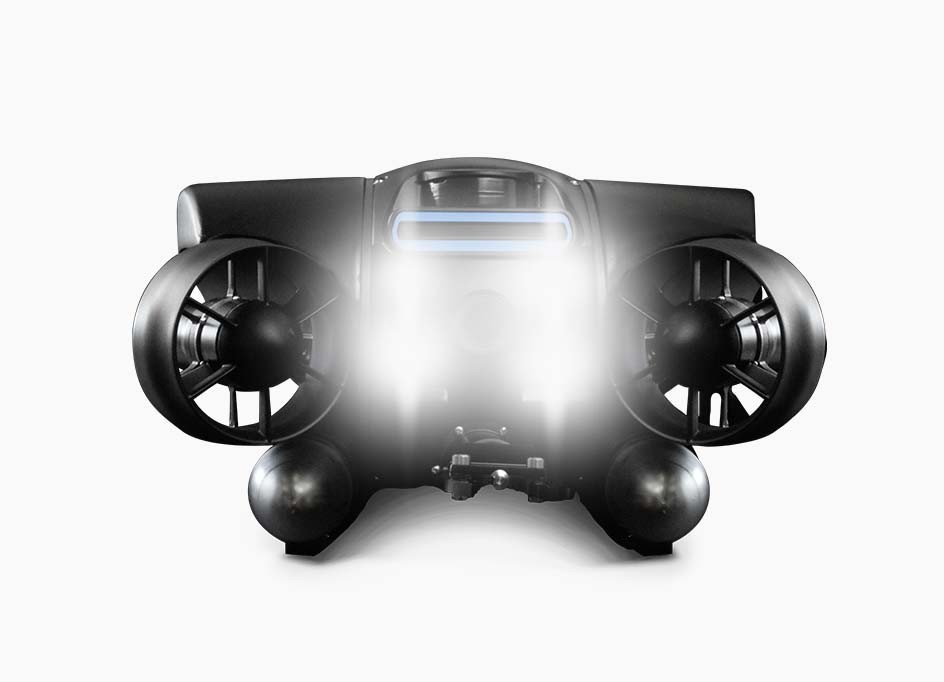

REVOLUTION is Deep Trekker's heavy-duty portable ROV, built for longer and more demanding missions with greater payload, stability and power. Its distinctive camera head rotates through 260 degrees and can carry an integrated sonar that turns with the camera, so pilots can inspect hulls, welds or targets all around without repositioning the vehicle and losing station in current. The vehicle measures 440 x 235 x 717 mm, weighs 33 kg in air and is rated to 305 m, with a stainless steel frame, anodized aluminium body, carbon fibre shell, sapphire and acrylic windows and magnetically coupled, sealed thrusters. A 19.2 V, 18 Ah LiFePO4 battery powers it, and copper tethers up to 300 m or fibre tethers up to 2 km are available. Through the BRIDGE architecture it combines real-time GPS tracking, USBL positioning and DVL with automatic station keeping, waypoint navigation, dead reckoning, mission planning and 3D modelling, and it takes manipulators, cavitation cleaners and multibeam sonars as add-ons. Packages are BASE, RECON and NAV.
FEATURES
- 260 deg rotating camera head
- optional integrated sonar rotates with the camera
- Enhanced 4K camera
- 8 MP stills
- high-efficiency LED lighting
- 440 x 235 x 717 mm (W x H x L)
- 33.0 kg in air
- depth rating 305 m (1,000 ft)
- Stainless steel frame, anodized aluminium body, carbon fibre shell
- sapphire and acrylic windows
- 19.2 VDC, 18 Ah LiFePO4 battery
- Tether up to 300 m copper or up to 2 km fibre
- ROV GPS, USBL and DVL positioning
- automatic station keeping
- dead reckoning
- waypoint mission planner
- Add-ons: manipulators (incl. Reach Alpha 5), Caviblaster, Oculus multibeam sonars, SensorPod
- Packages: BASE, RECON, NAV
- Pelican Air 1650 case
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 33 kg |
|---|---|
| Dimensions | L 717 mm × W 440 mm × H 235 mm |
| Mobility | |
| Movement Type | Aquatic |
| Environment | Ports, ship hulls, dams, intakes, offshore and inland waters (to 305 m depth) |
| Power | |
| Battery Life | 18 Ah LiFePO4 |
| Sensing & Compute | |
| Sensors | 4K camera, optional rotating sonar, GPS, USBL, DVL |
| Connectivity | Copper tether up to 300 m or fibre up to 2 km; BRIDGE controller |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 33 kg |
|---|---|
| Dimensions | L 717 mm × W 440 mm × H 235 mm |
| Mobility | |
| Movement Type | Aquatic |
| Environment | Ports, ship hulls, dams, intakes, offshore and inland waters (to 305 m depth) |
| Power | |
| Battery Life | 18 Ah LiFePO4 |
| Sensing & Compute | |
| Sensors | 4K camera, optional rotating sonar, GPS, USBL, DVL |
| Connectivity | Copper tether up to 300 m or fibre up to 2 km; BRIDGE controller |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the REVOLUTION?
REVOLUTION is Deep Trekker's heavy-duty portable ROV, built for longer and more demanding missions with greater payload, stability and power.
Who makes the REVOLUTION?
The REVOLUTION is made by Deep Trekker, a robotics company based in Canada.
How much does the REVOLUTION cost?
Deep Trekker has not publicly announced pricing for the REVOLUTION. You can enquire through RobotAIGeek for current pricing.
What is the REVOLUTION used for?
The REVOLUTION is designed for search-and-rescue, surveying, and inspection. It is used in defence, energy, government, and research settings.
How much does the REVOLUTION weigh?
The REVOLUTION weighs 33 kg.
