DESCRIPTION
Shark 400 is an Industrial-Robot from OKAGV. It is built for Intralogistics, Material-Handling, Transport. Key figures: 400 kg payload.

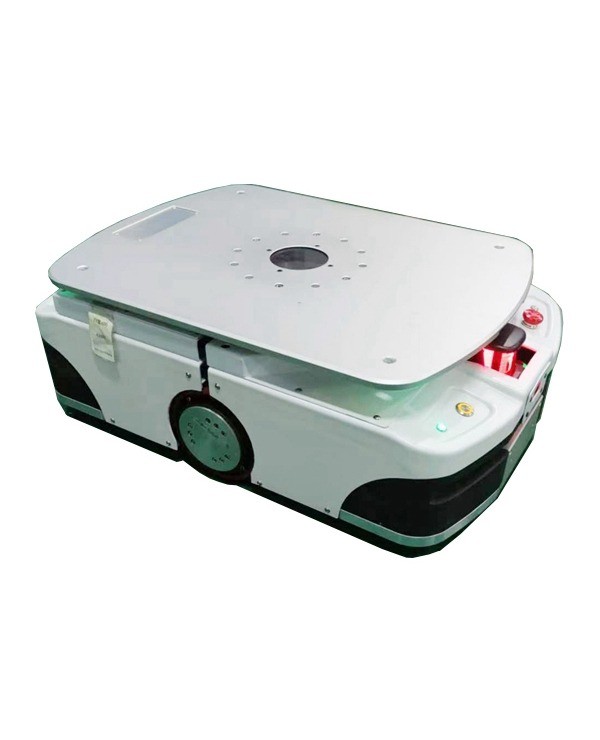

The Shark 400 is OKAGV's Shark-series differential-drive autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (60 (lift and rotate) mm lift) and carries up to 400 kg through factories and warehouses. It measures 780 x 500 x 270 mm, travels at up to 70 m/min, uses differential drive, and navigates by SLAM, QR code or laser, with +/-10 mm guidance and stopping accuracy. The smallest Shark, it can also rotate its load on the lift and is rated IP43.\nLike the rest of OKAGV's range it runs 24 hours on a lithium battery (DC 48 V lithium) rated for at least 2,000 cycles with automatic charging, climbs gradients up to 4 degrees, and is protected by a laser obstacle sensor with an adjustable 0-180 degree, 0-3 m field, front and rear bumpers and emergency stops; it is designed for indoor use at 0-40 C and a 10-year lifespan.
FEATURES
- Payload 400 kg
- lifting stroke 60 (lift and rotate) mm
- Size 780 x 500 x 270 mm
- Max speed 70 m/min
- Drive: differential drive
- Navigation: SLAM, QR code or laser
- Guidance and stop accuracy +/-10 mm
- Battery: DC 48 V lithium, >= 2,000 cycles
- automatic charging
- Gradeability <= 4 deg
- 24 h operation
- Safety: laser obstacle sensor (0-180 deg, 0-3 m), front/rear bumpers, e-stops
- Indoor 0-40 C, 40-80% RH
- designed lifespan 10 years
- IP43 protection
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 780 mm × W 500 mm × H 270 mm |
|---|---|
| Payload | 400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.2 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 780 mm × W 500 mm × H 270 mm |
|---|---|
| Payload | 400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.2 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Shark 400?
The Shark 400 is OKAGV's Shark-series differential-drive autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (60 (lift and rotate) mm lift) and carries up to 400 kg through factories and warehouses.
Who makes the Shark 400?
The Shark 400 is made by OKAGV, a robotics company based in China.
How much does the Shark 400 cost?
OKAGV has not publicly announced pricing for the Shark 400. You can enquire through RobotAIGeek for current pricing.
What is the Shark 400 used for?
The Shark 400 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Shark 400?
The Shark 400 has a payload capacity of 400 kg.
How fast is the Shark 400?
The Shark 400 can move at speeds of up to 4.2 km/h.
