proliner

Mariner 3S

Cleaning-Robots

SwitzerlandReleased

★Not rated yet

Compare

Sources:

mariner-3s.com

Industries:

Others Cleaning & Facilities Hotels

Uses:

Cleaning

Price:

Not announced

Model:

Mariner 3S proliner / proliner plus pool cleaning robot (pools over 25 m and spas)

Released:

2017

DESCRIPTION

proliner is a Cleaning-Robots from Mariner 3S. It is built for Cleaning. Key figures: 28 kg, released 2017.

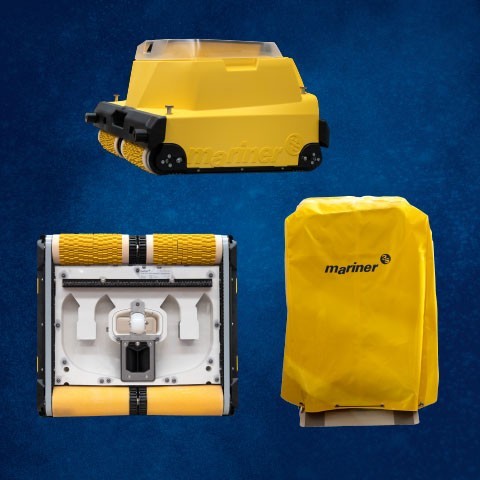

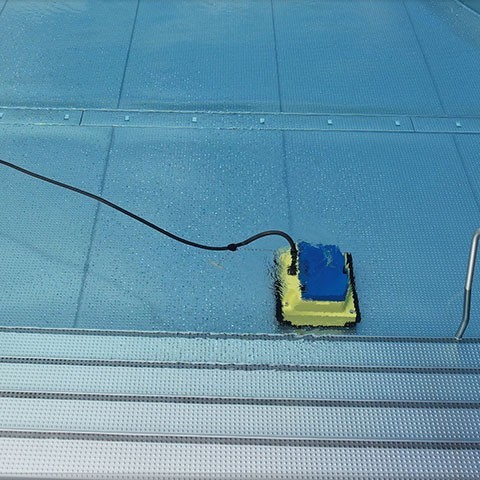

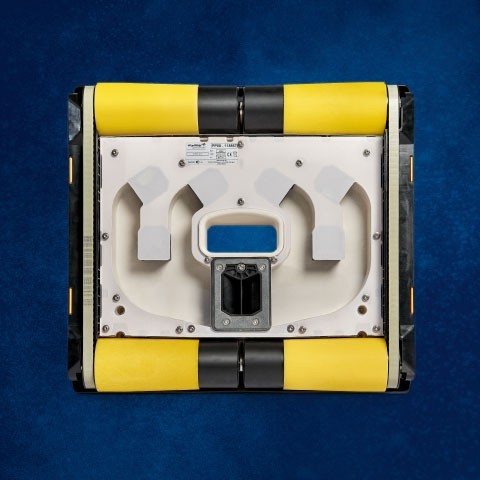

The proliner is Mariner 3S's pool-cleaning robot for pools longer than 25 m and for thermal spas. It combines strong suction - over 15 kg of negative pressure from an 850 l/min pump - with a large six-cartridge filter box, cleaning tracks up to 700 mm wide and following edges and corners, and aims to clean the whole pool in one cycle. Sensors help it detect the pool's features: it recognises obstacles, switches before leaving the water in beach-entry pools and can change direction before diving pits. The 28 kg robot climbs 28-degree slopes and travels at 7.5-18 m/min on a floating cable of up to 50 m, carried on a trolley with cable drum. The proliner plus adds the basic sensor for H, N and X lane patterns, Bluetooth for the app and a display remote, while the proliner runs pattern X; a large-filter option makes the robot self-surfacing.

FEATURES

Pools over 25 m long and thermal spas
minimum water depth 20-30 cm, maximum 10 m
Robot 55 x 60 x 37 cm (W x L x H), 28 kg

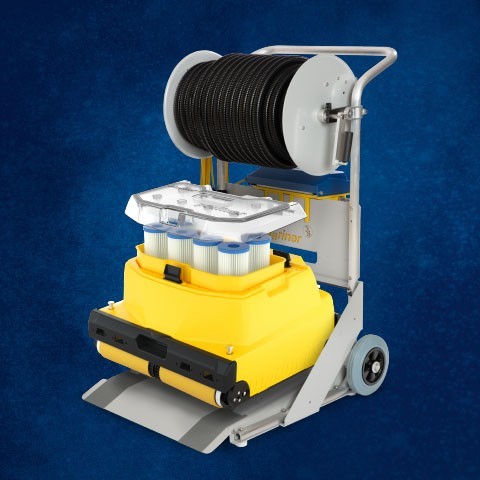

trolley with cable drum 49 kg
Cleaning width up to 700 mm
pump 850 l/min
suction over 15 kg

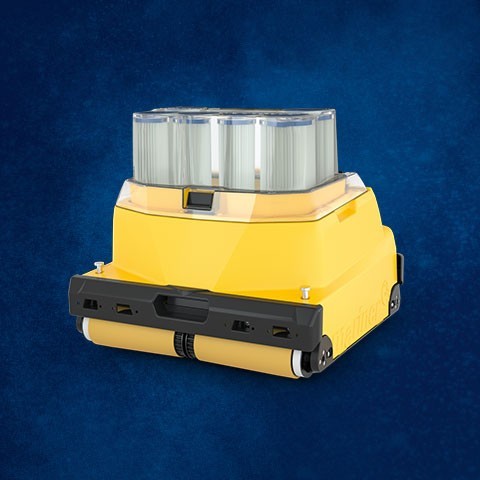

6 lamella filter cartridges (50/100/130 um)
optional large filters with self-surfacing
Travelling speed 7.5-18 m/min
climbs inclines up to 28 deg
Power 110-240 V AC, 0.5 kW
robot runs on 24 V DC
floating cable 30/40/50 m
proliner: drive pattern X
proliner plus: basic sensor, patterns H/N/X, obstacle bypass, section cleaning, Bluetooth, display remote
Manual control by radio remote or Mariner 3S app: forward, back, turn, spin on the spot, 3 speeds
keypad emergency operation
Automatic switch-over on wall contact, after a set distance and on inclines
start-delay timer
up to 4 stored programmes
Works in fresh, sea, thermal and brine water
water temperature 10-40 deg C
IP68

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	28 kg
Dimensions	L 600 mm × W 550 mm × H 370 mm
Mobility
Movement Type	Aquatic
Speed	1.08 km/h
Environment	Public and private swimming pools: indoor, outdoor, thermal and natural pools
Sensing & Compute
Sensors	drive-pattern / obstacle sensor (basic or high-tech, model dependent), incline detection
Connectivity	Radio remote control (869/433 MHz); Bluetooth app on plus / sensor models
