DESCRIPTION

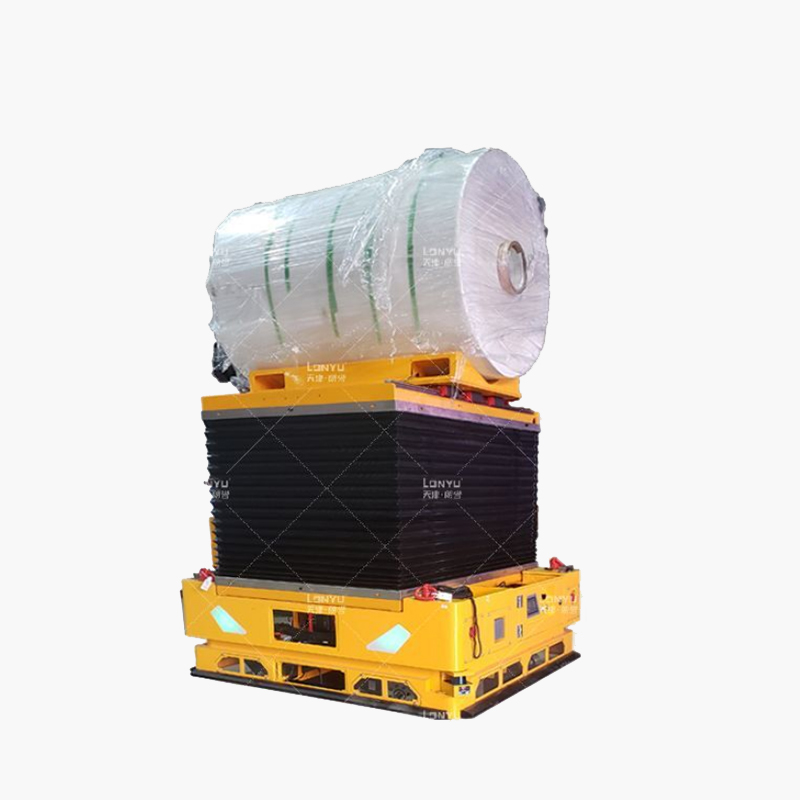

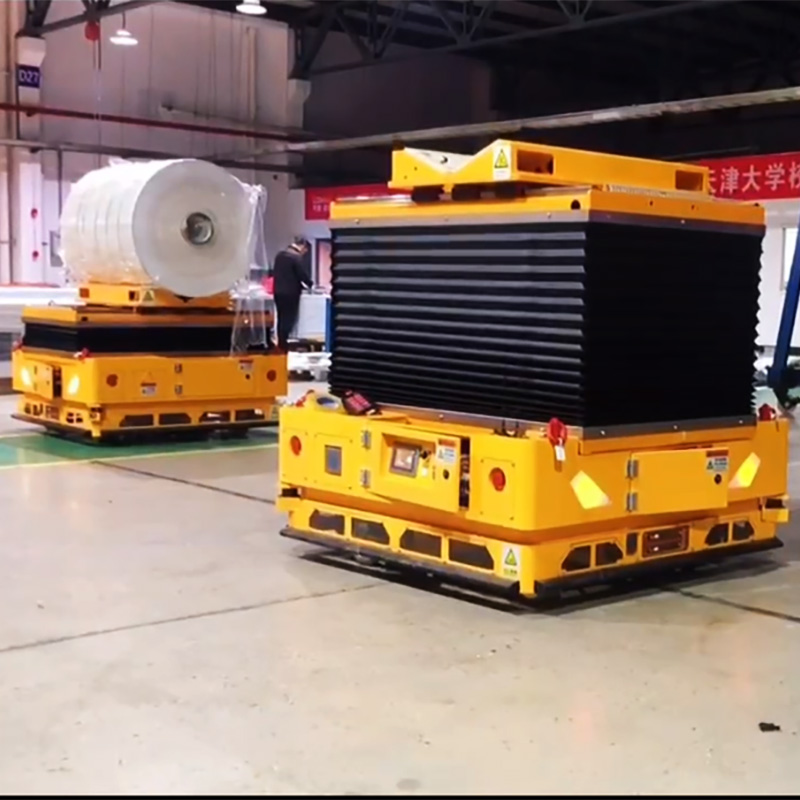

The Parallel Backpack Lifting AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 1 t. Lonyu designates it LY-AU-1T-1-4B. It has a body measuring 1300 mm long, 1250 mm wide and 801 mm high and an unladen mass of 1.2 t. Mechanically, the chassis uses plate; the drive layout is 4; suspension is spring. Drive is differential drive. It navigates by magnetic strip, is commanded by manual remote control + automatic operation. For power and motion, it runs on 40 Ah (customizable according to actual needs).
FEATURES
- Rated load: 1 t
- Unladen mass: 1.2 t
- Body dimensions: 1300 x 1250 x 801 mm
- Chassis: plate
- Drive wheels: 4
- Drive type: differential drive
- Navigation: magnetic strip
- Control: manual remote control + automatic operation
- Battery: 40 Ah (customizable according to actual needs)
- Voltage: 48V
- Suspension: spring
- Turning radius: 300
- Linkage mode: single vehicle
- Explosion-proof: no
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1200 kg |
|---|---|
| Dimensions | L 1.3 m × W 1.25 m × H 801 mm |
| Payload | 1000 kg |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1200 kg |
|---|---|
| Dimensions | L 1.3 m × W 1.25 m × H 801 mm |
| Payload | 1000 kg |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Parallel Backpack Lifting AGV?
The Parallel Backpack Lifting AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 1 t. Lonyu designates it LY-AU-1T-1-4B. It has a body measuring 1300 mm long, 1250 mm wide and 801 mm high and an unladen mass of 1.2 t. Mechanically, the chassis uses plate; the drive layout is 4; suspension is spring.
Who makes the Parallel Backpack Lifting AGV?
The Parallel Backpack Lifting AGV is made by Lonyu Agv.
How much does the Parallel Backpack Lifting AGV cost?
Lonyu Agv has not publicly announced pricing for the Parallel Backpack Lifting AGV. You can enquire through RobotAIGeek for current pricing.
What is the Parallel Backpack Lifting AGV used for?
The Parallel Backpack Lifting AGV is designed for transport.
What is the payload capacity of the Parallel Backpack Lifting AGV?
The Parallel Backpack Lifting AGV has a payload capacity of 1,000 kg.
How much does the Parallel Backpack Lifting AGV weigh?
The Parallel Backpack Lifting AGV weighs 1,200 kg.
