DESCRIPTION

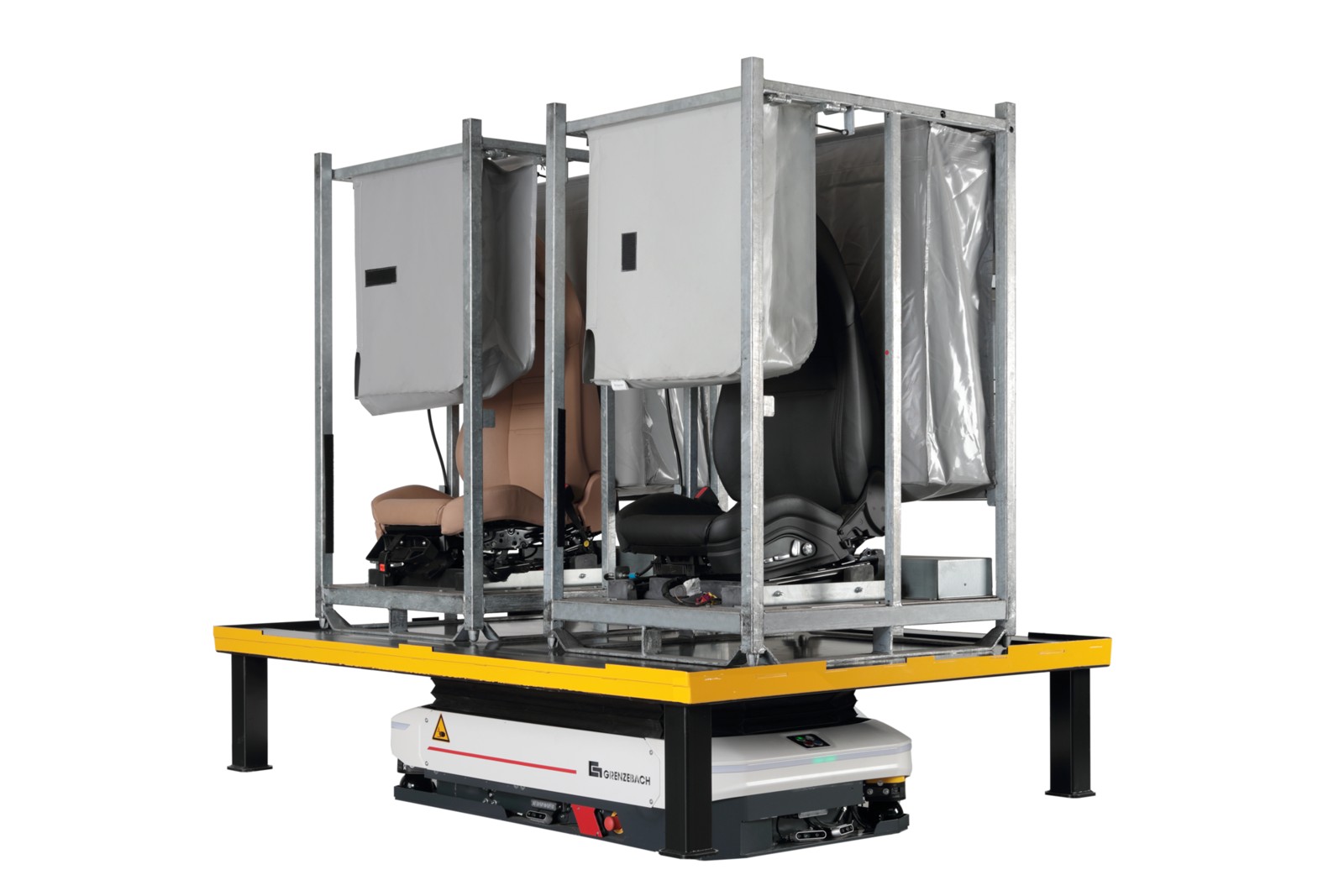

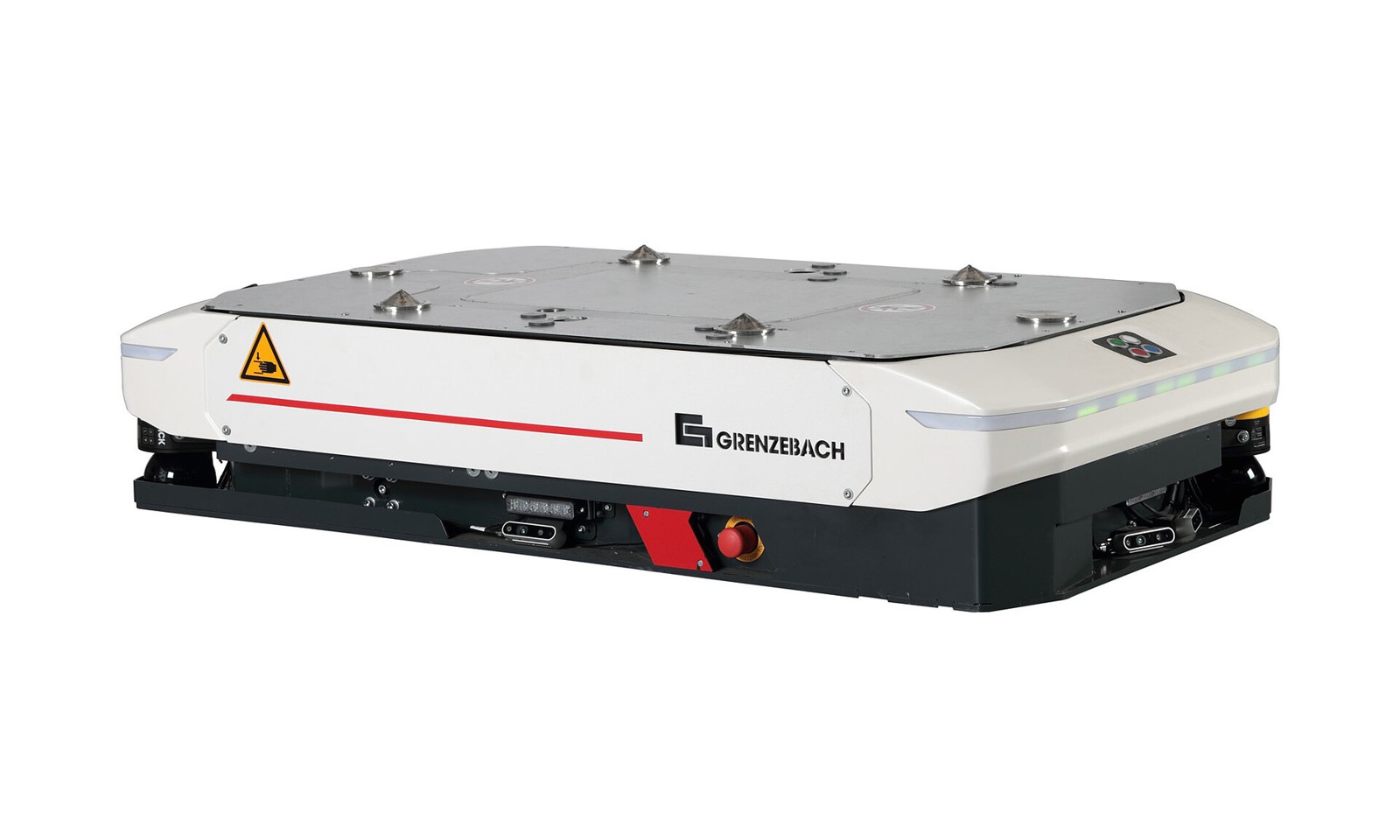

The OL1200S is Grenzebach's omnidirectional AGV, aimed at long goods carriers and large components — the loads that would otherwise need a tugger train. Being omnidirectional, it can move sideways and rotate in place, so it manoeuvres big carriers in spaces a conventional vehicle could not use. It takes 1,200 to 1,500 kg and travels at up to 1.66 m/s, a little slower than its stablemates, with the same plus or minus 15 mm typical positioning, two certified safety laser scanners and free contour navigation. Like the L1200S it is 330 mm tall for under-ride work, on a 1,450 by 760 mm footprint. Grenzebach's pitch is that replacing a tugger train with these raises throughput while cutting the peripheral equipment a train needs.
FEATURES
- Omnidirectional AGV for long goods carriers and large components
- Payload 1,200 to 1,500 kg
- Dimensions 1,450 x 760 x 330 mm (L/W/H)
- Speed up to 1.66 m/s
- Omnidirectional travel — moves sideways and rotates on the spot
- Positioning accuracy approx. +/-15 mm typical
- Two certified safety laser scanners
- Free contour navigation
- Positioned as a replacement for conventional tugger trains
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.45 m × W 760 mm × H 330 mm |
|---|---|
| Payload | 1500 kg |
| Repeatability | ±15 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.66 km/h |
| Environment | Indoor factory and warehouse floors in shared traffic; no floor infrastructure required |
| Sensing & Compute | |
| Sensors | two certified safety laser scanners, contour-navigation sensing |
| Software / AI | Grenzebach fleet manager, warehouse control system, security manager and statistics |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.45 m × W 760 mm × H 330 mm |
|---|---|
| Payload | 1500 kg |
| Repeatability | ±15 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.66 km/h |
| Environment | Indoor factory and warehouse floors in shared traffic; no floor infrastructure required |
| Sensing & Compute | |
| Sensors | two certified safety laser scanners, contour-navigation sensing |
| Software / AI | Grenzebach fleet manager, warehouse control system, security manager and statistics |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Grenzebach OL1200S?
The OL1200S is Grenzebach's omnidirectional AGV, aimed at long goods carriers and large components — the loads that would otherwise need a tugger train. Being omnidirectional, it can move sideways and rotate in place, so it manoeuvres big carriers in spaces a conventional vehicle could not use.
Who makes the Grenzebach OL1200S?
The Grenzebach OL1200S is made by Grenzebach, a robotics company based in Germany.
How much does the Grenzebach OL1200S cost?
Grenzebach has not publicly announced pricing for the Grenzebach OL1200S. You can enquire through RobotAIGeek for current pricing.
What is the Grenzebach OL1200S used for?
The Grenzebach OL1200S is designed for intralogistics, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the Grenzebach OL1200S?
The Grenzebach OL1200S has a payload capacity of 1,500 kg.
How fast is the Grenzebach OL1200S?
The Grenzebach OL1200S can move at speeds of up to 1.66 km/h.
