DESCRIPTION
MOBOT AGV FlatRunner MW Light is an Industrial-Robot from WObit. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 445 kg, 720 min runtime, 1000 kg payload.

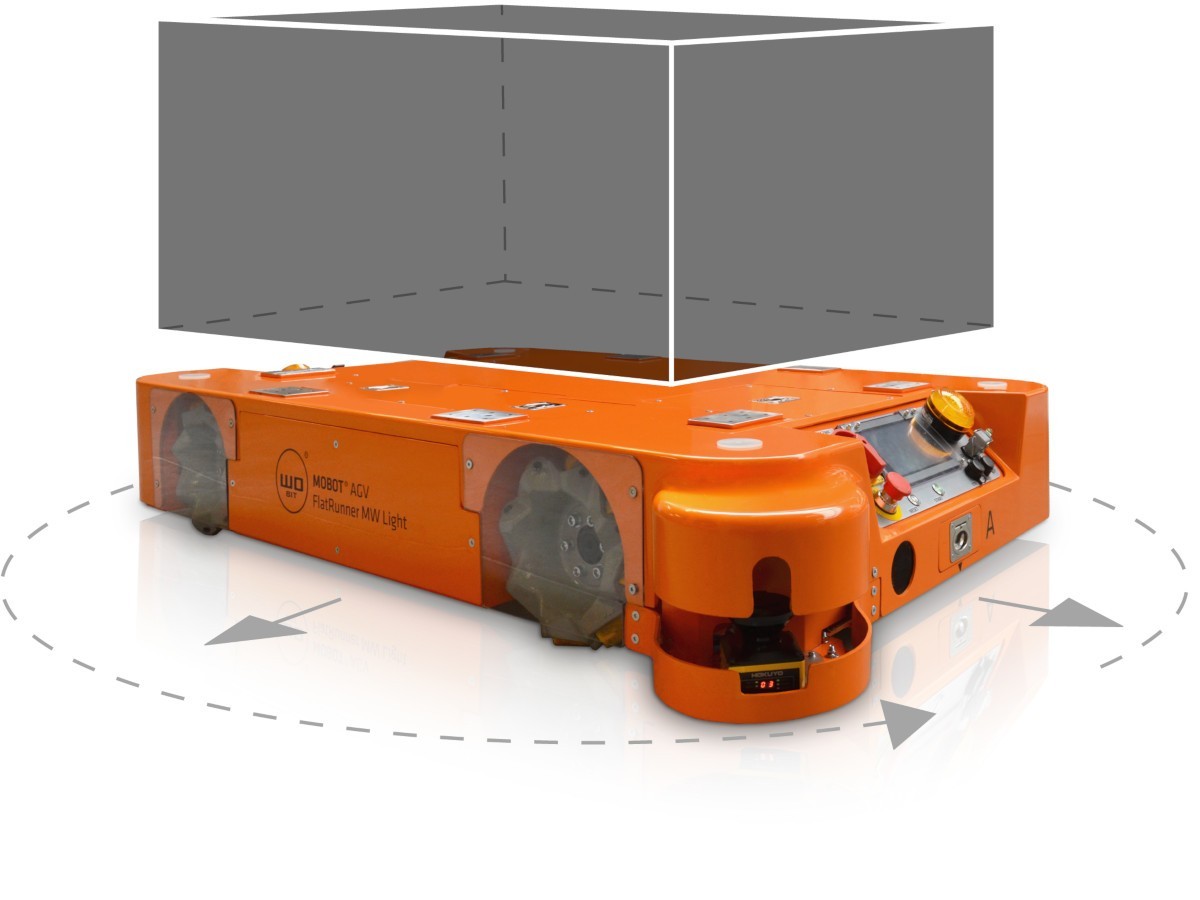

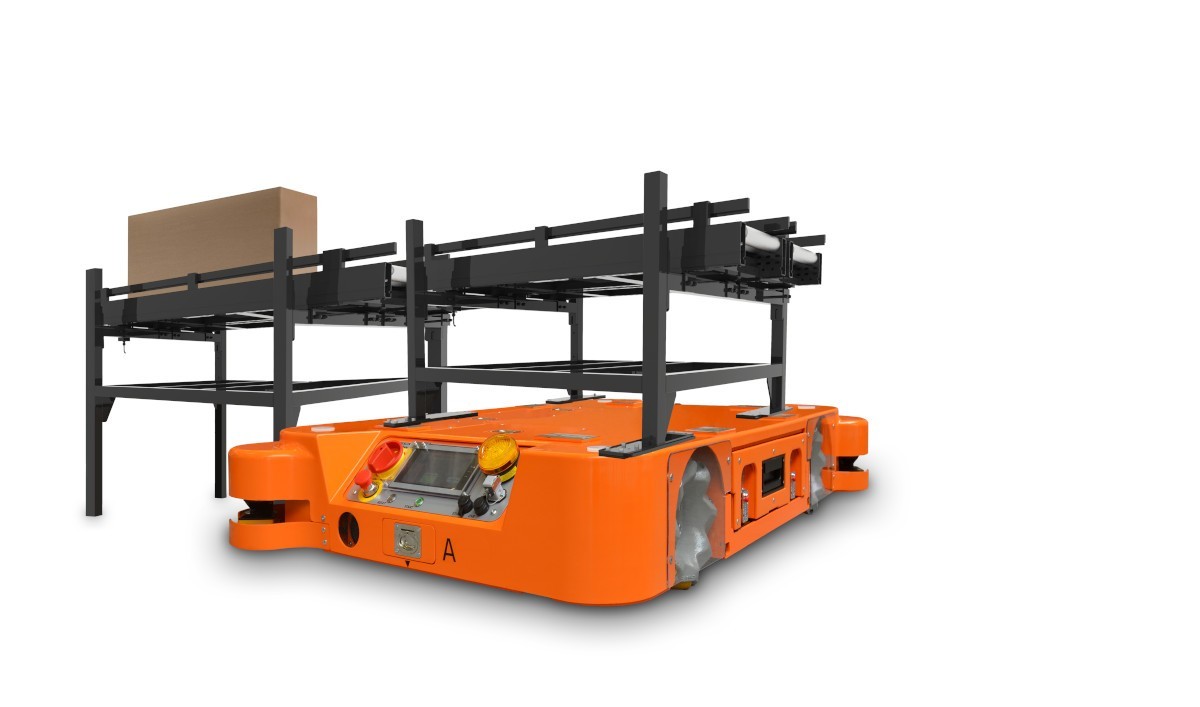

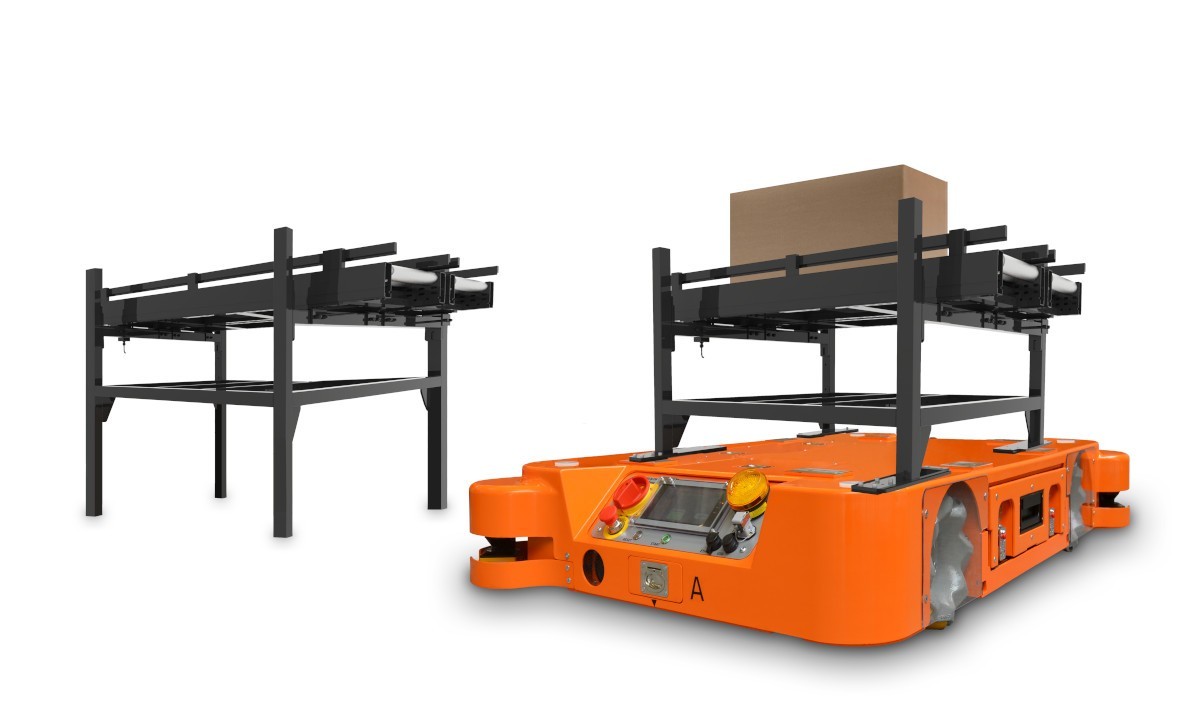

The MOBOT AGV FlatRunner MW Light is a mid-size omnidirectional platform in WObit's MW range: four brushless servo motors drive 253 mm Mecanum wheels, and it carries up to 1,000 kg bolted to its top or raised 70 mm by its lifting system. Two 158 Ah/12 V traction batteries in quick-change cassettes give about 12 hours at full load and recharge in about 2.5 hours, with an optional charging station and automatic contact charging. It navigates with WObit's LMS laser mapping system - building a map of its surroundings and locating itself on characteristic points such as walls, without reflectors or floor markings - combined with a vision system that can follow a line and position the robot precisely; missions are configured in the MOBOT RoutePlanner software and dispatched from a control terminal over 2.4 GHz Wi-Fi, with Ethernet/Modbus TCP and other I/O for integration. Safety laser scanners make it slow down or stop for obstacles, and a touch operator panel, emergency stops and light and sound signals support work alongside people. It drives at up to 3.5 km/h with 2.4 kW of nominal power, has emergency stops and reset buttons on both sides, is rated IP30 for 5-45 C, measures 1,800 x 1,147 x 270 mm and weighs about 445 kg. WObit also uses it as the base of its MOBOT Xarm mobile manipulator.
FEATURES
- Payload 1,000 kg
- 70 mm lifting system
- Omnidirectional Mecanum drive (4 servo motors, 253 mm wheels)
- Max speed 3.5 km/h
- 2.4 kW
- 2x 158 Ah/12 V batteries
- about 12 h
- charge about 2.5 h
- LMS laser navigation + vision line tracking
- 2x 2D safety laser scanners
- IP30
- 5-45 C
- Size 1,800 x 1,147 x 270 mm
- about 445 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 445 kg |
|---|---|
| Dimensions | L 1.8 m × W 1.15 m × H 270 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.49 km/h |
| Environment | Indoor plants; 5-45 C, 5°C to 45°C |
| Power | |
| Battery Life | 720 min |
| Sensing & Compute | |
| Sensors | 2x 2D safety laser scanner, 2x vision line-tracking system |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 445 kg |
|---|---|
| Dimensions | L 1.8 m × W 1.15 m × H 270 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.49 km/h |
| Environment | Indoor plants; 5-45 C, 5°C to 45°C |
| Power | |
| Battery Life | 720 min |
| Sensing & Compute | |
| Sensors | 2x 2D safety laser scanner, 2x vision line-tracking system |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOBOT AGV FlatRunner MW Light?
The MOBOT AGV FlatRunner MW Light is a mid-size omnidirectional platform in WObit's MW range: four brushless servo motors drive 253 mm Mecanum wheels, and it carries up to 1,000 kg bolted to its top or raised 70 mm by its lifting system.
Who makes the MOBOT AGV FlatRunner MW Light?
The MOBOT AGV FlatRunner MW Light is made by WObit, a robotics company based in Poland.
How much does the MOBOT AGV FlatRunner MW Light cost?
WObit has not publicly announced pricing for the MOBOT AGV FlatRunner MW Light. You can enquire through RobotAIGeek for current pricing.
What is the MOBOT AGV FlatRunner MW Light used for?
The MOBOT AGV FlatRunner MW Light is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MOBOT AGV FlatRunner MW Light?
The MOBOT AGV FlatRunner MW Light has a payload capacity of 1,000 kg.
How much does the MOBOT AGV FlatRunner MW Light weigh?
The MOBOT AGV FlatRunner MW Light weighs 445 kg.
How fast is the MOBOT AGV FlatRunner MW Light?
The MOBOT AGV FlatRunner MW Light can move at speeds of up to 3.49 km/h.
What is the battery life of the MOBOT AGV FlatRunner MW Light?
The MOBOT AGV FlatRunner MW Light runs for about 720 minutes on a charge.
