DESCRIPTION
MAD-3000S is an Industrial-Robot from Mad Automation. It is built for Intralogistics, Material-Handling, Transport. Key figures: 1200 kg payload.

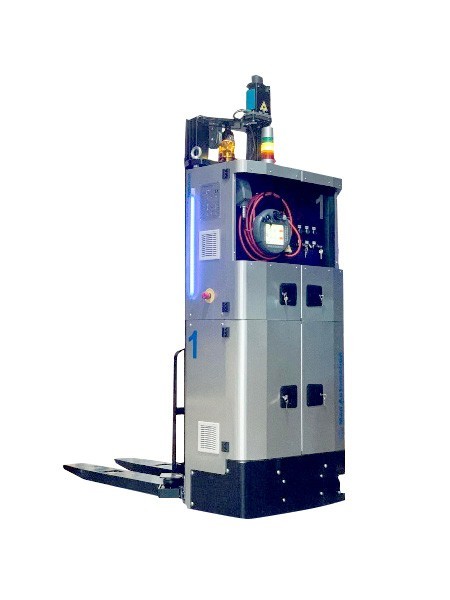

The MAD-3000S is the compact fork shuttle in Mad Automation's range of laser-guided vehicles (LGVs), built to move pallets of any type between production, end-of-line machines and the warehouse without operators. Its oil-hydraulic forks lift up to 3,000 mm at 0.2 m/s and carry up to 1,200 kg, transporting one pallet or two stacked. Like the rest of the range it navigates by laser with no floor infrastructure, so routes can be changed at any time in Mad's PC route-design software, and it travels at up to 1.5 m/s with positioning precision of up to 5 mm. The vehicles are built from off-the-shelf components so customers can service them, run 24 hours a day on lithium, sealed or traditional lead-acid batteries with automatic battery swapping or opportunity charging, and are supervised by Mad's in-house WMS and Brain 4.0 software alongside its palletisers and conveyors.
FEATURES
- Oil-hydraulic lift
- maximum lift height 3,000 mm
- fork lifting speed 0.2 m/s
- Maximum capacity 1,200 kg
- Pallets carried: 1 single or 2 overlapped
- any pallet type
- Laser navigation with no floor infrastructure
- routes edited in Mad PC CAD software
- Maximum speed 1.5 m/s
- positioning precision up to 5 mm
- Built from off-the-shelf electronic and mechanical components for easy servicing
- Navigation and management software developed in-house
- 24-hour operation
- Batteries: lithium, sealed pure lead or traditional lead-acid
- automatic battery swap or opportunity charging
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1200 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories, end-of-line areas and warehouses |
| Sensing & Compute | |
| Sensors | laser navigation scanner, safety laser scanners |
| Connectivity | Wireless link to Mad WMS / Brain 4.0 supervision |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1200 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories, end-of-line areas and warehouses |
| Sensing & Compute | |
| Sensors | laser navigation scanner, safety laser scanners |
| Connectivity | Wireless link to Mad WMS / Brain 4.0 supervision |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MAD-3000S?
The MAD-3000S is the compact fork shuttle in Mad Automation's range of laser-guided vehicles (LGVs), built to move pallets of any type between production, end-of-line machines and the warehouse without operators.
Who makes the MAD-3000S?
The MAD-3000S is made by Mad Automation, a robotics company based in Italy.
How much does the MAD-3000S cost?
Mad Automation has not publicly announced pricing for the MAD-3000S. You can enquire through RobotAIGeek for current pricing.
What is the MAD-3000S used for?
The MAD-3000S is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MAD-3000S?
The MAD-3000S has a payload capacity of 1,200 kg.
How fast is the MAD-3000S?
The MAD-3000S can move at speeds of up to 5.4 km/h.
