DESCRIPTION
MAD-3000 is an Industrial-Robot from Mad Automation. It is built for Intralogistics, Material-Handling, Transport. Key figures: 1700 kg payload.

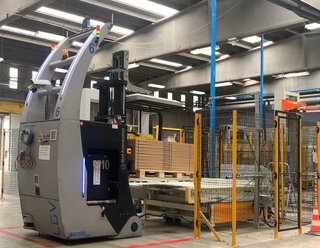

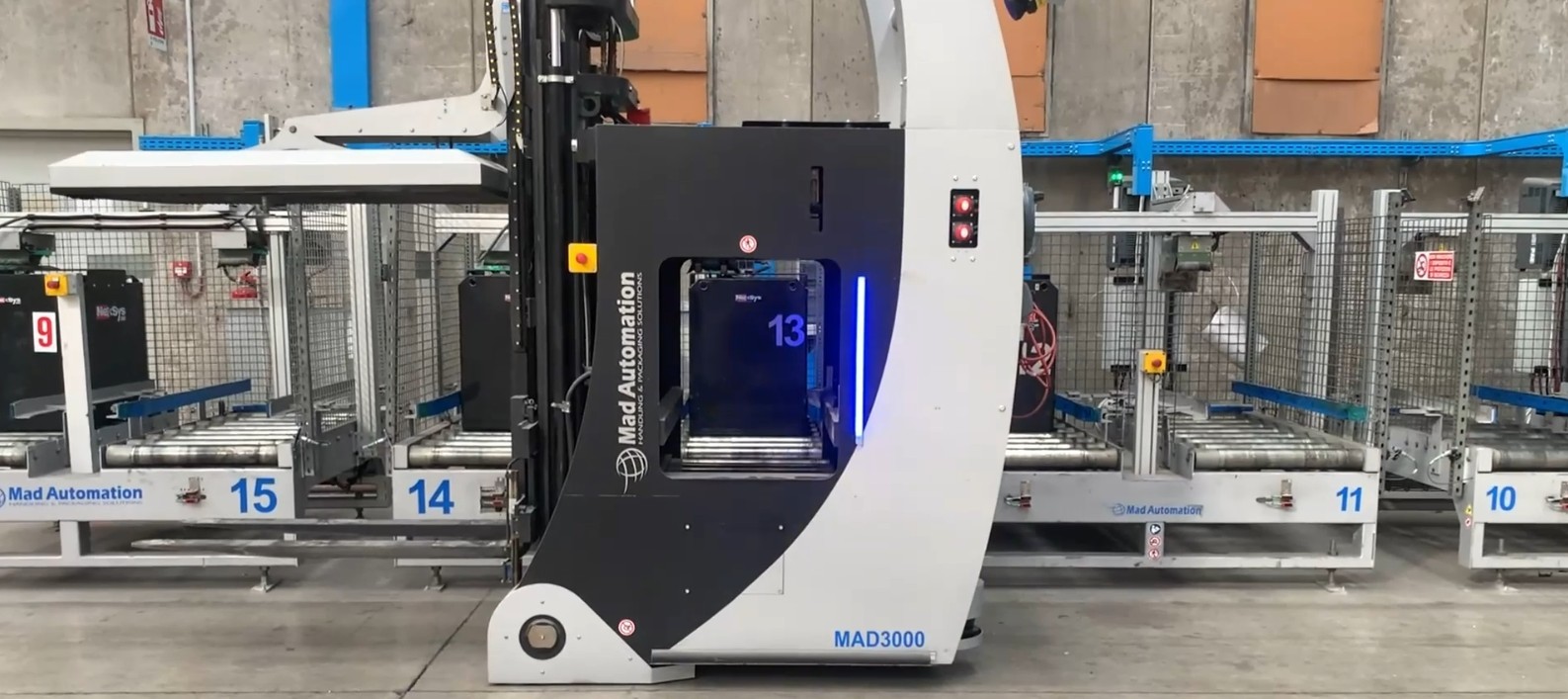

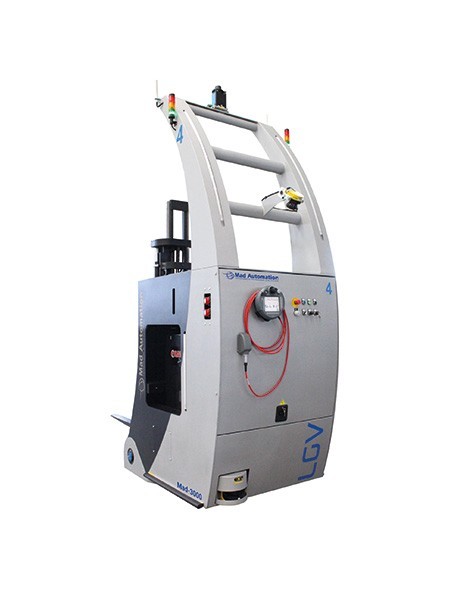

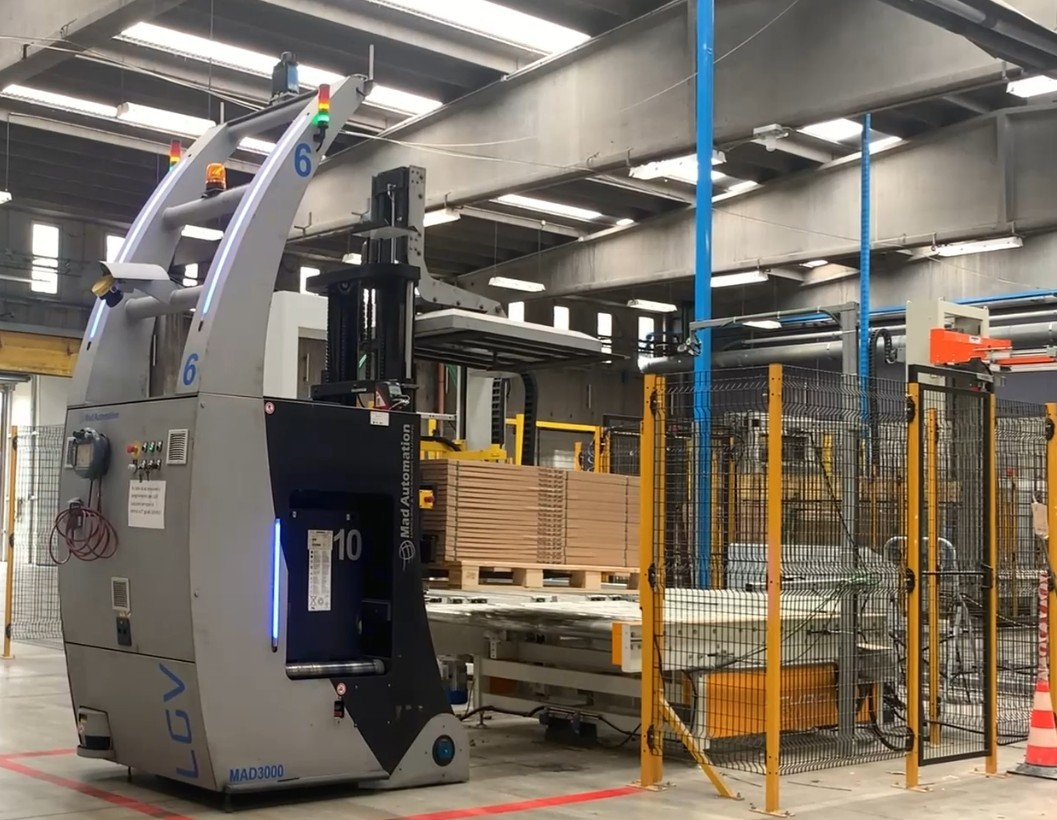

The MAD-3000 is a laser-guided fork shuttle from Mad Automation for end-of-line and warehouse pallet transport. Its oil-hydraulic forks lift up to 3,600 mm at 0.2 m/s and carry up to 1,700 kg, handling one pallet, two overlapped or side by side, or four overlapped or side by side, of any pallet type. Like the rest of the range it navigates by laser with no floor infrastructure, so routes can be changed at any time in Mad's PC route-design software, and it travels at up to 1.5 m/s with positioning precision of up to 5 mm. The vehicles are built from off-the-shelf components so customers can service them, run 24 hours a day on lithium, sealed or traditional lead-acid batteries with automatic battery swapping or opportunity charging, and are supervised by Mad's in-house WMS and Brain 4.0 software alongside its palletisers and conveyors.
FEATURES
- Oil-hydraulic lift
- maximum lift height 3,600 mm
- fork lifting speed 0.2 m/s
- Maximum capacity 1,700 kg
- Pallets carried: 1 single, 2 or 4 overlapped or side by side
- any pallet type
- Laser navigation with no floor infrastructure
- routes edited in Mad PC CAD software
- Maximum speed 1.5 m/s
- positioning precision up to 5 mm
- Built from off-the-shelf electronic and mechanical components for easy servicing
- Navigation and management software developed in-house
- 24-hour operation
- Batteries: lithium, sealed pure lead or traditional lead-acid
- automatic battery swap or opportunity charging
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1700 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories, end-of-line areas and warehouses |
| Sensing & Compute | |
| Sensors | laser navigation scanner, safety laser scanners |
| Connectivity | Wireless link to Mad WMS / Brain 4.0 supervision |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1700 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories, end-of-line areas and warehouses |
| Sensing & Compute | |
| Sensors | laser navigation scanner, safety laser scanners |
| Connectivity | Wireless link to Mad WMS / Brain 4.0 supervision |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MAD-3000?
The MAD-3000 is a laser-guided fork shuttle from Mad Automation for end-of-line and warehouse pallet transport. Its oil-hydraulic forks lift up to 3,600 mm at 0.2 m/s and carry up to 1,700 kg, handling one pallet, two overlapped or side by side, or four overlapped or side by side, of any pallet type.
Who makes the MAD-3000?
The MAD-3000 is made by Mad Automation, a robotics company based in Italy.
How much does the MAD-3000 cost?
Mad Automation has not publicly announced pricing for the MAD-3000. You can enquire through RobotAIGeek for current pricing.
What is the MAD-3000 used for?
The MAD-3000 is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MAD-3000?
The MAD-3000 has a payload capacity of 1,700 kg.
How fast is the MAD-3000?
The MAD-3000 can move at speeds of up to 5.4 km/h.
