DESCRIPTION

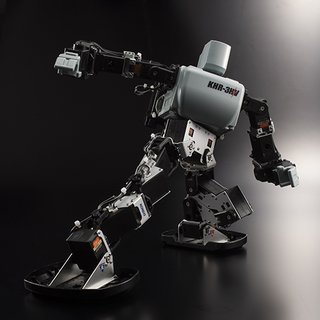

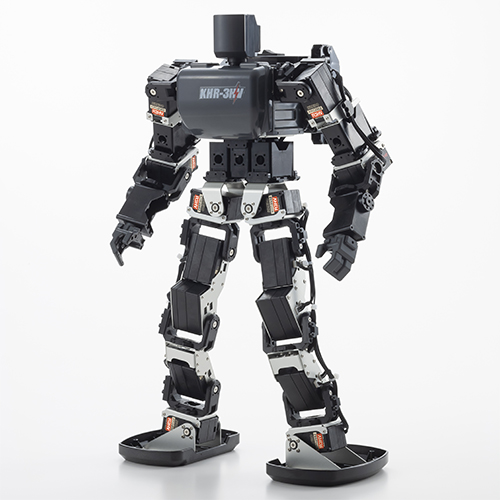

The KHR-3HV Ver.3.1 LiFe Battery Set is the standard build of Kondo Kagaku's KHR-3HV, a bipedal humanoid robot sold as a self-assembly kit for hobbyists, education and research. This configuration ships with 17 KRS-2552R3HV ICS servo motors, giving the robot 17 degrees of freedom across its legs, arms and head. The kit contains a lightweight anodized aluminium alloy frame, reinforced resin servo arms, the RCB-4HV control board, a ROBO Power Cell F3-850 lithium-iron (Li-Fe) battery, a G3 CHARGER, a Dual USB Adapter HS, black servo leads and assorted hardware. Assembled, the robot stands 401.05 mm high by 194.4 mm wide by 129 mm deep and weighs approximately 1,500 g. Motion authoring and control run on Windows 10 or 11 over a USB 1.1/2.0 port, with assembly instructions and software supplied as downloads. Made in Japan. A 22-axis version adding five further servos is sold separately.
FEATURES
- 17 KRS-2552R3HV ICS servo motors (17 degrees of freedom)
- RCB-4HV control board
- Lightweight anodized aluminium alloy frame
- Reinforced resin servo arms
- ROBO Power Cell F3-850 lithium-iron (Li-Fe) battery
- G3 CHARGER included
- Dual USB Adapter HS included
- Assembled size 401.05 (H) x 194.4 (W) x 129 (D) mm
- Approximately 1,500 g assembled
- Windows 10/11 software over USB 1.1/2.0
- Supplied as a self-assembly kit, made in Japan
TECHNICAL SPECIFICATIONS
| Mobility | |
| Movement Type | Bipedal |
|---|---|
TECHNICAL SPECIFICATIONS
| Mobility | |
| Movement Type | Bipedal |
|---|---|
Images
martti
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the KHR-3HV Ver.3.1 LiFe Battery Set?
The KHR-3HV Ver.3.1 LiFe Battery Set is the standard build of Kondo Kagaku's KHR-3HV, a bipedal humanoid robot sold as a self-assembly kit for hobbyists, education and research. This configuration ships with 17 KRS-2552R3HV ICS servo motors, giving the robot 17 degrees of freedom across its legs, arms and head.
Who makes the KHR-3HV Ver.3.1 LiFe Battery Set?
The KHR-3HV Ver.3.1 LiFe Battery Set is made by Kondo Kagaku, a robotics company based in Japan.
How much does the KHR-3HV Ver.3.1 LiFe Battery Set cost?
Kondo Kagaku has not publicly announced pricing for the KHR-3HV Ver.3.1 LiFe Battery Set. You can enquire through RobotAIGeek for current pricing.
What is the KHR-3HV Ver.3.1 LiFe Battery Set used for?
The KHR-3HV Ver.3.1 LiFe Battery Set is designed for research and education. It is used in research and education settings.
