GP-20E Collaborative Palletizing Robot Workstation
DESCRIPTION
GP-20E Collaborative Palletizing Robot Workstation is a Collaborative-Robot from Shandong Gojon Precision Technology. It is built for Material-Handling, palletizing. Key figures: 400 kg, 20 kg payload, 1880 mm reach.

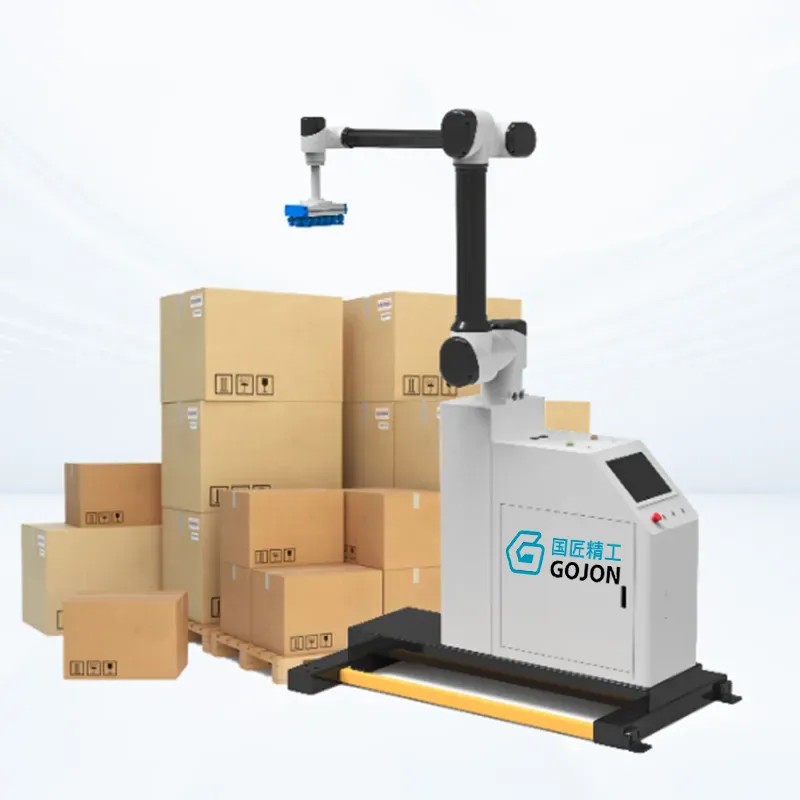

The GOJON GP-20E is the entry model of GOJON's fence-free collaborative palletizing workstations: a five-servo collaborative robot arm on a compact, movable cabinet with a vacuum suction gripper that stacks cartons onto two manually placed pallets, one on each side. It carries 20 kg with a 1880 mm reach, palletizes 8-12 times per minute to a maximum height of 2000 mm on pallets up to 1300 x 1200 mm, and stops on contact using force and torque sensing. Operators set up stacking patterns on a 15-inch touchscreen or by leading the arm by hand.
FEATURES
- Collaborative palletizing robot that works without safety fencing (subject to risk assessment)
- Force and torque sensing stops the arm on contact with people
- Payload 20 kg, reach 1880 mm
- Palletizing speed 8-12 cycles per minute depending on the product
- Maximum palletizing height 2000 mm
- Maximum pallet size 1300 x 1200 mm, pallets placed manually left and right
- Dual-station layout: two box types (A and B) palletized at once
- Stores up to 60 palletizing recipes
- Graphical programming on a 15-inch touchscreen, plus hand-guided teaching

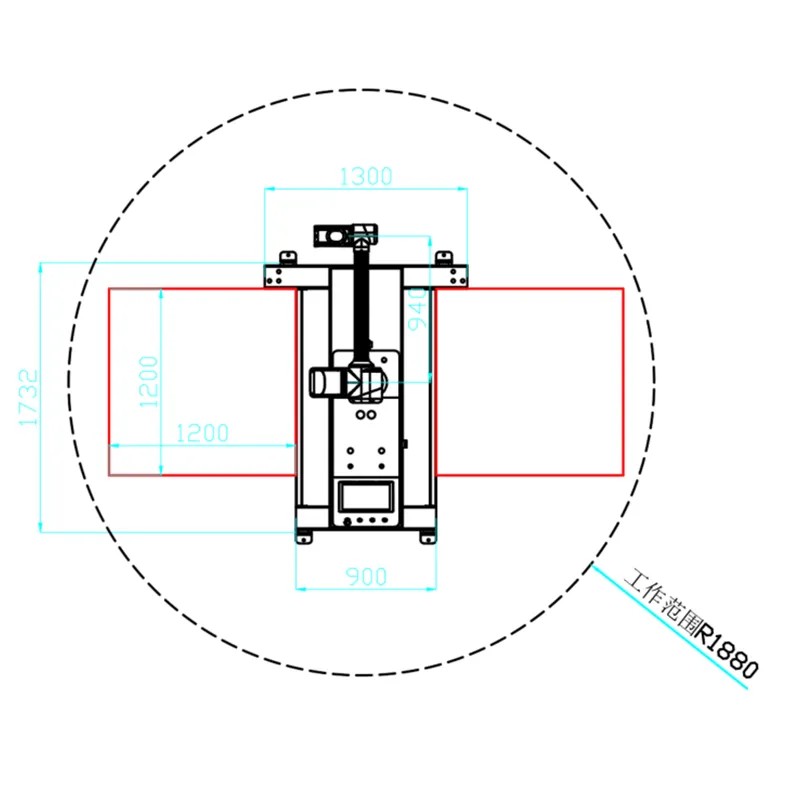

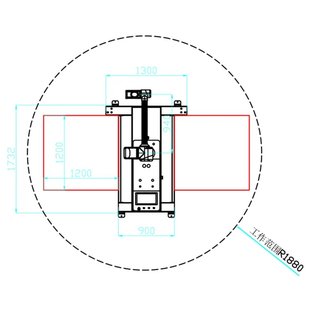

- Main unit 1732 x 1300 x 2644 mm, about 400 kg, movable between lines
- Power 3.0 kW, 220 V 50 Hz supply, 24 V DC control
- Compressed air 0.5-0.7 MPa, 240-460 L/min
- Noise below 80 dB
- KEBA robot controller, 5 Inovance servo motors, SICK photoelectric incoming-box inspection, Soonture vacuum suction cup
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 400 kg |
|---|---|
| Dimensions | L 1.73 m × W 1.3 m × H 2.64 m |
| Payload | 20 kg |
| Reach | 1.88 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line area; compressed air 0.5-0.7 MPa (240-460 L/min); noise below 80 dB |
| Actuators | Collaborative robot arm driven by 5 Inovance servo motors; pneumatic vacuum suction gripper |
| Sensing & Compute | |
| Sensors | Force and torque sensors for contact stop, SICK photoelectric switch for incoming-box inspection |
| Software / AI | Graphical programming on a 15-inch touchscreen; hand-guided teach; up to 60 palletizing recipes |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 400 kg |
|---|---|
| Dimensions | L 1.73 m × W 1.3 m × H 2.64 m |
| Payload | 20 kg |
| Reach | 1.88 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line area; compressed air 0.5-0.7 MPa (240-460 L/min); noise below 80 dB |
| Actuators | Collaborative robot arm driven by 5 Inovance servo motors; pneumatic vacuum suction gripper |
| Sensing & Compute | |
| Sensors | Force and torque sensors for contact stop, SICK photoelectric switch for incoming-box inspection |
| Software / AI | Graphical programming on a 15-inch touchscreen; hand-guided teach; up to 60 palletizing recipes |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the GP-20E Collaborative Palletizing Robot Workstation?
The GOJON GP-20E is the entry model of GOJON's fence-free collaborative palletizing workstations: a five-servo collaborative robot arm on a compact, movable cabinet with a vacuum suction gripper that stacks cartons onto two manually placed pallets, one on each side.
Who makes the GP-20E Collaborative Palletizing Robot Workstation?
The GP-20E Collaborative Palletizing Robot Workstation is made by Shandong Gojon Precision Technology, a robotics company based in China.
How much does the GP-20E Collaborative Palletizing Robot Workstation cost?
Shandong Gojon Precision Technology has not publicly announced pricing for the GP-20E Collaborative Palletizing Robot Workstation. You can enquire through RobotAIGeek for current pricing.
What is the GP-20E Collaborative Palletizing Robot Workstation used for?
The GP-20E Collaborative Palletizing Robot Workstation is designed for material-handling and palletizing. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the GP-20E Collaborative Palletizing Robot Workstation?
The GP-20E Collaborative Palletizing Robot Workstation has a payload capacity of 20 kg and a reach of 1.88 m.
How much does the GP-20E Collaborative Palletizing Robot Workstation weigh?
The GP-20E Collaborative Palletizing Robot Workstation weighs 400 kg.
