DESCRIPTION
P20-R2000 is a Collaborative-Robot from Integra Robotics. It is built for Assembly, Machine-Tending, Material-Handling. Key figures: 60 kg, 20 kg payload, 2000 mm reach, 6 degrees of freedom.

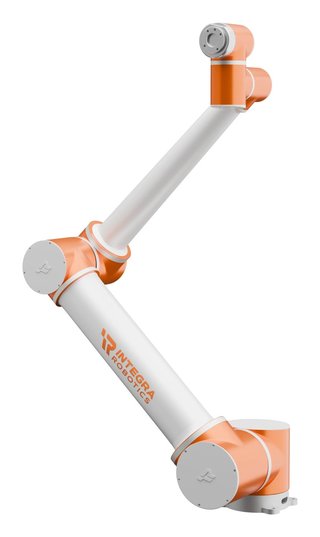

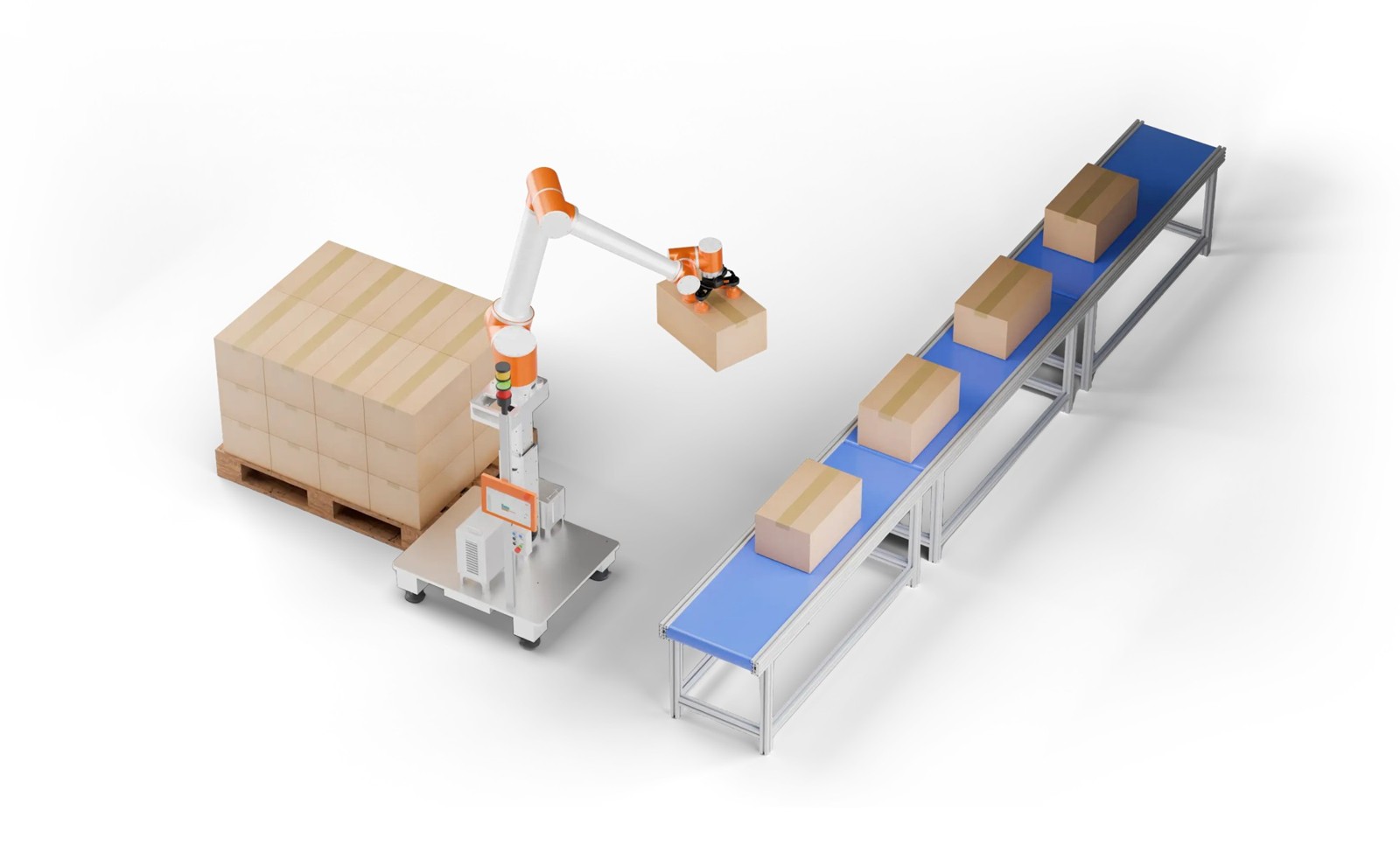

The P20-R2000 is the largest six-axis collaborative robot in Integra Robotics' P series. It is built for heavy, long-reach jobs such as palletising, large-part assembly, end-of-line packing, machine tending and transfers between several stations in a cell. The arm carries up to 20 kg and reaches 2,000 mm, with a repeatability of 0.1 mm. It weighs 60 kg, draws about 500 W on average and up to 3,000 W at peak, and has 19-bit joint encoders, friction brakes, an IP54 rating and an Ethernet communication bus. It can be mounted on the floor, a wall or the ceiling. Like the rest of the series it is designed in Bengaluru and sold with a first-year maintenance contract, local spare parts and technical support, with vision systems, end-of-arm tools and teach pendants available as accessories.
FEATURES
- 6-axis collaborative robot arm
- Payload 20 kg
- Reach 2,000 mm
- Repeatability +/-0.1 mm
- Arm weight 60 kg
- Average power 500 W
- peak power 3,000 W
- IP54
- 19-bit encoder resolution
- Ethernet communication bus
- Friction brakes
- Mounting in any orientation: floor, wall or ceiling
- Applications: palletising, machine tending, large-part assembly, end-of-line packaging, in-cell transfer
- Accessories: vision systems, end-of-arm tooling, teach pendants
- Custom reach and payload variants on request
- Sold with a first-year annual maintenance contract (AMC), spare parts stocked in Bengaluru and 12x6 technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 60 kg |
|---|---|
| Payload | 20 kg |
| Reach | 2 m |
| Repeatability | ±0.1 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Indoor factory and end-of-line packing areas, IP54 |
| Sensing & Compute | |
| Connectivity | Ethernet |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 60 kg |
|---|---|
| Payload | 20 kg |
| Reach | 2 m |
| Repeatability | ±0.1 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Indoor factory and end-of-line packing areas, IP54 |
| Sensing & Compute | |
| Connectivity | Ethernet |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the P20-R2000?
The P20-R2000 is the largest six-axis collaborative robot in Integra Robotics' P series. It is built for heavy, long-reach jobs such as palletising, large-part assembly, end-of-line packing, machine tending and transfers between several stations in a cell.
Who makes the P20-R2000?
The P20-R2000 is made by Integra Robotics, a robotics company based in India.
How much does the P20-R2000 cost?
Integra Robotics has not publicly announced pricing for the P20-R2000. You can enquire through RobotAIGeek for current pricing.
What is the P20-R2000 used for?
The P20-R2000 is designed for assembly, machine-tending, material-handling, and packaging. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the P20-R2000?
The P20-R2000 has a payload capacity of 20 kg and a reach of 2 m.
How much does the P20-R2000 weigh?
The P20-R2000 weighs 60 kg.
How many degrees of freedom does the P20-R2000 have?
The P20-R2000 has 6 degrees of freedom.
