DESCRIPTION
Combining wheels and four legs in a compact form, the Genisom L1-W brings industry-grade capability to small-scale environments as GENISOM AI's debut quadruped.
FEATURES
- Intelligent motion control is achieved in one step, effortlessly handling complex terrains.
- Small, Robust, Industry-grade High Toughness, Anti-External Interference >5.5m/s Extreme Sprint Speed Narrow Space, Flexible Passage Maximum obstacle height 65cm 16cm continuous climbing stair height Tough enough to withstand manufacturing!
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 22 kg |
|---|---|
| Dimensions | L 630 mm × W 440 mm × H 455 mm |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Speed | 13.32 km/h |
| Manipulation | Mid |
| Environment | Outdoor all-weather; slope 30° standard, up to 40° max; stair climbing >16 cm; max obstacle 60 cm, IP54, 0°C to 40°C |
| Power | |
| Battery Life | 1-2 h |
| Sensing & Compute | |
| Connectivity | Ethernet, USB, SBUS, UART, Power (7 interfaces) |
Videos
GENISOM M1 Pro & M1 Ultra | Quadruped Robots That Follow, Understand, and Operate Anywhere
martti
GENISOM M1 | Built for Real-World Embodied AI Applications
martti

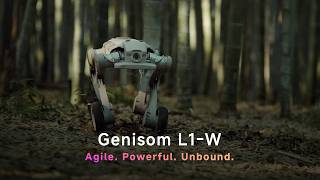

GENISOM L1-W｜World's First Ultra-Compact Industrial-Grade Wheeled Quadruped Robot
marttiTECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 22 kg |
|---|---|
| Dimensions | L 630 mm × W 440 mm × H 455 mm |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Speed | 13.32 km/h |
| Manipulation | Mid |
| Environment | Outdoor all-weather; slope 30° standard, up to 40° max; stair climbing >16 cm; max obstacle 60 cm, IP54, 0°C to 40°C |
| Power | |
| Battery Life | 1-2 h |
| Sensing & Compute | |
| Connectivity | Ethernet, USB, SBUS, UART, Power (7 interfaces) |
Images
martti
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
GENISOM M1 Pro & M1 Ultra | Quadruped Robots That Follow, Understand, and Operate Anywhere
marttiGENISOM M1 | Built for Real-World Embodied AI Applications
marttiGENISOM L1-W｜World's First Ultra-Compact Industrial-Grade Wheeled Quadruped Robot
marttiROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Genisom L1-W?
Combining wheels and four legs in a compact form, the Genisom L1-W brings industry-grade capability to small-scale environments as GENISOM AI's debut quadruped.
Who makes the Genisom L1-W?
The Genisom L1-W is made by Genisom AI (智身科技), a robotics company based in China.
How much does the Genisom L1-W cost?
Genisom AI (智身科技) has not publicly announced pricing for the Genisom L1-W. You can enquire through RobotAIGeek for current pricing.
What is the Genisom L1-W used for?
The Genisom L1-W is designed for exploration, research, inspection, and industrial inspection. It is used in research and manufacturing settings.
What is the payload capacity of the Genisom L1-W?
The Genisom L1-W has a payload capacity of 10 kg.
How much does the Genisom L1-W weigh?
The Genisom L1-W weighs 22 kg.
How fast is the Genisom L1-W?
The Genisom L1-W can move at speeds of up to 13.32 km/h.
What is the battery life of the Genisom L1-W?
The Genisom L1-W runs for 1-2 h on a charge.
